64 12 730 Removing and installing/replacing temperature sensor for latent heat accumulator

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove A-pillar trim from right footwell and right rocker strip.

Remove front right rocker panel strip,

refer to 51 47 000 REMOVING AND INSTALLING / REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP .

Fold back carpet in footwell. Pull off connectors. Unfasten temperature sensor.

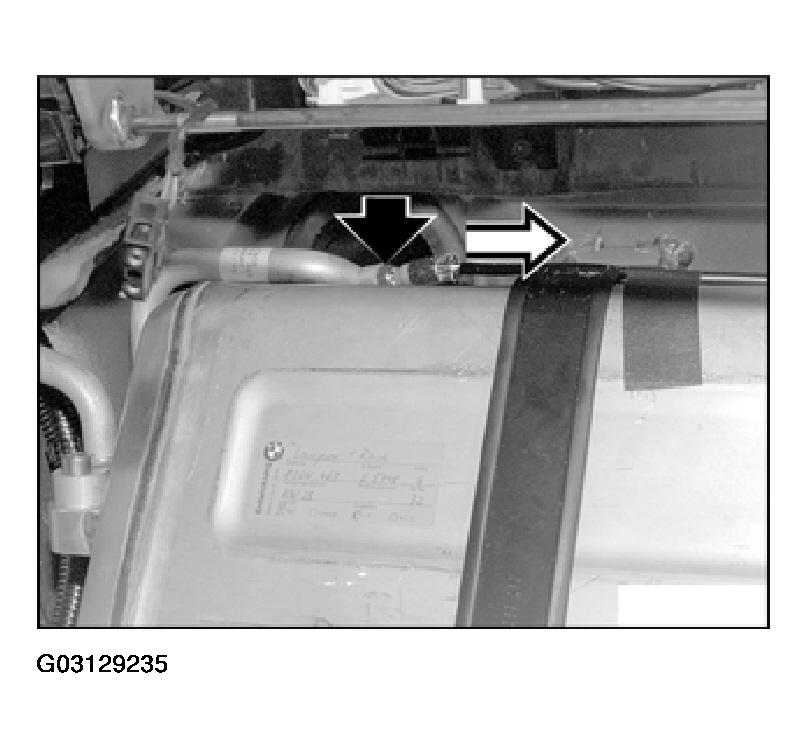

Fig 1: Releasing Temperature Sensor
G03129235Courtesy of BMW OF NORTH AMERICA, INC.
