64 12 500 Removing and installing / replacing complete heater (Thermo Top S)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left wheel. See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL

Remove trim panel from front left wheelhouse. See 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER

CAUTION: Allow engine to cool down.

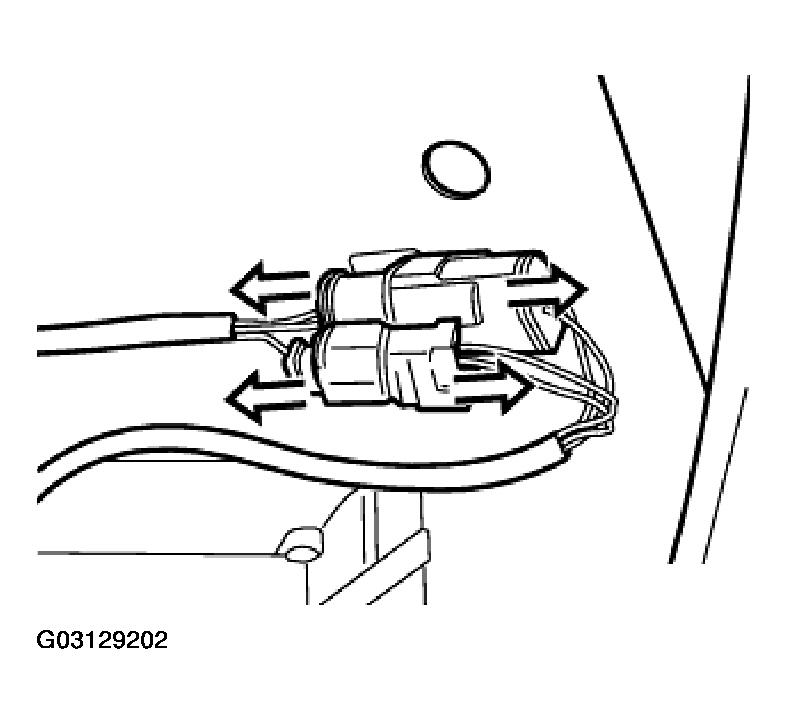

Unfasten plug connection.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

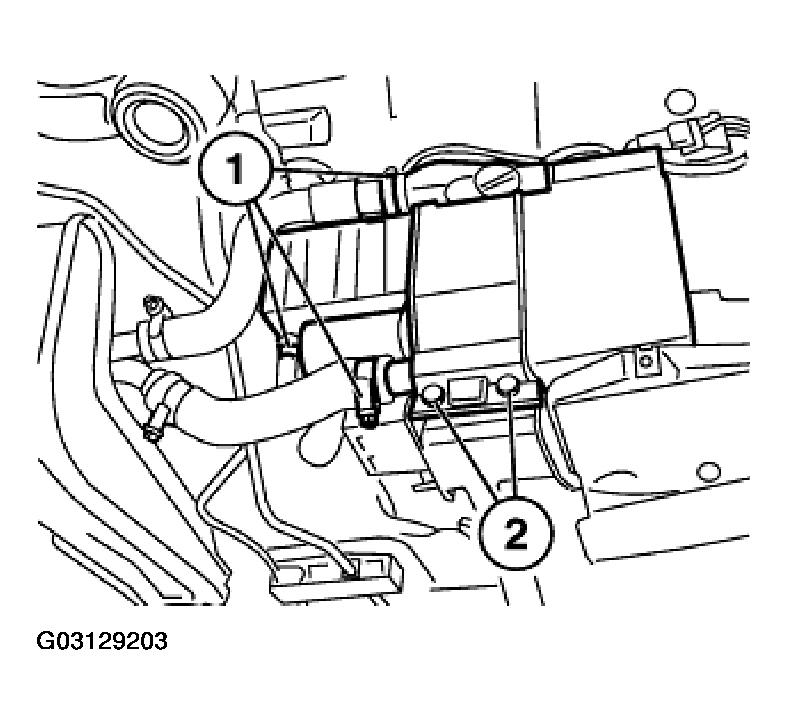

Close off supply and return hose as well as fuel hose with hose clips. Release hose clips (1) and disconnect hoses. Release screws (2) and remove heater.

Fig 2: Releasing Hose Clip & Disconnecting Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

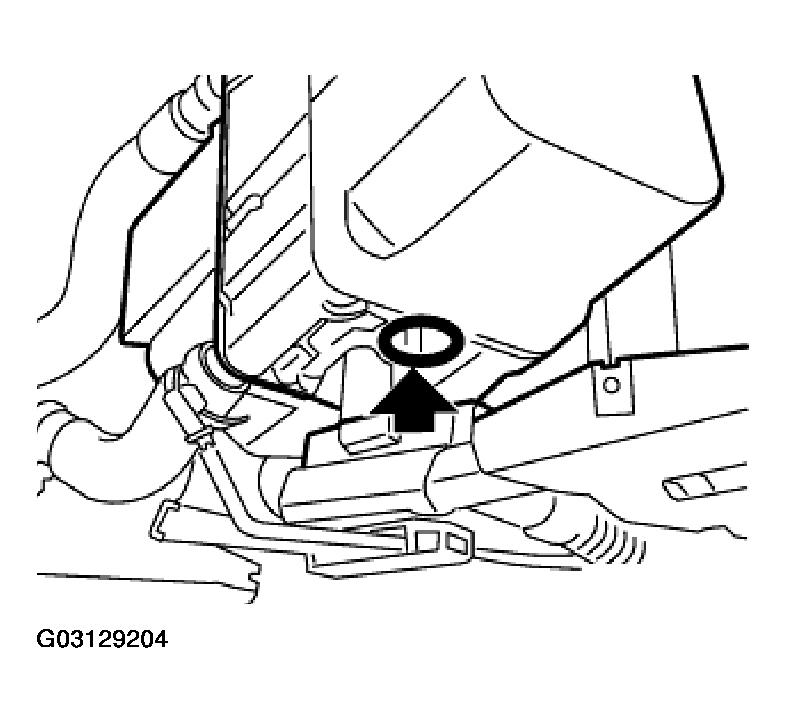

Replace sealing ring and ensure it is correctly seated.

Fig 3: Locating Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

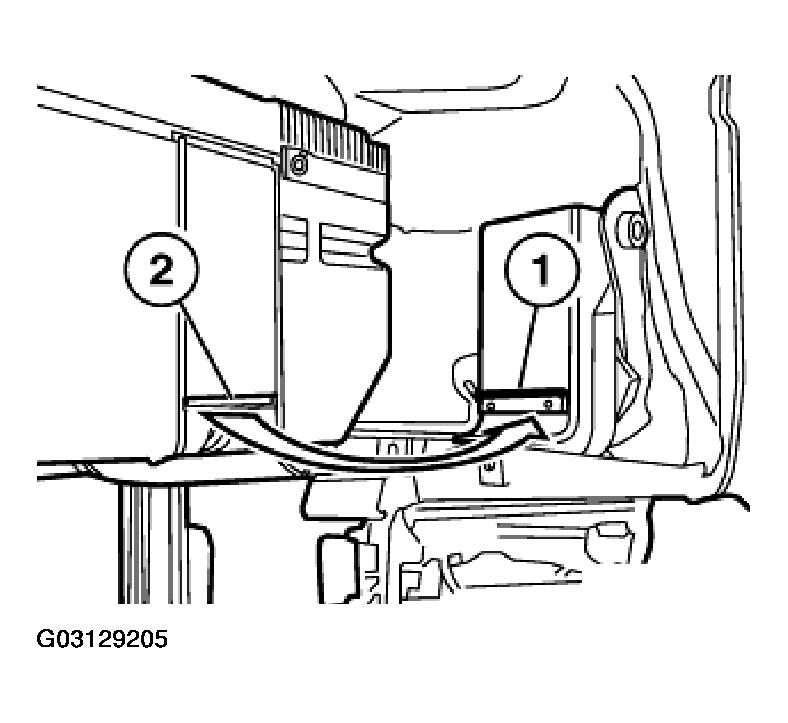

Ensure that bracket (1) rests in groove (2).

Bleed independent heating unit.

Fig 4: Identifying Bracket Installation In Groove

Courtesy of BMW OF NORTH AMERICA, INC.
