63 25 000 Removing and installing/replacing auxiliary brake light

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Removing trim for oddments tray, refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRAY (BACK SHELF) .

Remove nuts.

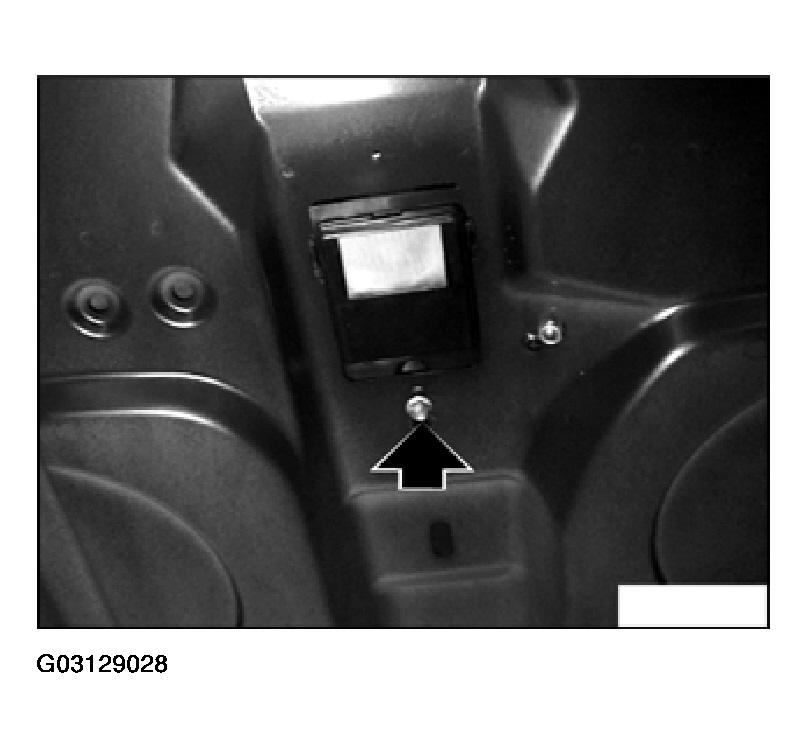

Fig 1: Removing Trim For Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector, pull back brake light and lift out.

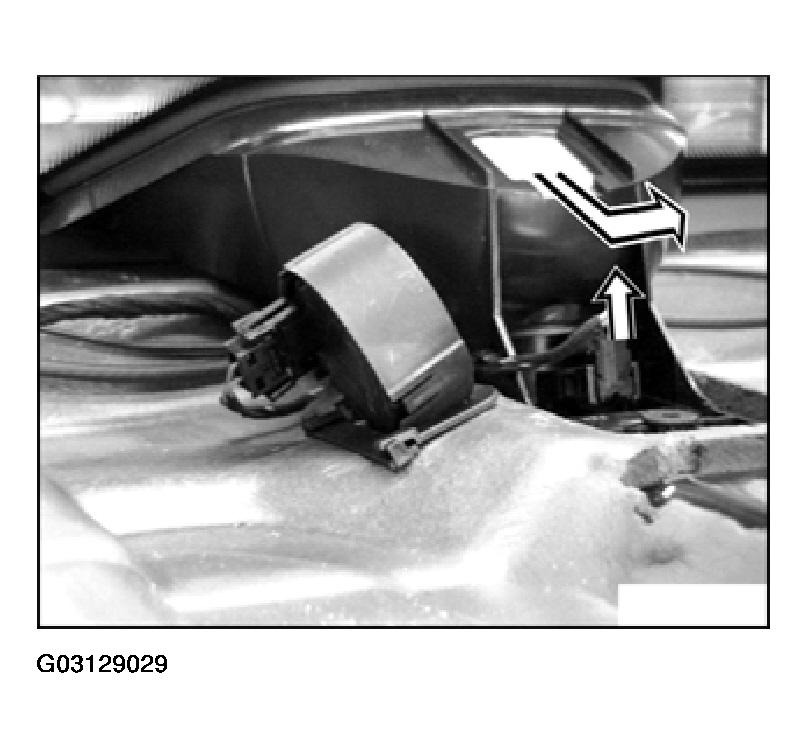

Fig 2: Removing Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert lugs (2) in recess (1), slide brake light up to rear window and tighten down.

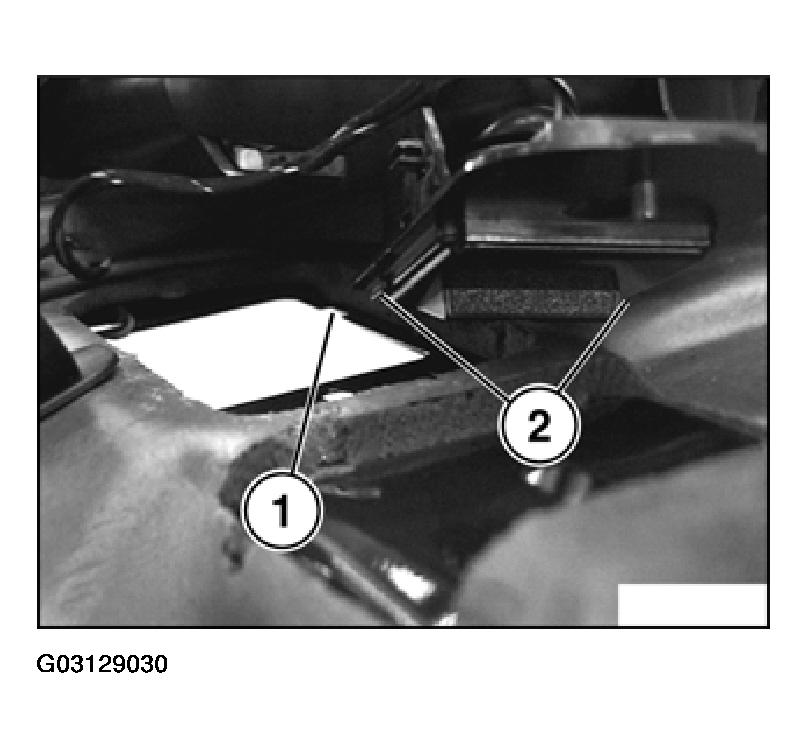

Fig 3: Sliding Brake Light Up To Rear Window & Tightening Down

Courtesy of BMW OF NORTH AMERICA, INC.
