61 67 010 Removing and installing/replacing washer pump of headlight cleaning system
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Remove wheel arch cover at front right top. See 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER
Drain fluid tank for windshield washer system.
NOTE:
When removing, carefully pull out washer pump for headlight cleaning system so that strainer is not pulled off and thus does not fall into fluid tank for windshield washer system. If this does happen, the fluid tank for the windshield washer system must be removed so that the strainer can be taken out.

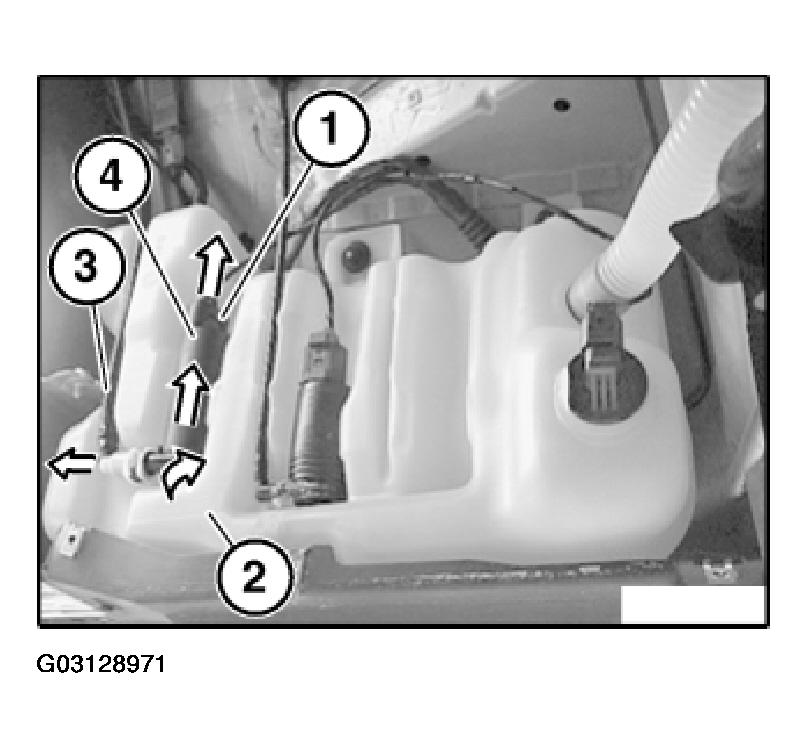

Disconnect plug connection (1) in direction of arrow.
Unlock hose (3) and detach in direction of arrow from washer pump of headlight cleaning system (4).
Turn washer pump of headlight cleaning system (4) in direction of arrow and pull upwards out of fluid tank for windshield washer system (2).
Installation:
Make sure hose (3) is laid without kinks.
Replace seal and strainer for washer pump of headlight cleaning system (4).
Coat seal with anti-seize agent.
