52 13 030 Removing and installing / replacing backrest frame on left or right front seat (normal / manual).

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove backrest cover with support,

refer to 52 13 405 REPLACING BACKREST COVER FOR FRONT SEAT (NORMAL/MANUAL), LEFT OR RIGHT

Model with lumbar supports:

If necessary, remove lumbar support,

refer to 52 13 050 REPLACING LEFT OR RIGHT LUMBAR SUPPORTS ON FRONT SEAT (NORMAL/ MANUAL)

If necessary, remove valve housing,

refer to 52 13 560 REMOVING AND INSTALLING/REPLACING VALVE HOUSING FOR FROM LEFT OR RIGHT LUMBAR SUPPORT (NORMAL/ MANUAL)

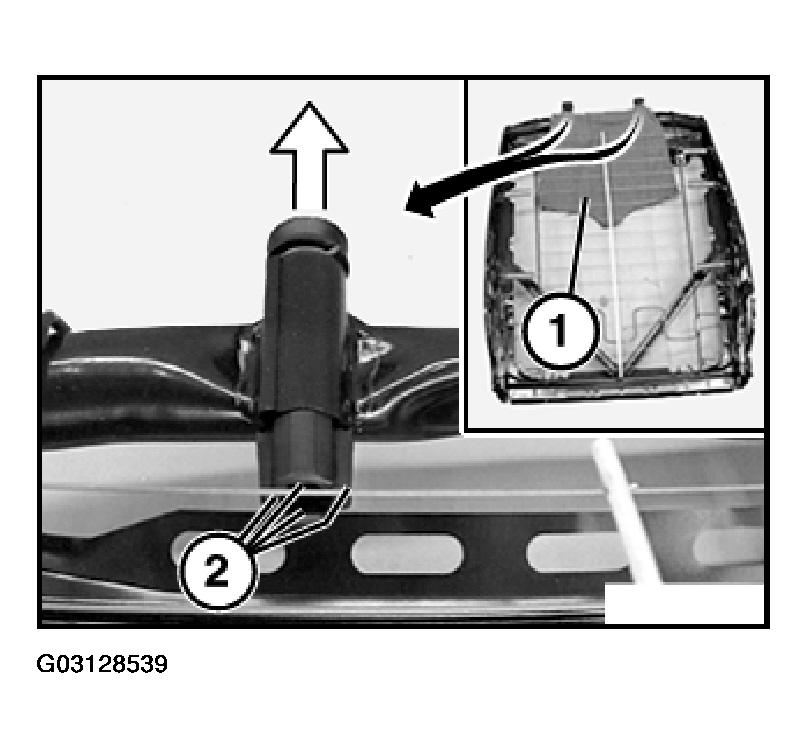

Disconnect tabs (1) from headrest supports.

Press together interlocks (2) and remove left / right headrest support.

Fig 1: Disconnecting Tabs From Headrest Supports

Courtesy of BMW OF NORTH AMERICA, INC.
