52 13 050 Replacing left or right lumbar supports on front seat (normal/ manual)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove back-rest,

refer to 52 13 405 REPLACING BACKREST COVER FOR FRONT SEAT (NORMAL/MANUAL), LEFT OR RIGHT

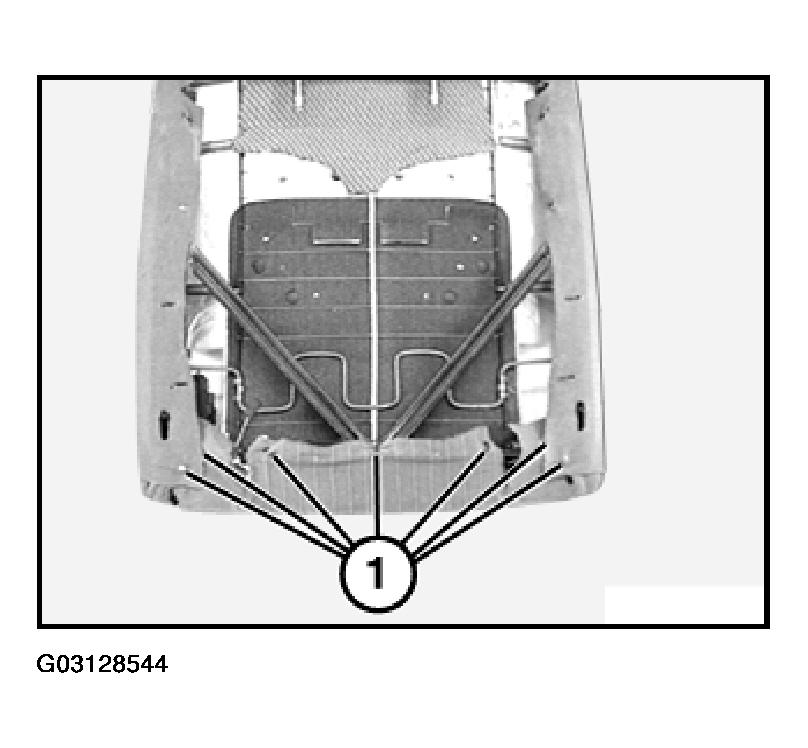

Disconnect bottom of cover from clips (1).

Fig 1: Disconnecting Bottom Of Cover From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

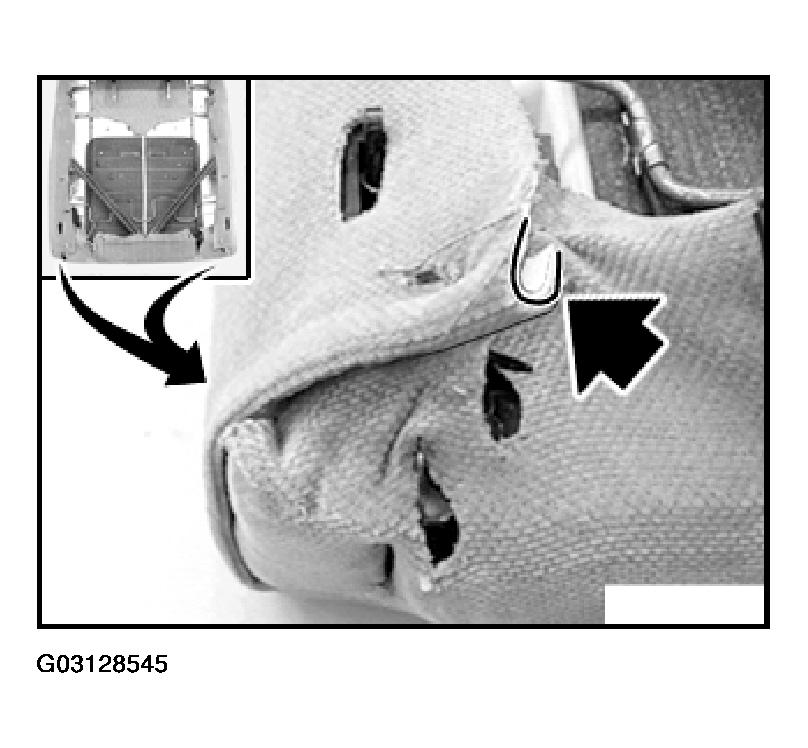

Fold down bottom of seat cover and insert clip.

Fig 2: Installing Bottom Of Seat Cover & Insert Clip

Courtesy of BMW OF NORTH AMERICA, INC.

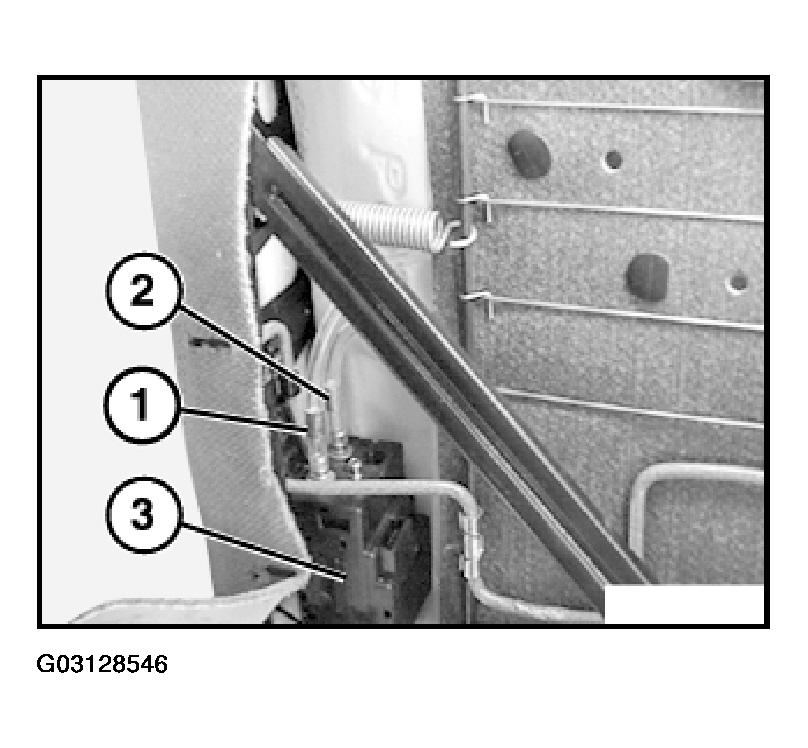

Remove hose (1) (Blue = small cushion) and hose (2) (Red = large cushion) from control unit (3).

NOTE: If necessary, gently heat hose when firmly seated. Housing (valve block) must not be unclipped (leaks). Should be unclipped: unfasten screw and clip together the housing.

Installation:

Connection hoses must be routed without sharp bends.

Fig 3: Removing Hose

Courtesy of BMW OF NORTH AMERICA, INC.

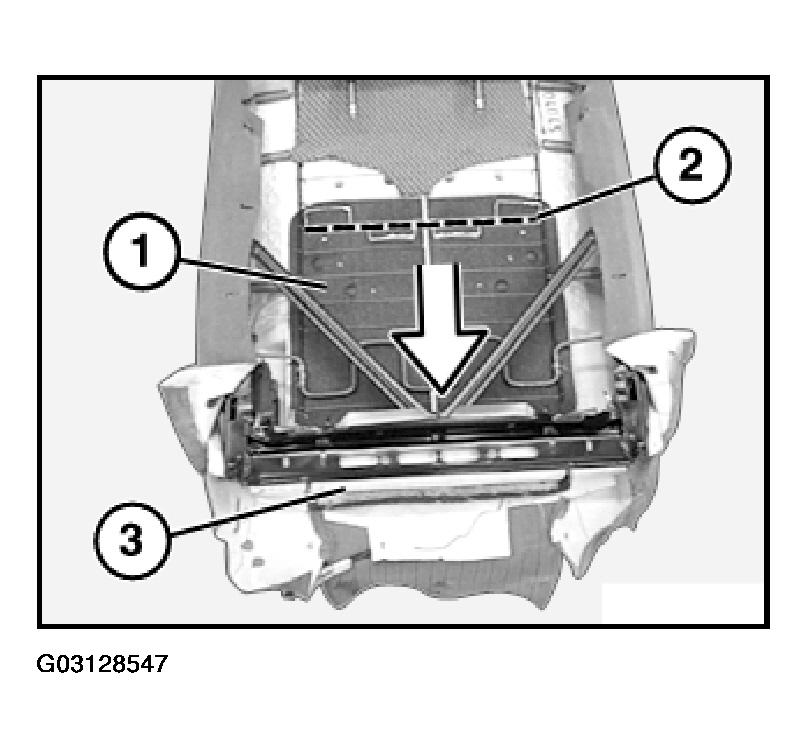

Disconnect top of lumbar support cushion (1) from spring wire (2). Press support (3) downwards and remove lumbar cushion (1).

Fig 4: Disconnecting Top Of Lumbar Support Cushion From Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

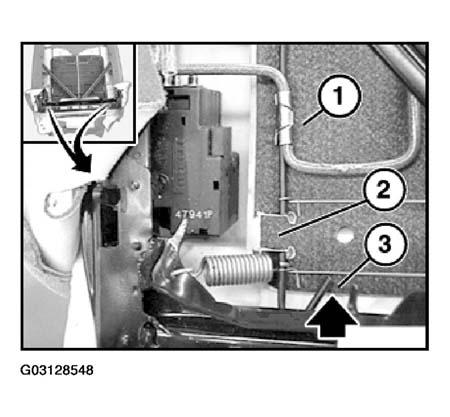

Attach bottom left/right lumbar supports (1) with recesses (2) above the springs so that it is sealed with the spring mat (3) with the connection hoses routed without sharp bends.

Fig 5: Attaching Bottom Left/Right Lumbar Supports With Recesses Above Springs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function.
