52 13 020 Removing and installing / replacing seat frame on left/right front seat (normal/ manual)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Removing seat cover with support,

refer to 52 13 400 REPLACING SEAT COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/ MANUAL)

Only replace:

Remove lumbar support pump and hose.

Only replace:

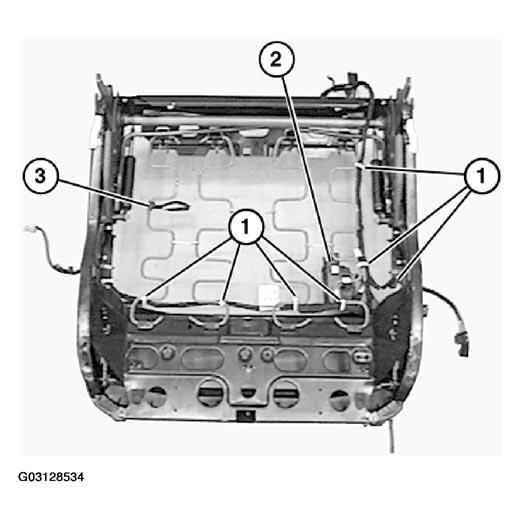

Fig 1: Removing Wiring Harness From Left Or Right Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten cable tie (1), unclip connector (2) and remove wiring harness.

Remove rubber ring (3).

Installation:

Note routing of line (1) for seatbelt tensioner.

Secure rubber ring (2).

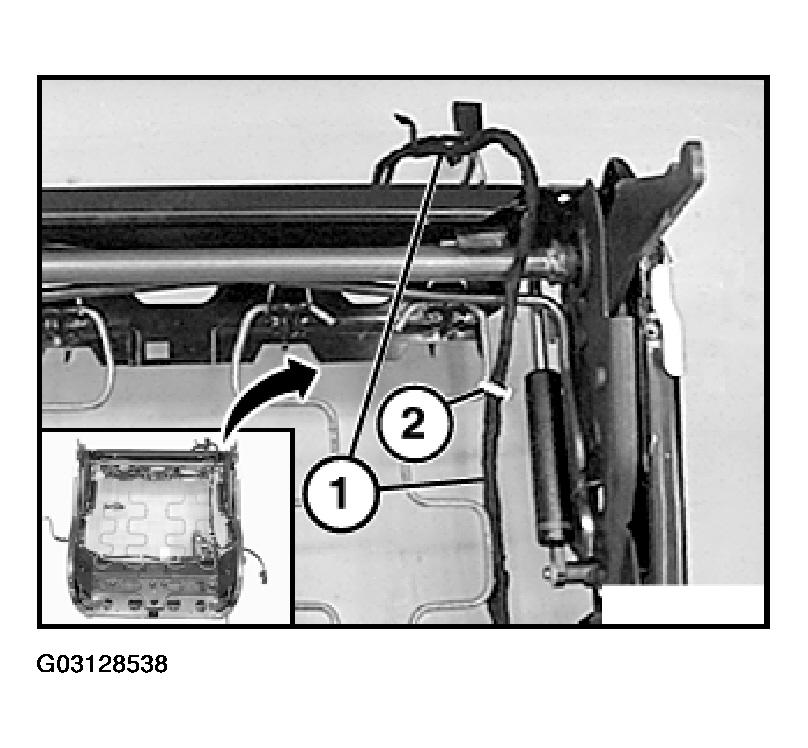

Fig 2: Installing Seatbelt Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Secure line (1) for seatbelt tensioner with cable tie (2).

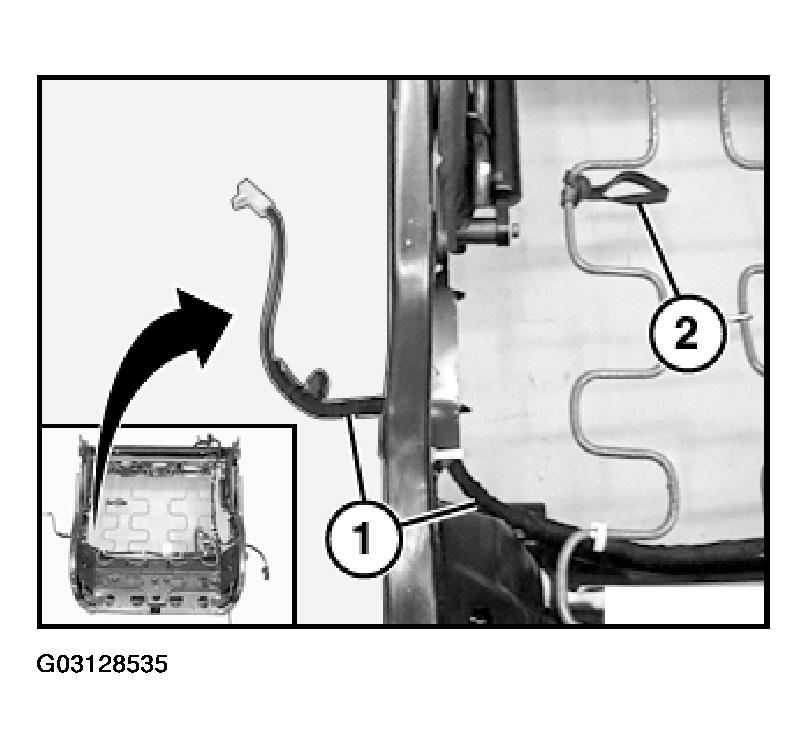

Fig 3: Installing Seatbelt Tensioner With Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Unclip connector (1) and secure line (2) with cable tie (3).

Version with seat heating / lumbar support:

Secure line (4) with cable tie (5).

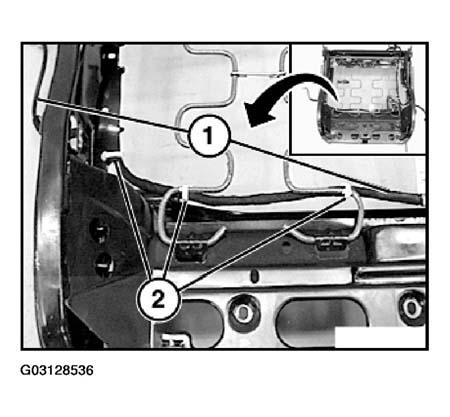

Fig 4: Unclipping Connector & Secure Line With Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version with seat heating:

Secure line (1) with cable tie (2).

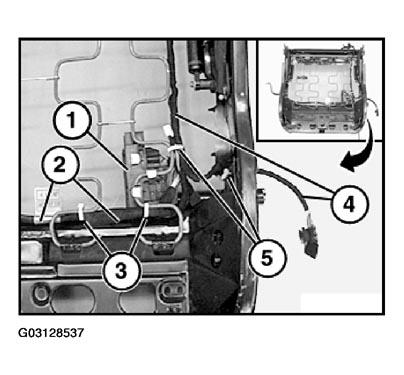

Fig 5: Installing Seat Heating With Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.
