52 13 400 Replacing seat cover on left or right front seat (normal/ manual)

Removal of complete seat cushion:

Remove both seat rails,

refer to 52 13 010 REMOVING AND INSTALLING / REPLACING BOTH SEAT RAILS ON LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL)

Remove inside cover,

refer to 52 13 041 REMOVING AND INSTALLING / REPLACING INNER COVER ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ MANUAL)

Remove actuating unit,

refer to 52 13 015 REMOVING AND INSTALLING / REPLACING CONTROLS ON LEFT / RIGHT FRONT SEAT (NORMAL / MANUAL)

Lift left/ right seat cover out of cover clips.

Installation:

End of cover must not be folded or frayed (function error).

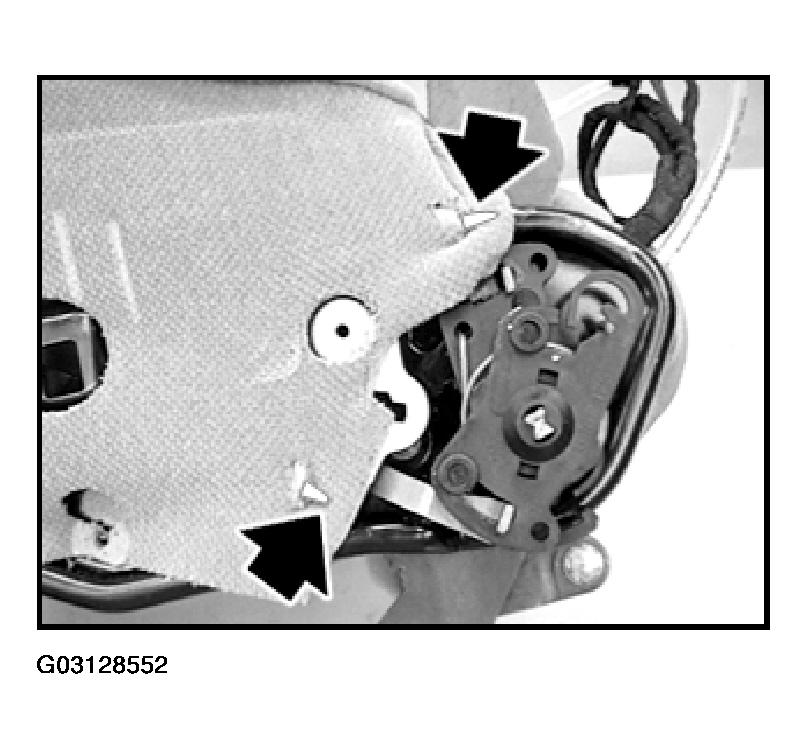

Fig 1: Installing End of cover must not be folded or frayed (function error)

Courtesy of BMW OF NORTH AMERICA, INC.

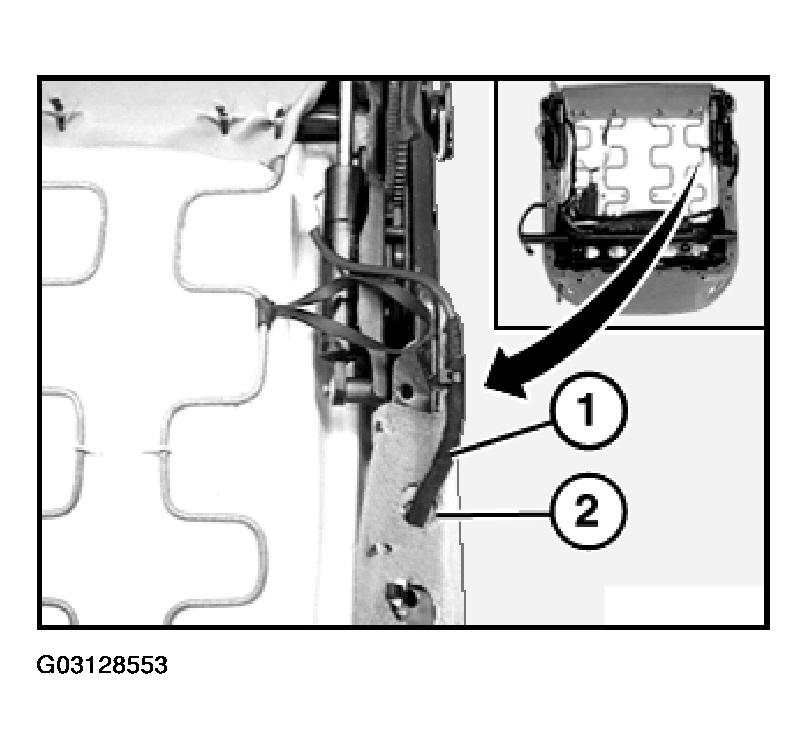

Remove cable (1) for seatbelt tensioner from inside seat cover (2).

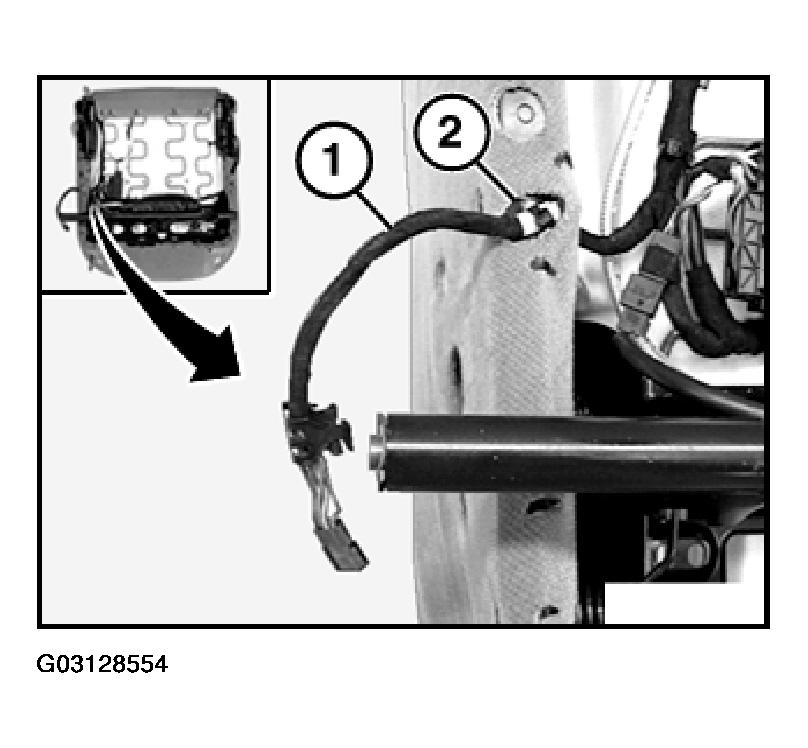

Fig 2: Removing Cable For Seatbelt Tensioner From Inside Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Model with lumbar supports:

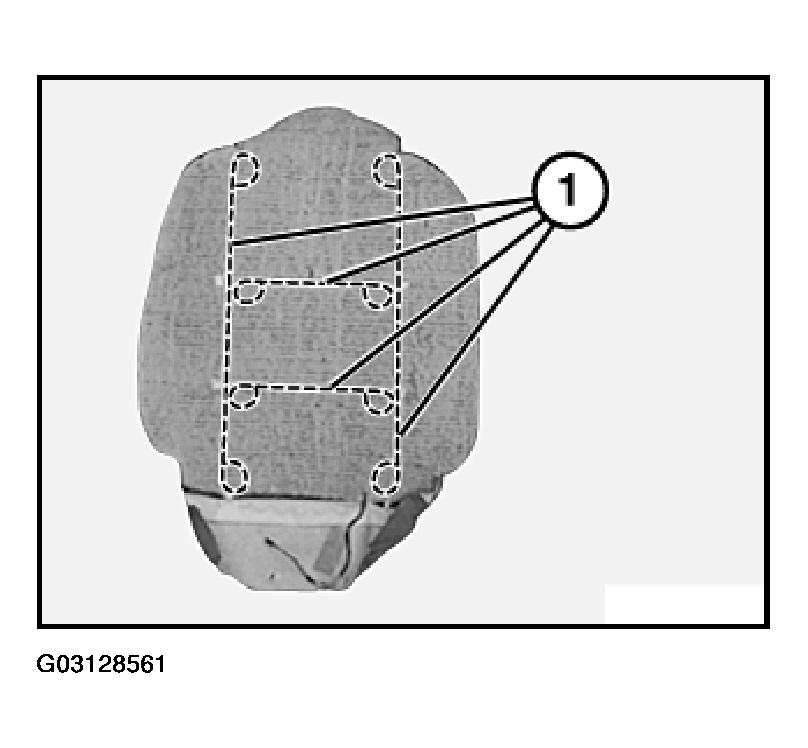

Extract cable (1) from seat cover (2).

Fig 3: Extracting Cable From Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

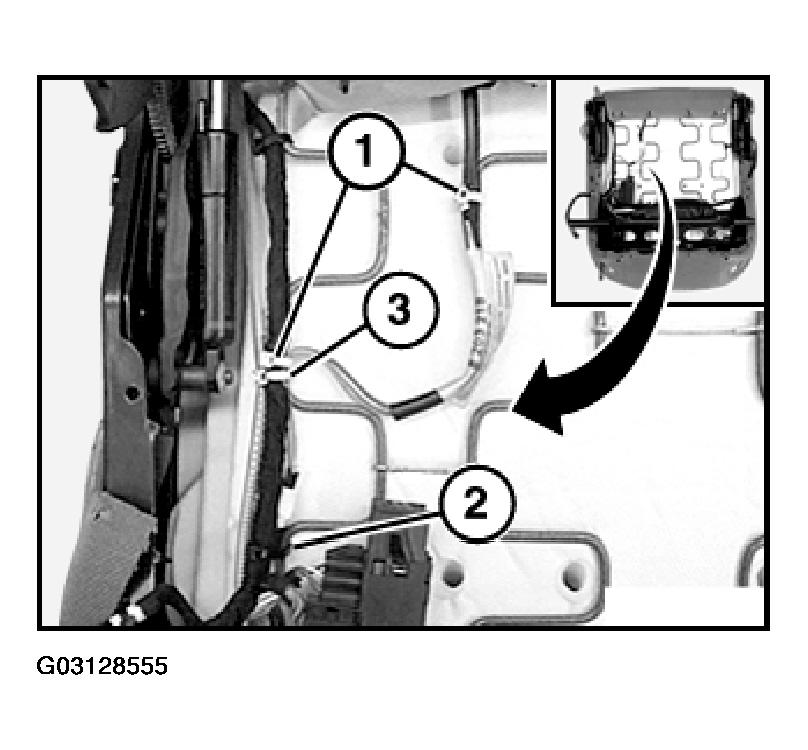

Unfasten cable tie (1) and remove connector (2).

Model with lumbar supports:

Do not unfasten cable tie (3) in region of hose reinforcement.

Fig 4: Unfastening Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

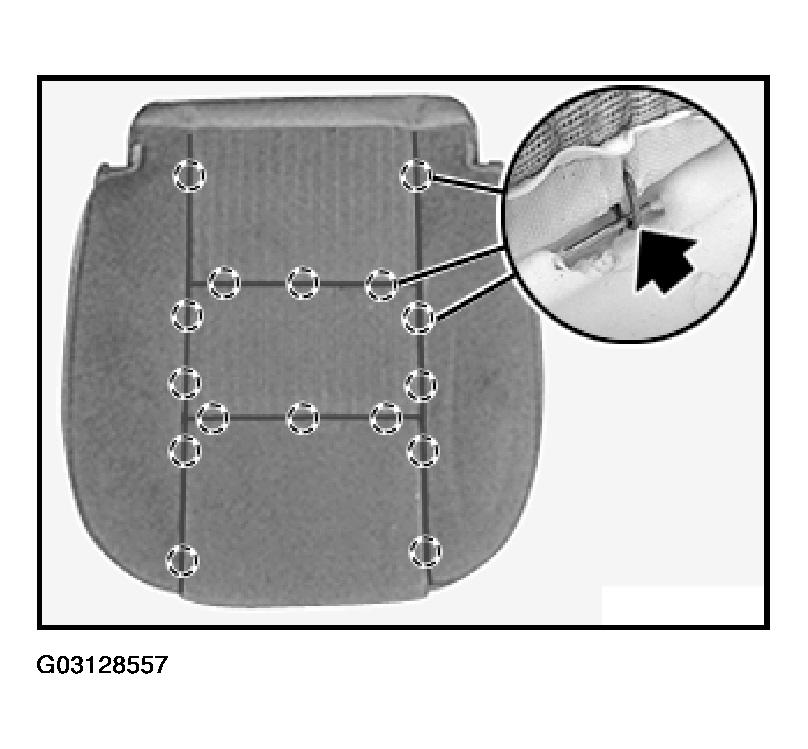

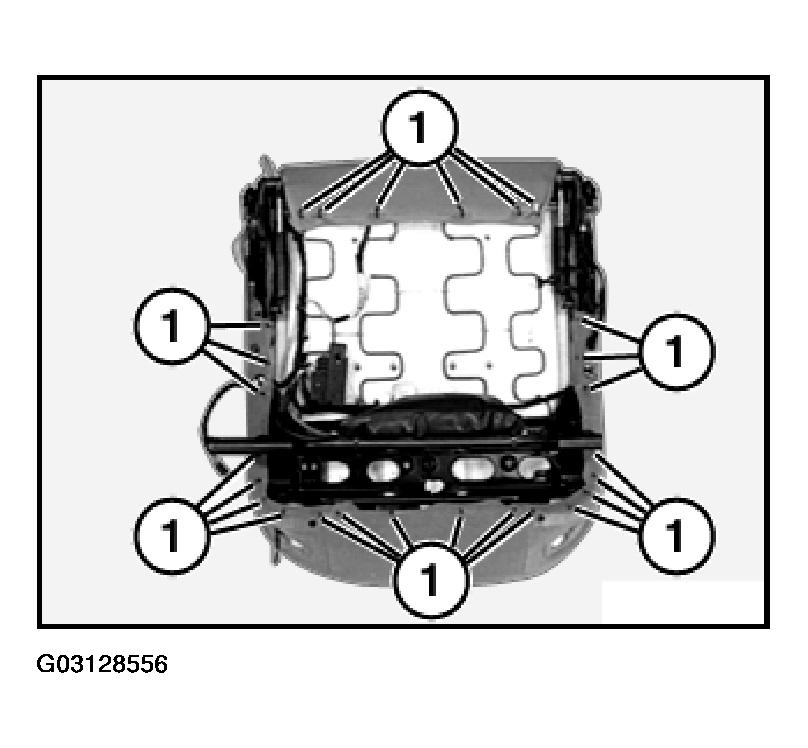

Disconnect seat cover from all cover clips (1) and remove together with foam rubber section (support).

Fig 5: Disconnecting Seat Cover From All Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of support:

Cut through all clips and remove seat cover from support (foam rubber section).

Fig 6: Replacing Complete Seat Cushion

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

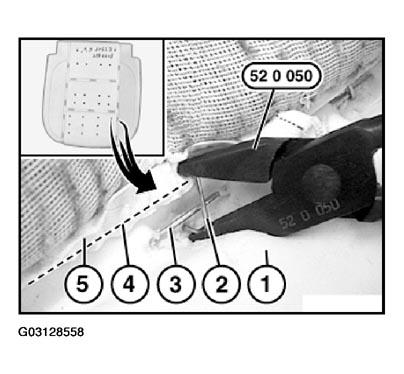

Bend new clips (2) with special tool 52 0 050.

1. Support
2. Clip
3. Trim thread in support
4. Trim thread in cover
5. Cover

Fig 7: Installing New Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Only passenger seat (replacement of support):

Installation:

Fit new sensor mat.

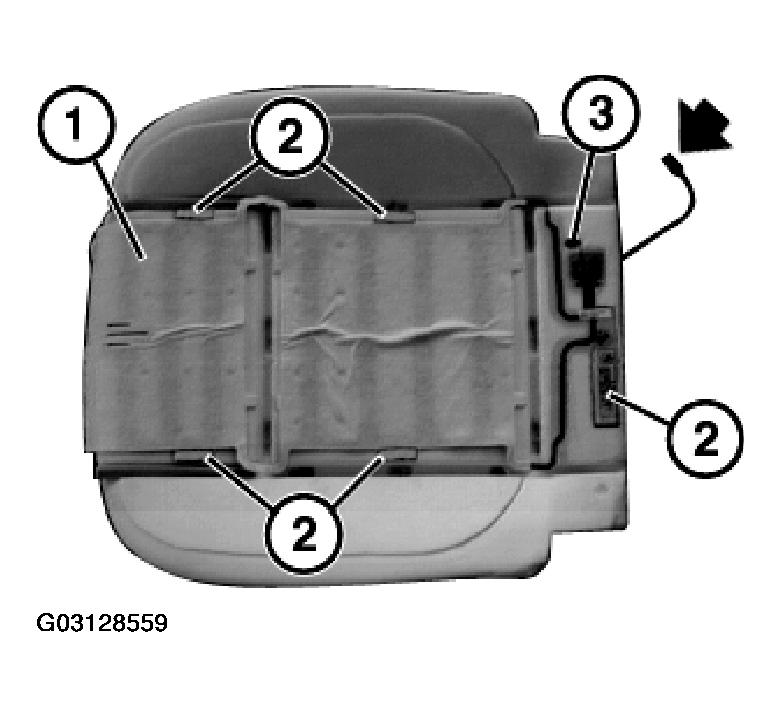

Mark out points (2) on sensor mat (1) for passenger seat allocation identification on liner and attach to foam rubber. Guide connector through the bore (3).

Folds as illustrated in diagram are not permitted!

Fig 8: Identifying Mark Out Points On Sensor Mat For Passenger Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Only passenger seat (replacement of sensor mat):

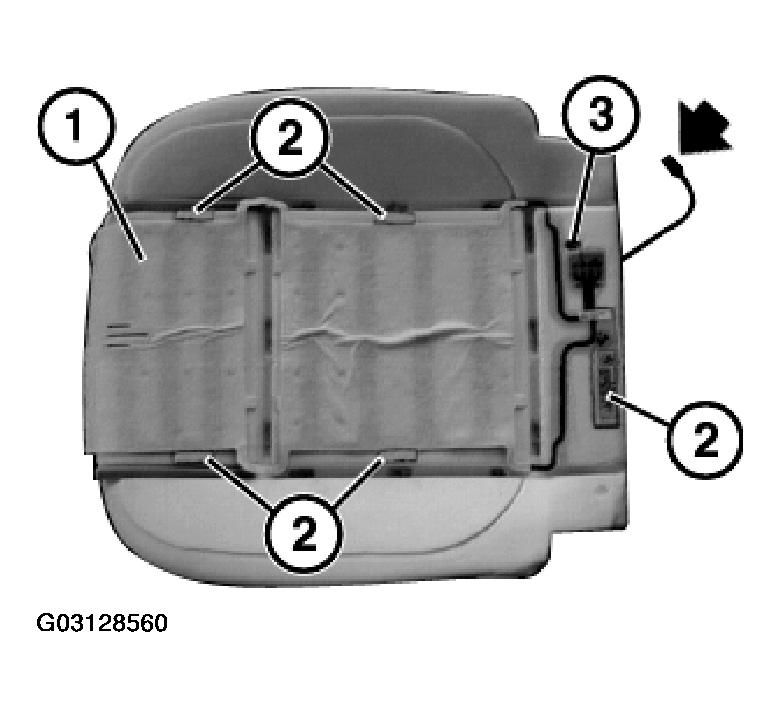

Remove sensor mat (1) for passenger seat allocation identification, ensuring that no large areas of foam at damaged marked points (2) (malfunction of passenger seat allocation identification). Guide connector through the bore (3).

Folds as illustrated in diagram are not permitted!

Fig 9: Removing Sensor Mat For Passenger Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of seat cover:

Remove trim threads (1) from seat cover. Cut new seat cover to size and insert trim threads (1).

Fig 10: Removing Trim Threads From Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.
