52 13 014 Replacing Bowden cable for longitudinal adjustment on left or right front seat (normal/manual)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat,

refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL)

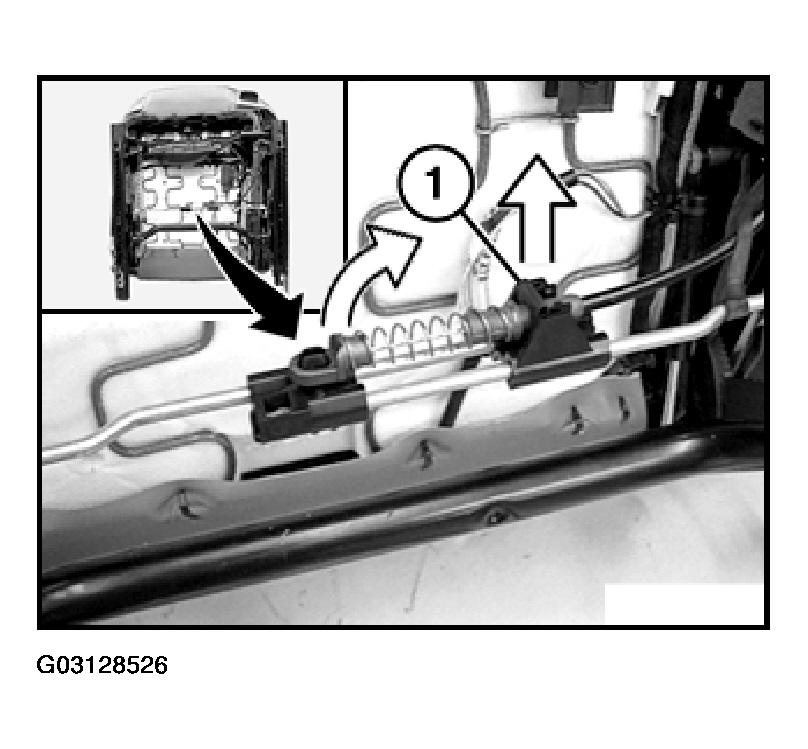

Remove clips (1) and pull Bowden cable forwards to remove.

Fig 1: Pulling Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

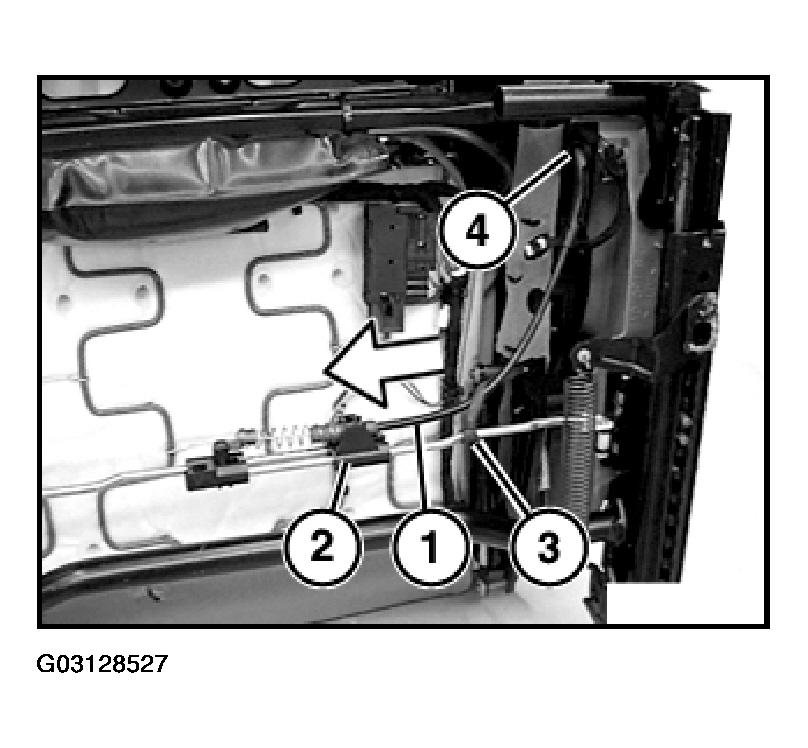

Slide Bowden cable (1) out of guide (2). Twist Bowden cable through 90° and lift out of support (4).

Installation:

Route Bowden cable (1) behind rubber tape (3).

Fig 2: Installing Route Bowden Cable Behind Rubber Tape

Courtesy of BMW OF NORTH AMERICA, INC.

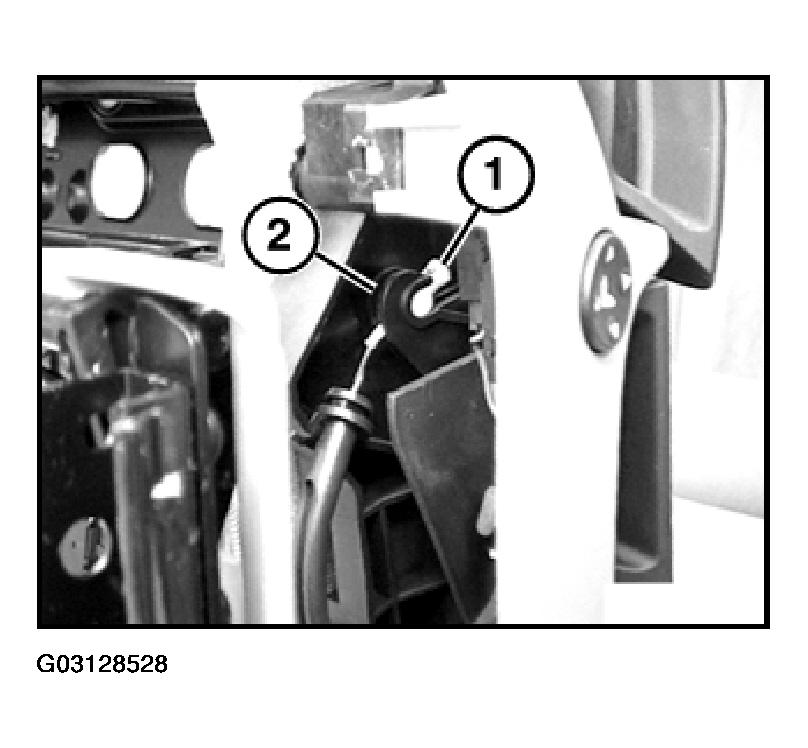

Withdraw Bowden cable nipple (1) from support (2) and remove Bowden cable for longitudinal adjustment.

Installation:

Adjust Bowden cable for longitudinal adjustment,

refer to 52 13 013 ADJUSTING BOWDEN CABLE FOR LONGITUDINAL ADJUSTMENT OF LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL) .

Fig 3: Adjusting Bowden Cable For Longitudinal

Courtesy of BMW OF NORTH AMERICA, INC.
