52 13 013 Adjusting Bowden cable for longitudinal adjustment of left or right front seat (normal / manual)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat,

refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL / MANUAL)

Remove clip from Bowden cable sleeve.

1st person presses left / right unlocking lever (1) down (towards cushion) to ensure that locking pins (2) have no clearance when vehicle is in motion.

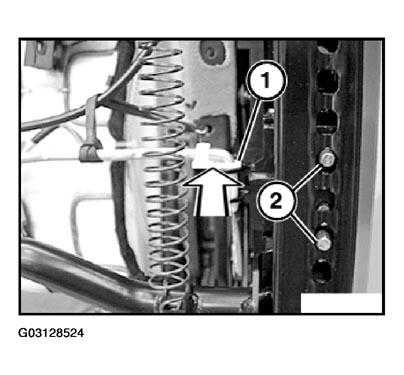

Fig 1: Removing Clip From Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the clip (1) is bent, replace it.

2nd person pulls on Bowden cable sleeve (3) at same time, pushing up clip (1).

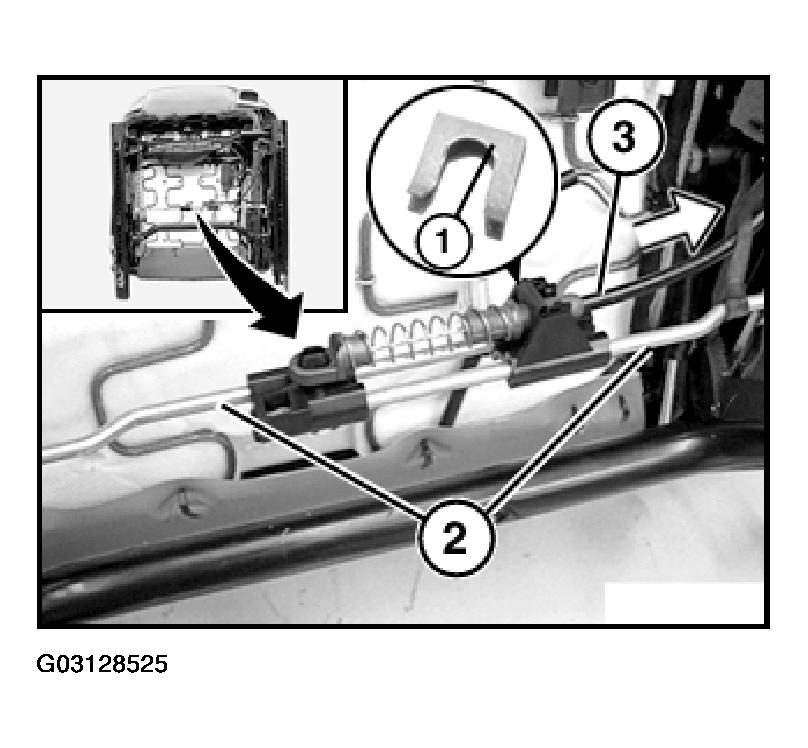

Fig 2: Pulling On Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
