52 17 380 Removing and installing / replacing headrest support on left or right front seat (comfort)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Removing headrest,

refer to 52 17 390 REMOVING AND INSTALLING OR REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINTS (COMFORT)

Remove bottom of rear panel

refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT)

Remove top of cover from claw-type cover clips.

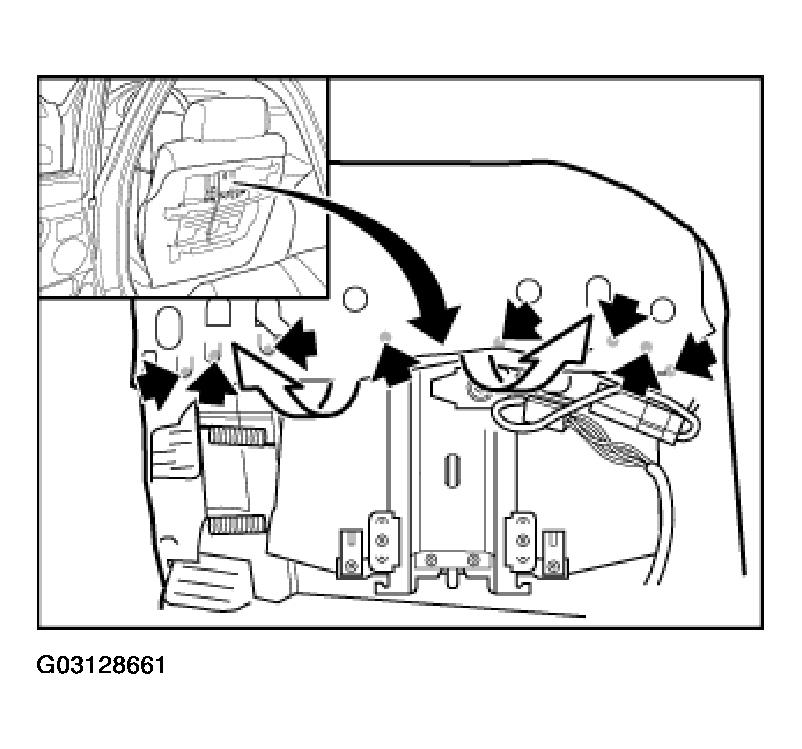

Fig 1: Removing Top Of Cover From Claw-Type Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Version with multifunction headrest:

If necessary, remove connector.

Installation:

Check function.

The cable must not be under tension.

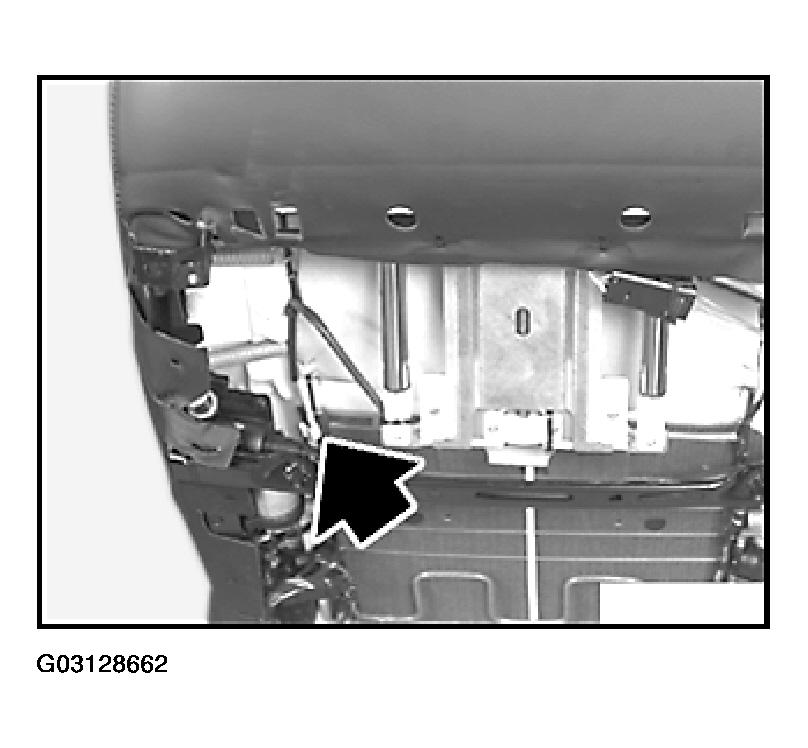

Fig 2: Removing Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

Press cover and support upwards, unfasten screw (1) and pull complete headrest support (2) with semi-circular shell section (3) downwards to remove.

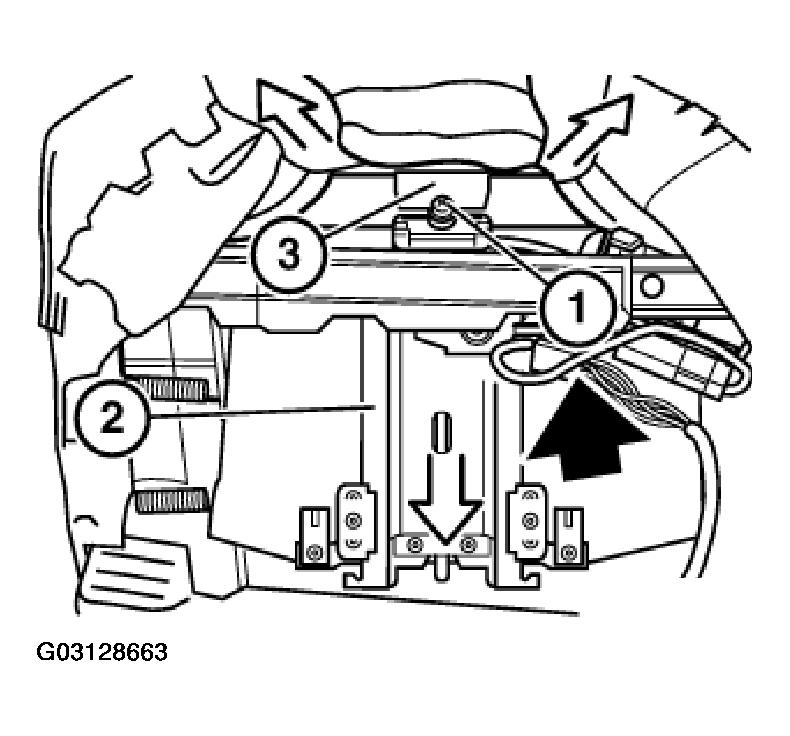

Fig 3: Pulling Complete Headrest Support With Semi-Circular Shell

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach semi-circular shell section (3) in headrest support (2), install and secure with screw (1).

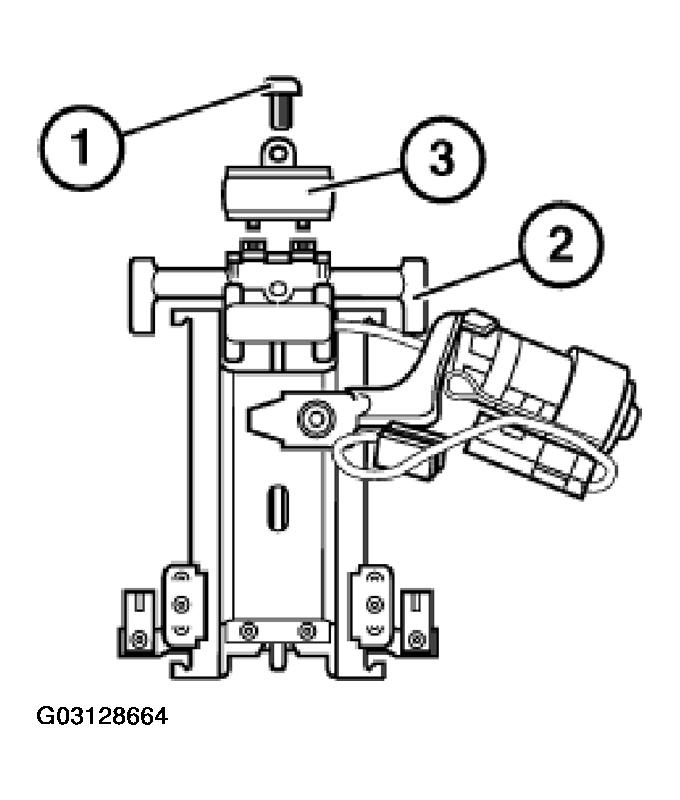

Fig 4: Attaching Semi-Circular Shell

Courtesy of BMW OF NORTH AMERICA, INC.
