52 17 202 Removing and installing/replacing bottom rear panel on front seat backrest (luxury seat)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This document is also applicable to L7 driver's seat with video system in rear compartment.
Head-rest must be moved as far forwards as possible.
Remove top rear panel, refer to 52 17 200 REMOVING AND INSTALLING/REPLACING TOP REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

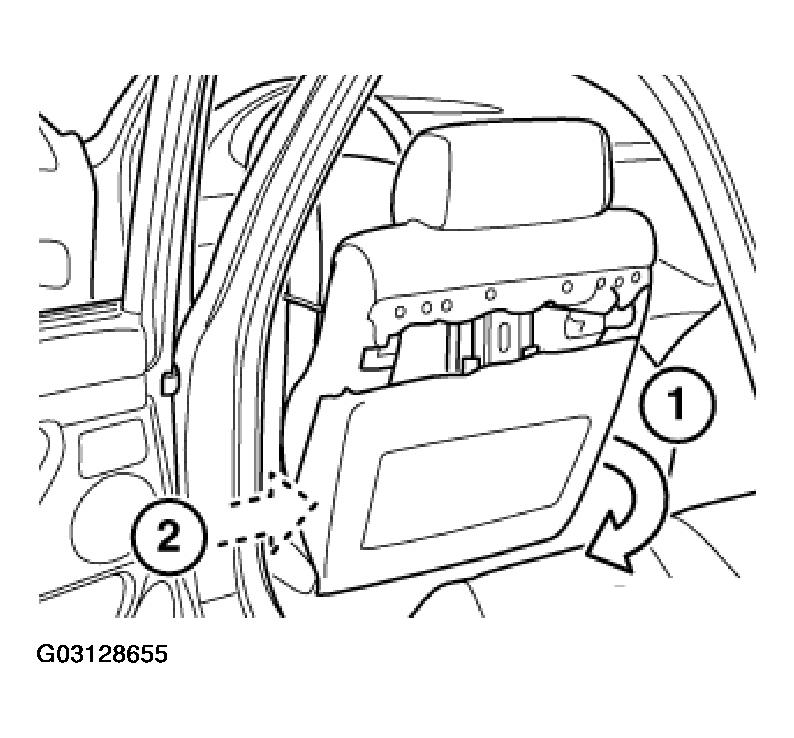

Pull inside edge of rear panel inwards / backwards (1) and knock firmly inwards (2) (spring disconnected at bottom inside edge).

Fig 1: Pulling Inside Edge Of Rear Panel Inwards / Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

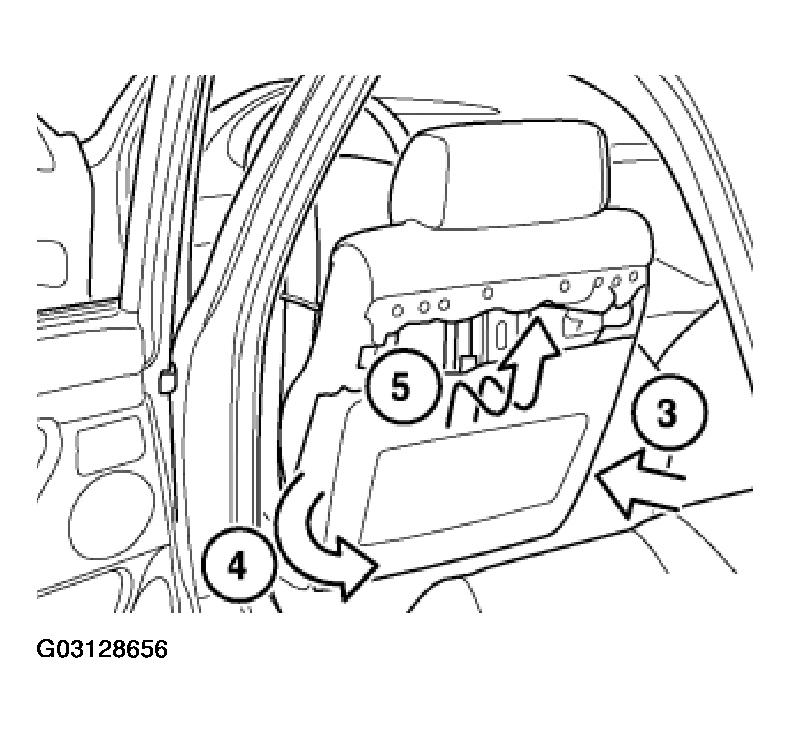

Press inside edge of rear panel outwards (3) and pull outwards and backwards (4) (spring disconnected at bottom outside edge).

Lift rear panel upwards / backwards (5).

Fig 2: Pressing Inside Edge Of Rear Panel Outwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

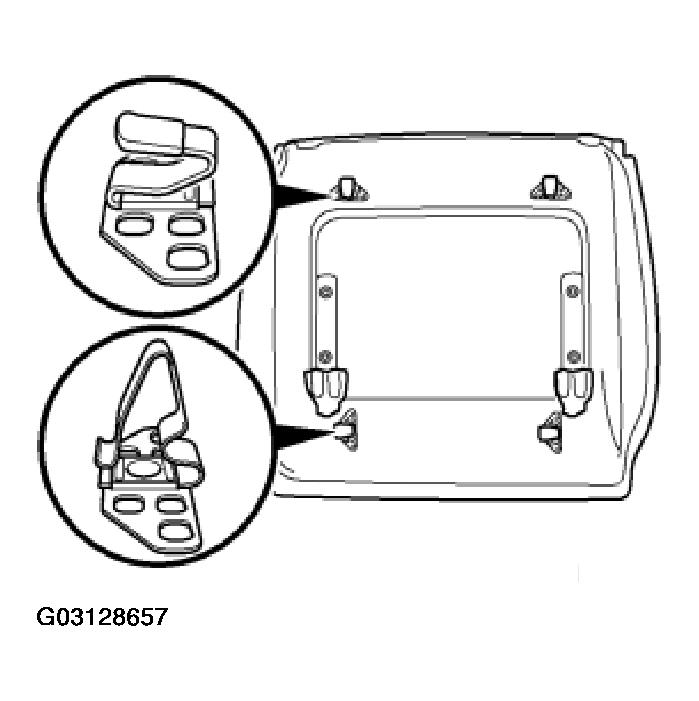

The springs must be correctly located in the rear panel supports and must not be bent.

If necessary, replace defective clips.

Fig 3: Installing Rear Panel Supports

Courtesy of BMW OF NORTH AMERICA, INC.
