52 17 041 Removing and installing / replacing inside cover from left or right front seat (comfort)
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
Remove front seat,
refer to 52 17 000 REMOVING AND INSTALLING FRONT SEAT (COMFORT)

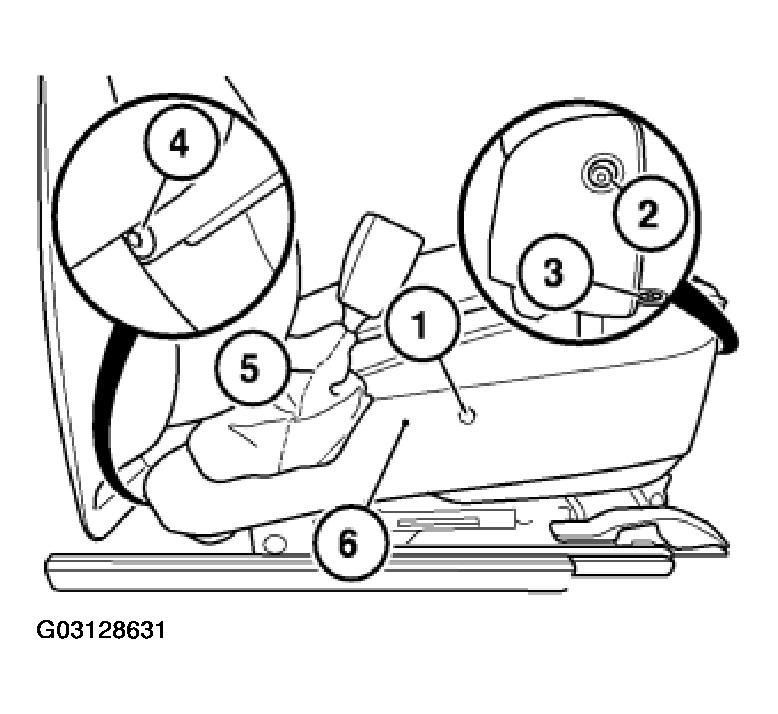

Unscrew screws (1) and (2).
Unfasten clips (3) and (4).
Open finisher cover (5) (burr fastener) and remove cover (6).
If rear clip is not accessible:
If necessary disconnect lower back wall (without dismantling top back wall),
refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT)
