52 17 040 Removing and installing / replacing cover on left or right front seat (comfort)

Unfasten seatbelt screw. Tightening torque. Refer to SEATS - TIGHTENING TORQUES .

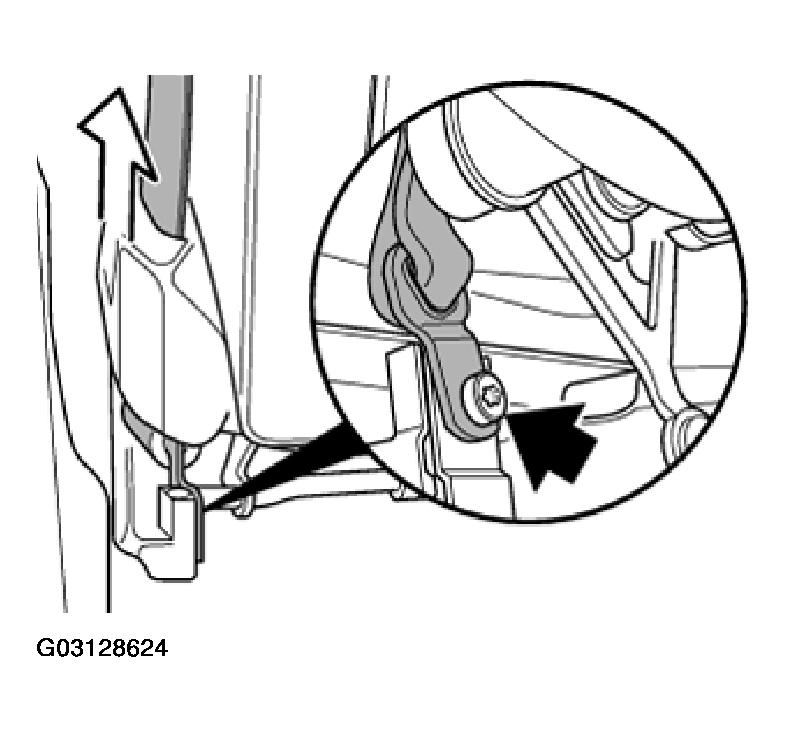

Fig 1: Unfastening Seatbelt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Move back seat cover slightly to one side and unfasten screws.

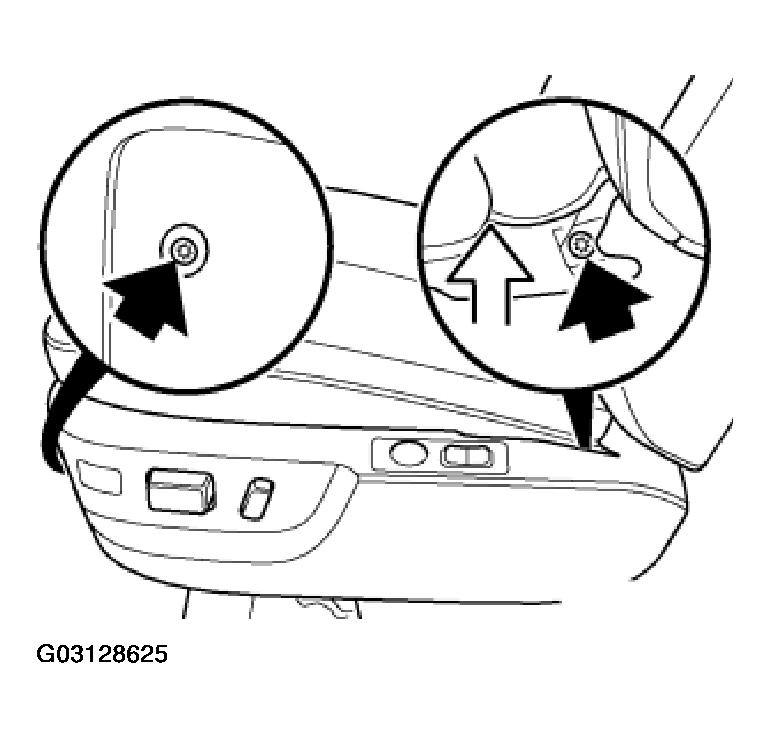

Fig 2: Unfastening Screws Back Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips.

If rear clip is not accessible:

If necessary, unhook rear panel at bottom (without removing rear panel at top),

refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

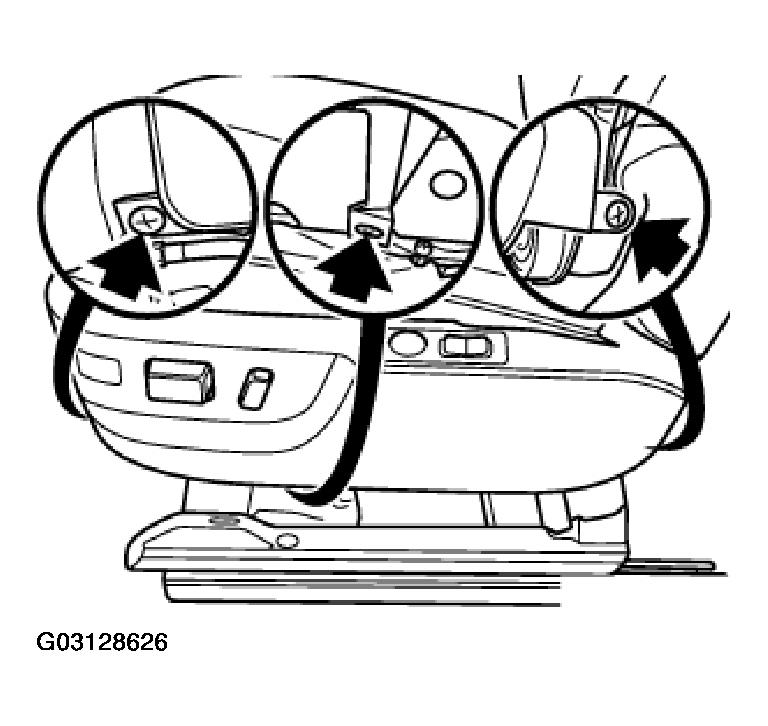

Fig 3: Unfastening Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Press down cover from above and turn downwards to remove.

Only replacing:

Pull off operating knobs (1) and (2).

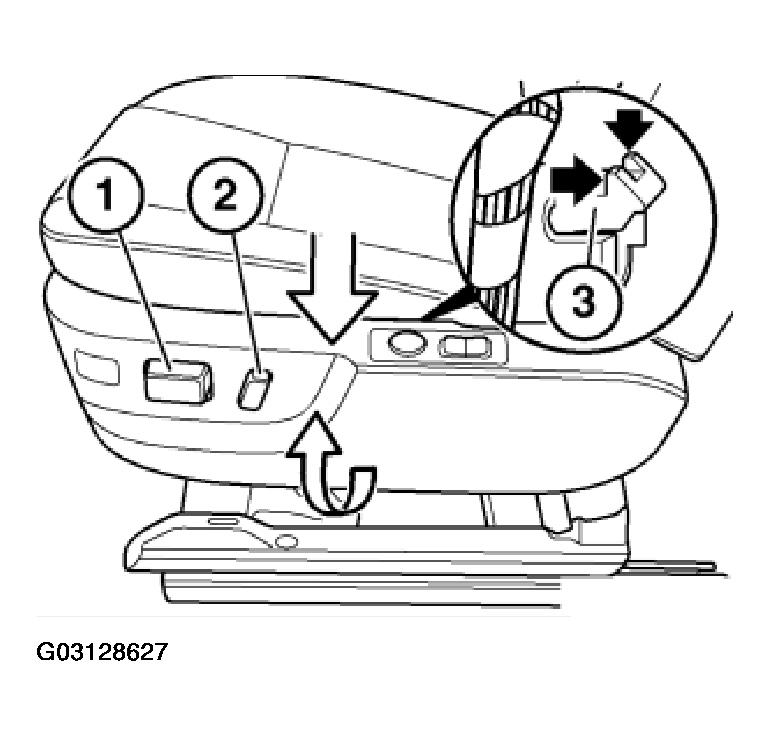

Fig 4: Pulling Off Operating Knobs

Courtesy of BMW OF NORTH AMERICA, INC.

Version with rear / top lumbar support switch up to Model Year 1996:

Unlock and remove cable connectors (1... 3).

Remove switch combination (4) for seat adjustment and switch (5) for lumbar support.

Lift out wiring harness (6) of clip (7) and remove finisher.

Installation:

Wiring harness (6) must be routed around central clip (8).

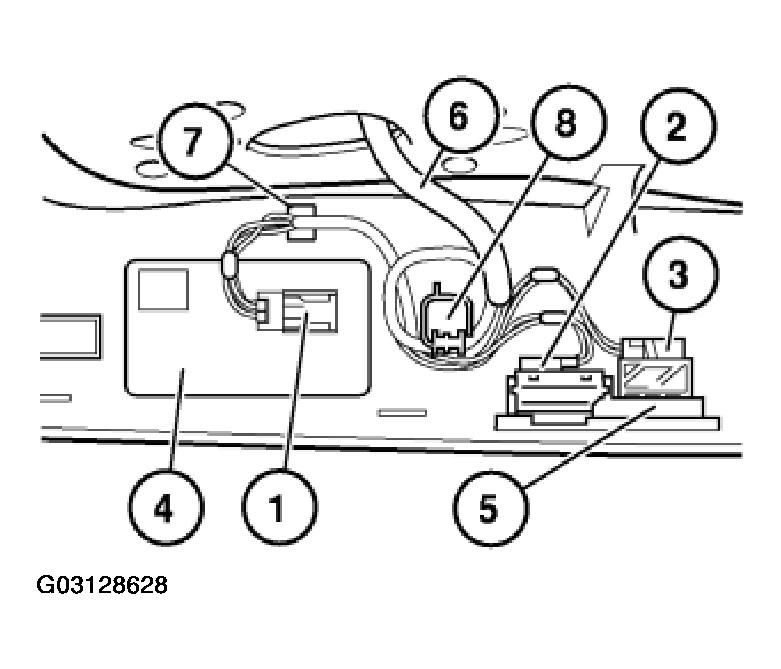

Fig 5: Removing Switch Combination For Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Version with lumbar switch at side as of Model Year 1996:

Unfasten central clip (1) and remove.

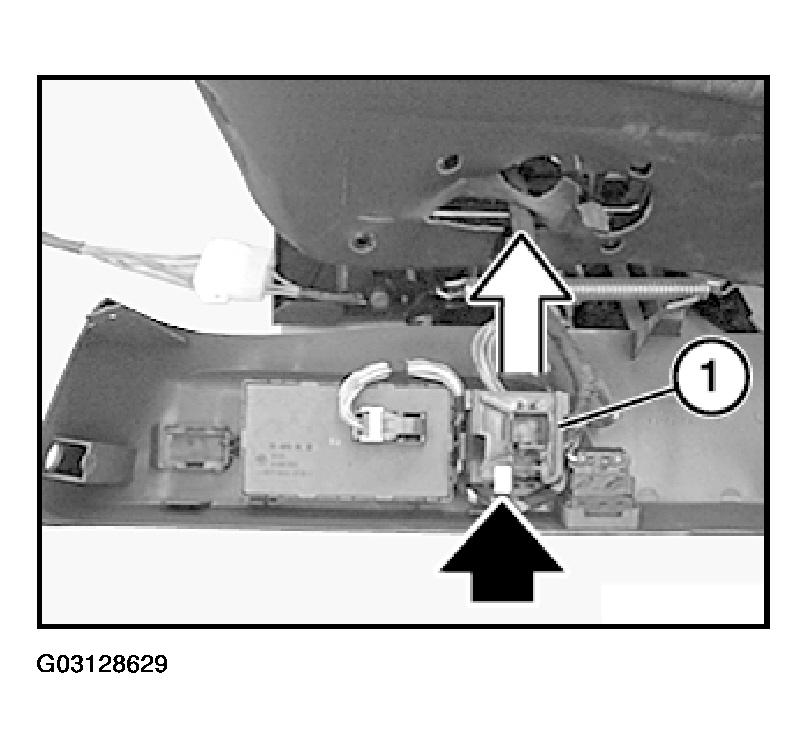

Fig 6: Unfastening Central Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Version with lumbar switch at side as of Model Year 1996:

Unlock and remove cable connector (1).

Remove switch (2) and switch combination (3) for seat adjustment.

Remove cover.

Installation:

Wiring harness (4) must be routed around support for central clip (5).

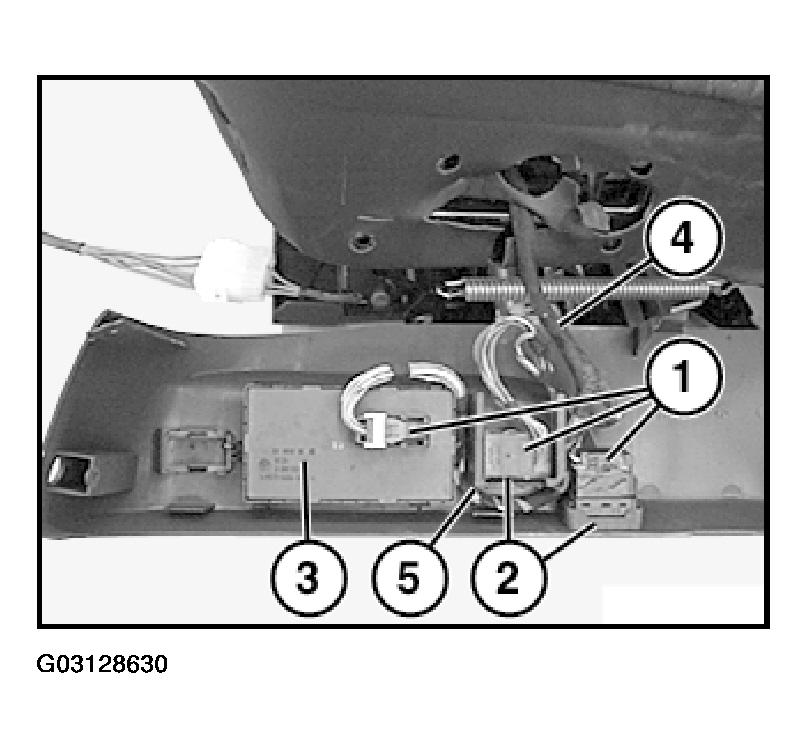

Fig 7: Removing Switch & Switch Combination
