52 23 401 Replacing cover for left or right child's seat

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear seat,

(sedan) refer to 52 23 511 ADDITIONAL WORK WITH INTEGRATED CHILD'S SEATS

(touring) refer to 52 26 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (THROUGH-LOADING)

Unfasten nuts (1) and pull child's seat off rear seat.

Fig 1: Unfastening Nuts & Pull Child'S Seat Off Rear Seat

G03128695

Courtesy of BMW OF NORTH AMERICA, INC.

Untie steel cable (1) and lift out of lugs (2). Lift out cover (3) on all sides.

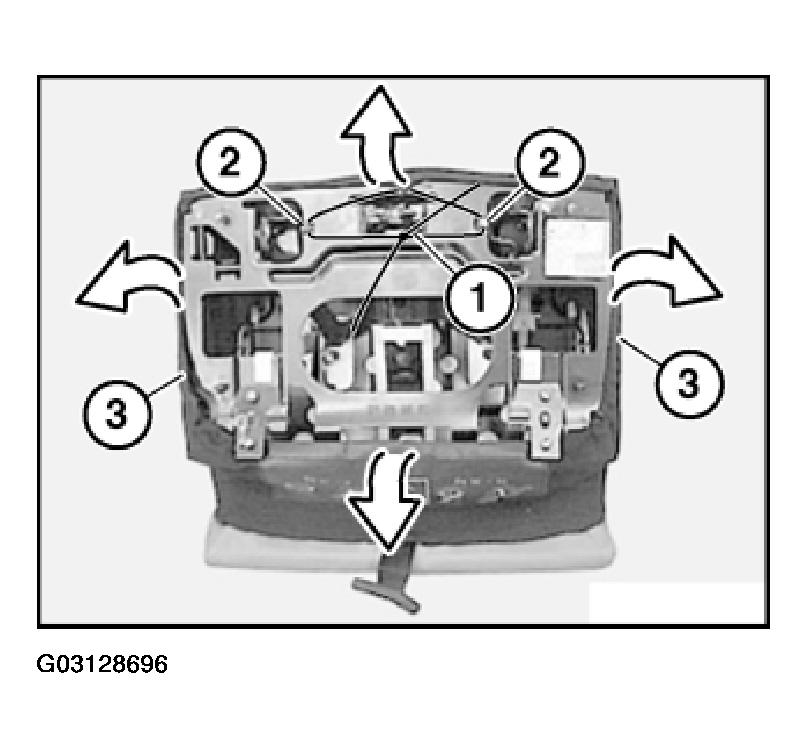

Fig 2: Removing Steel Cable & Lift Out Of Lugs

G03128696

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook cover at front.

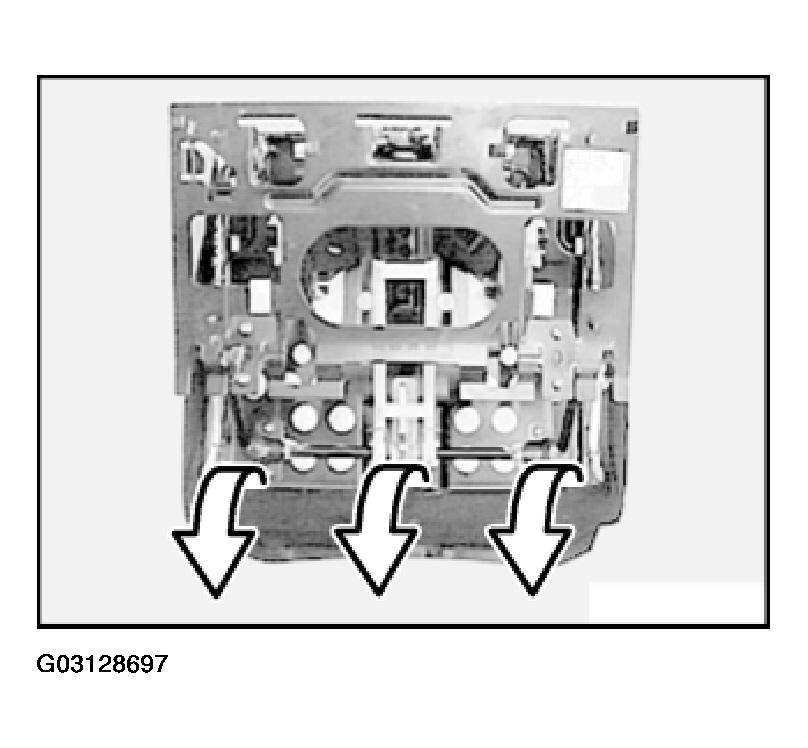

Fig 3: Unhooking Cover At Front

G03128697

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten rear clips (1).

Installation:

Bend new clips (1) with special tool 52 0 050.

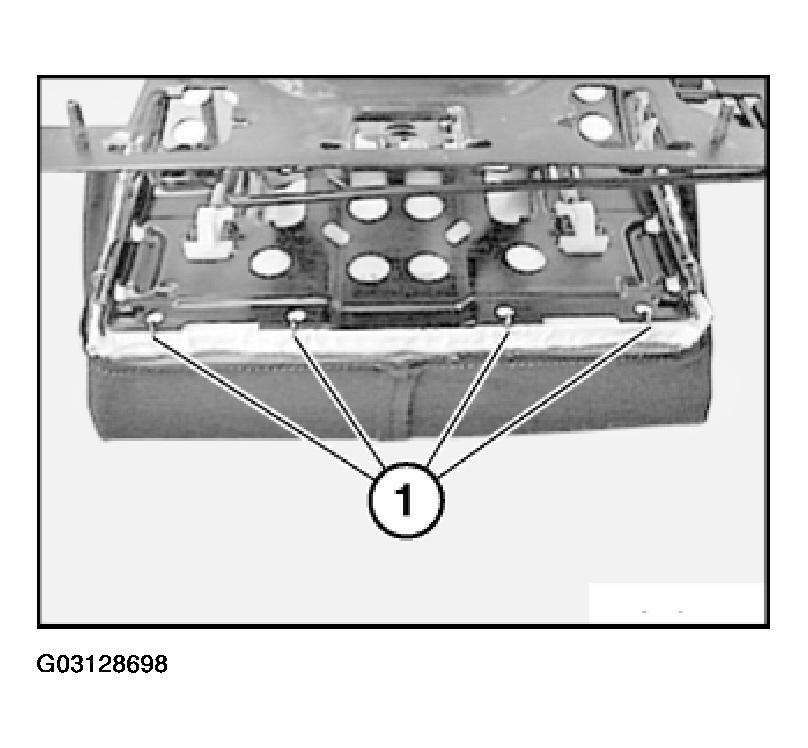

Fig 4: Unfastening Rear Clips

G03128698

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left/right clips (1) and take cover off child's seat.

Installation:

Bend new clips (1) with special tool 52 0 050.

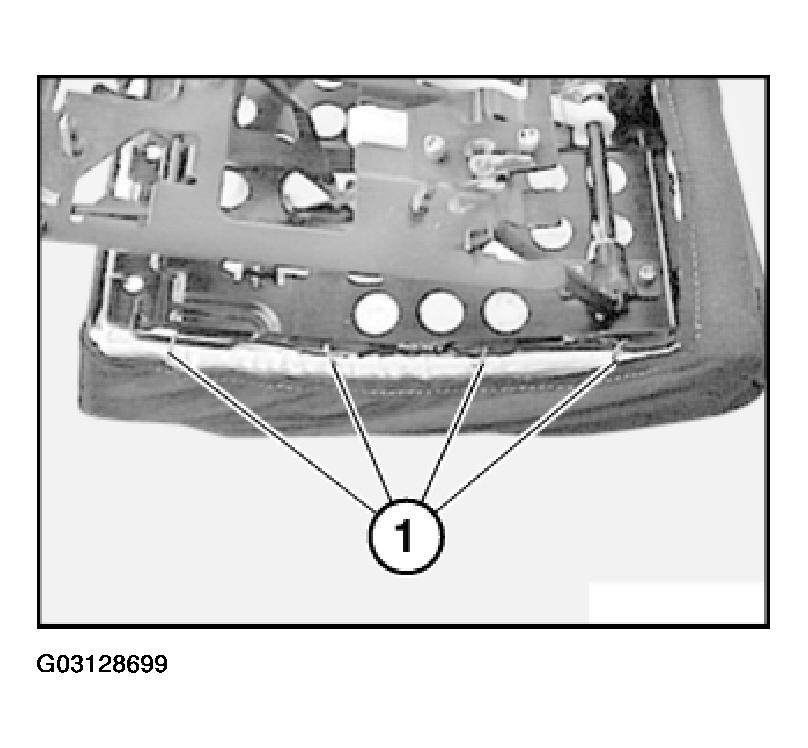

Fig 5: Unfastening Left/Right Clips

G03128699

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all trim wires from cover.

Cut new cover and insert the trim wires.
