52 23 511 Additional work with integrated child's seats

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

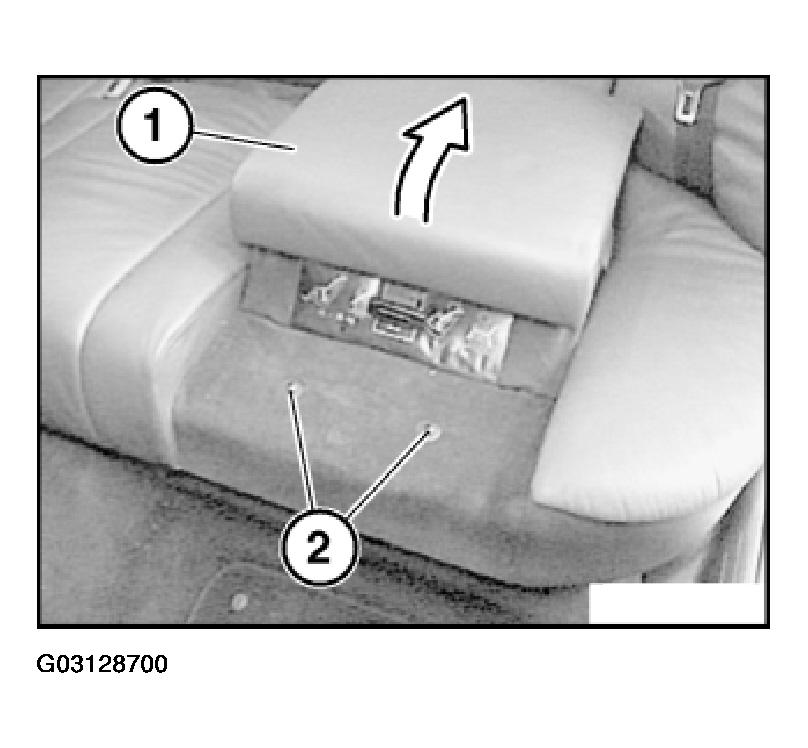

Fold up child's seat (1) and unfasten left/right expansion rivets (2).

NOTE: Remove pins of expansion rivets (2) from vehicle.

Fig 1: Removing Pins Of Expansion Rivets From Vehicle

G03128700

Courtesy of BMW OF NORTH AMERICA, INC.

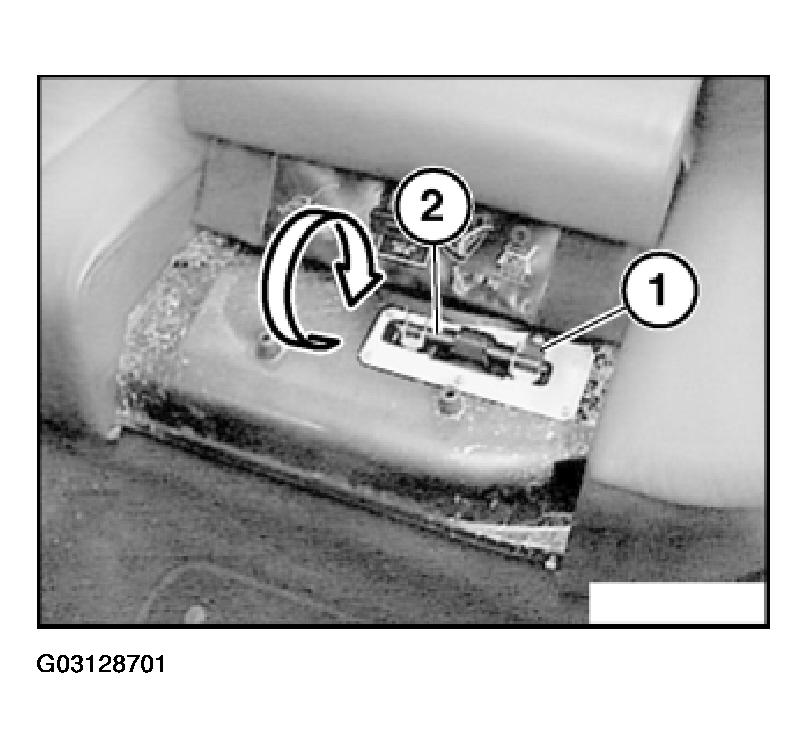

Press down retaining plate (1) and turn left/right locking pin (2) by 180°.

Fig 2: Pressing Down Retaining Plate & Turn Left/Right

G03128701

Courtesy of BMW OF NORTH AMERICA, INC.

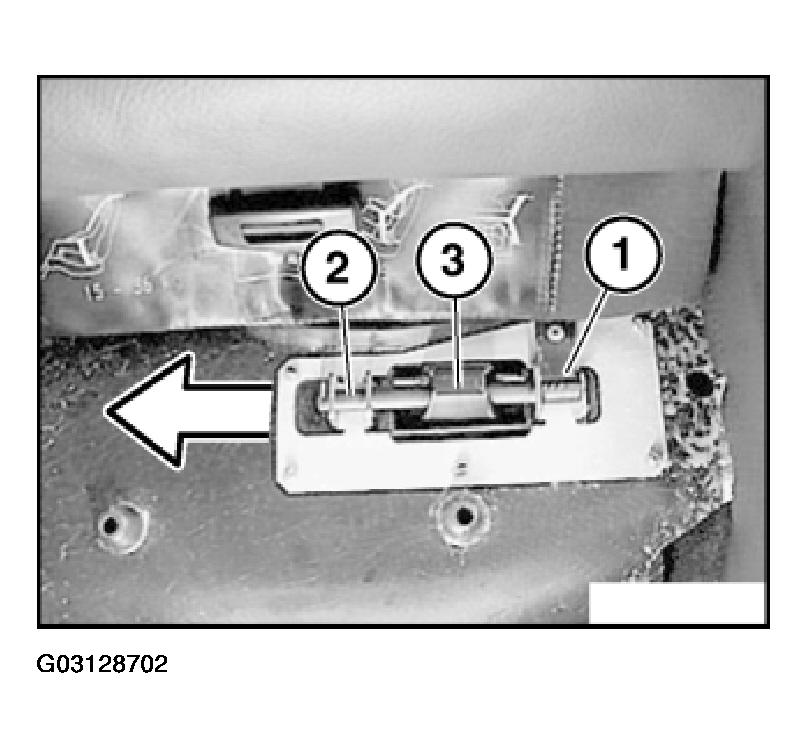

Press down retaining plate (1) and pull out left/right locking pin (2) until lug (3) is free.

Fig 3: Pressing Down Retaining Plate

G03128702

Courtesy of BMW OF NORTH AMERICA, INC.

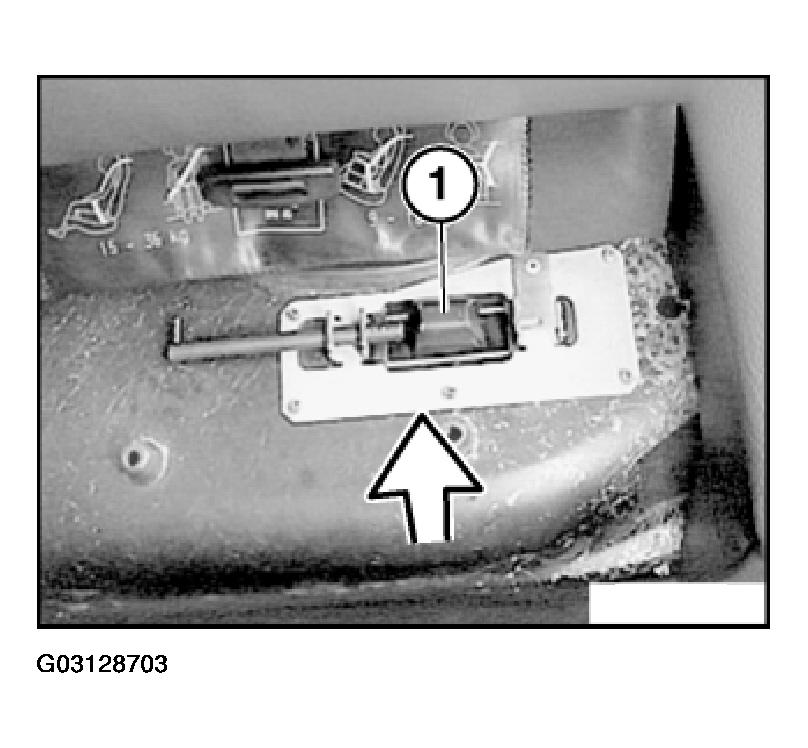

Lift left/right rear seat upward out of lugs (1).

Fig 4: Lifting Left/Right Rear Seat Upward Out Of Lugs

G03128703

Courtesy of BMW OF NORTH AMERICA, INC.

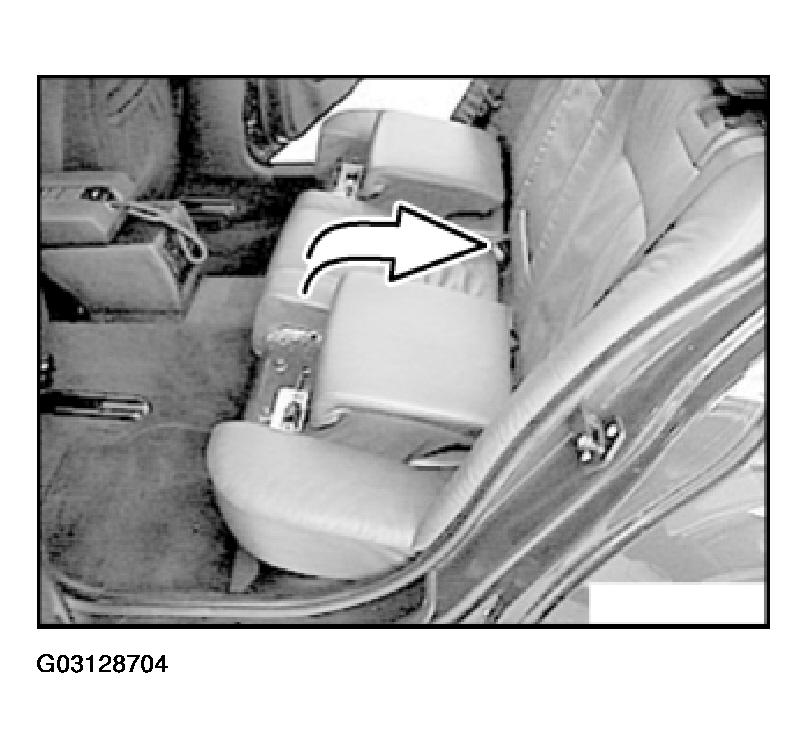

Lift out rear seat and remove from vehicle.

Fig 5: Removing Rear Seat From Vehicle

G03128704

Courtesy of BMW OF NORTH AMERICA, INC.
