51 34 171 Replacing rear left or right door window

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Open rear door window completely.

Disconnect battery negative lead.

Remove and install window cavity trim on outside of rear door, refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT .

Remove sound insulation on rear door, refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT

Remove and install cover on fixed door window of inside rear door, refer to 51 34... REMOVING AND INSTALLING/REPLACING COVER ON FIXED DOOR WINDOW OF REAR DOOR, INSIDE LEFT OR RIGHT

Release screws (1).

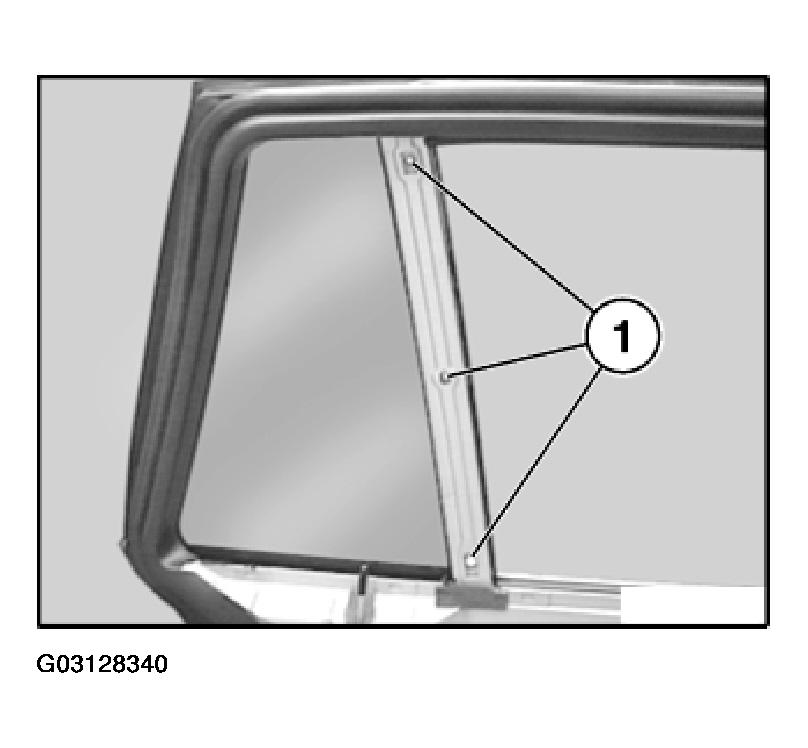

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber guide (1) and remove trim (2) upwards.

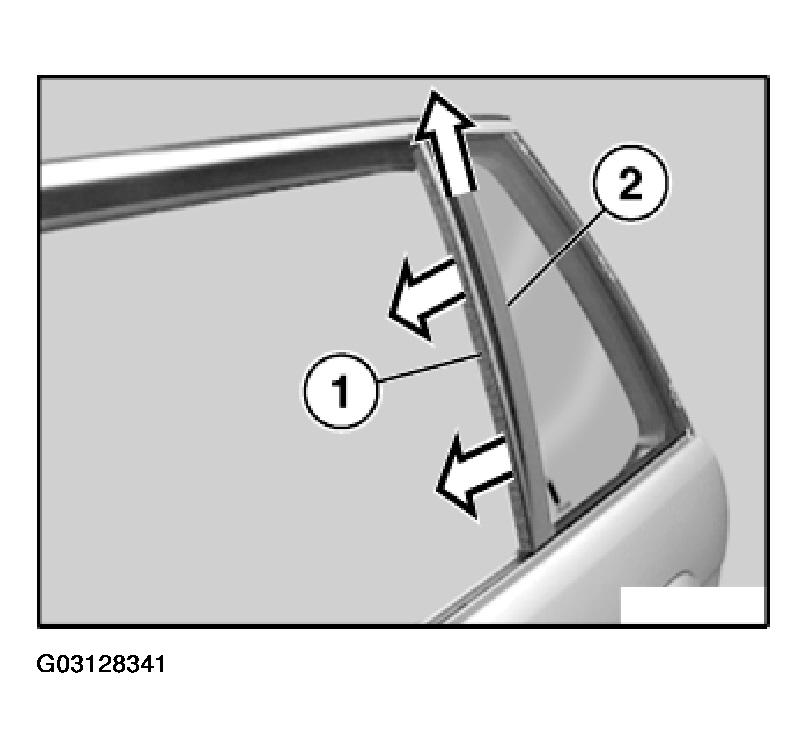

Fig 2: Detaching Rubber Guide & Removing Trim Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and lift door window (2) upwards.

Installation:

Fit screw (1) with washer.

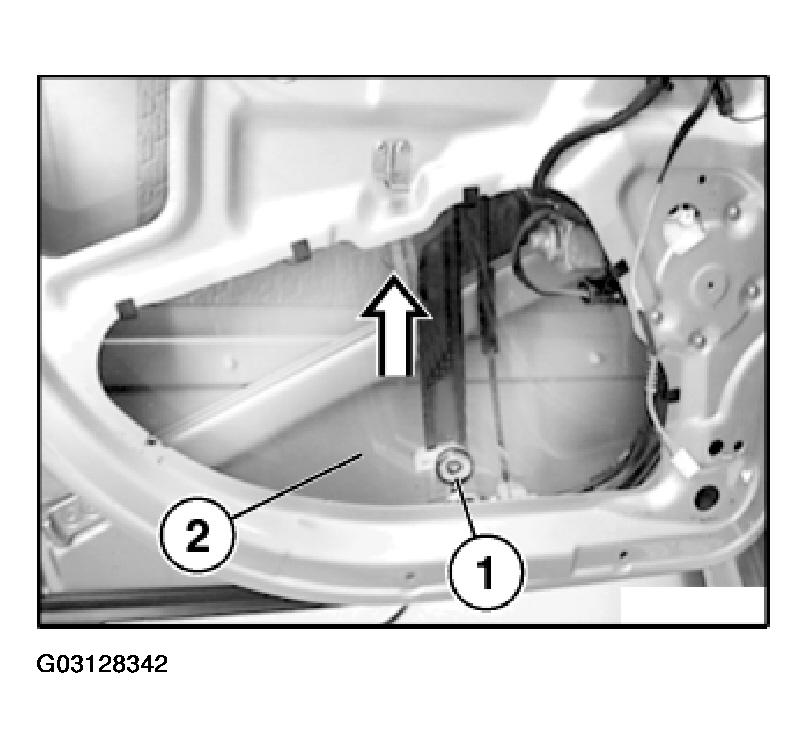

Fig 3: Releasing Screw & Lifting Door Window Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Remove window glass by pulling upward at an angle.

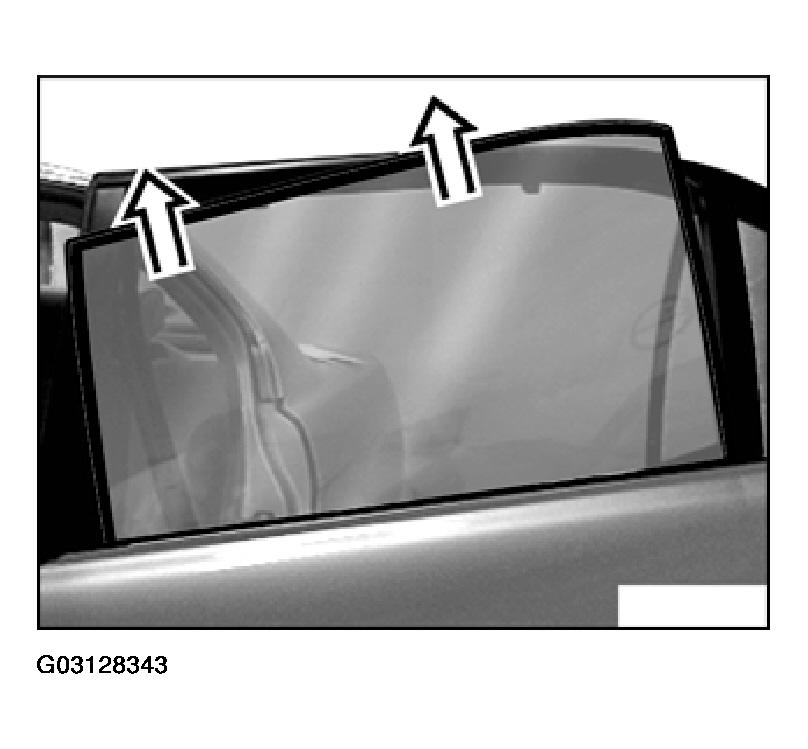

Fig 4: Removing Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
