51 22 300 Removing and installing/replacing window cavity cover strip on rear door on left or right

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

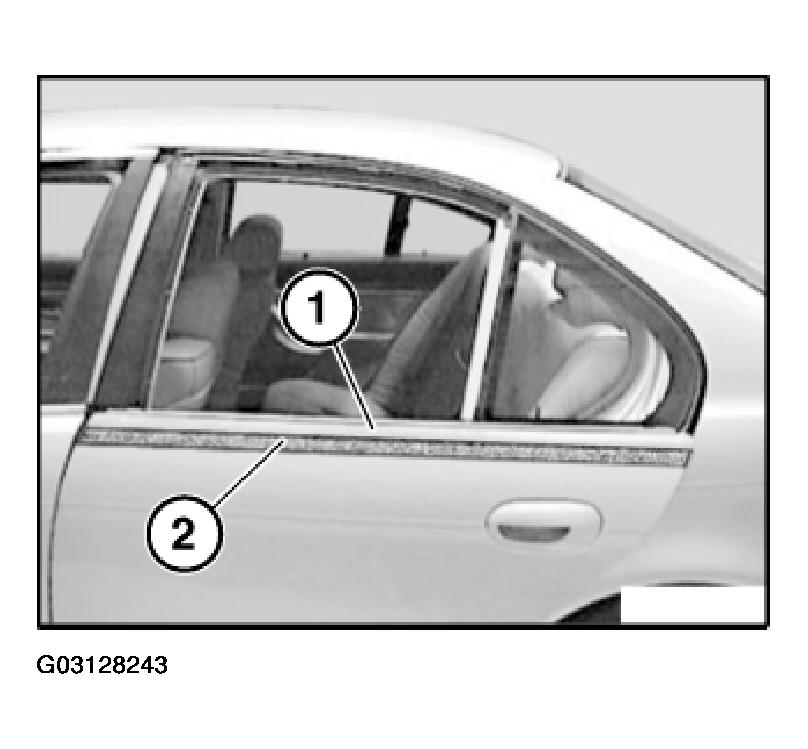

Stick adhesive tape (2) below window cavity cover strip (1) (risk of damage).

Fig 1: Sticking Adhesive Tape Below Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

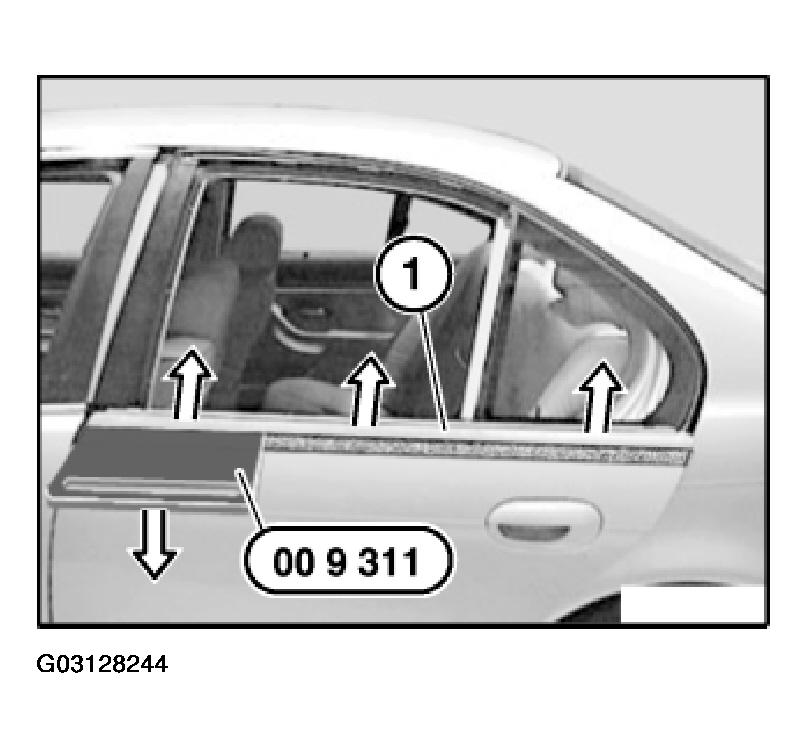

Using special tool 00 9 311 (beginning at front proceeding to rear), lever out window cavity cover strip (1).

Installation:

Apply a thin coat of turpentine substitute to window cavity cover strip (1).

Window cavity cover strip (1) must be flush with door edge at front and rear.

Fig 2: Checking Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
