51 49 000 Removing and installing/replacing trim for trunk lid (top)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for bottom of trunk lid,

refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER TRUNK LID

Lift off cover caps (1) and loosen screws.

Open tool box, lift out catch band and lift tool box upwards to remove.

Fig 1: Lifting Off Cover Caps & Loosening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out luggage compartment light (1).

Unfasten clips (2) and remove trim for trunk lid.

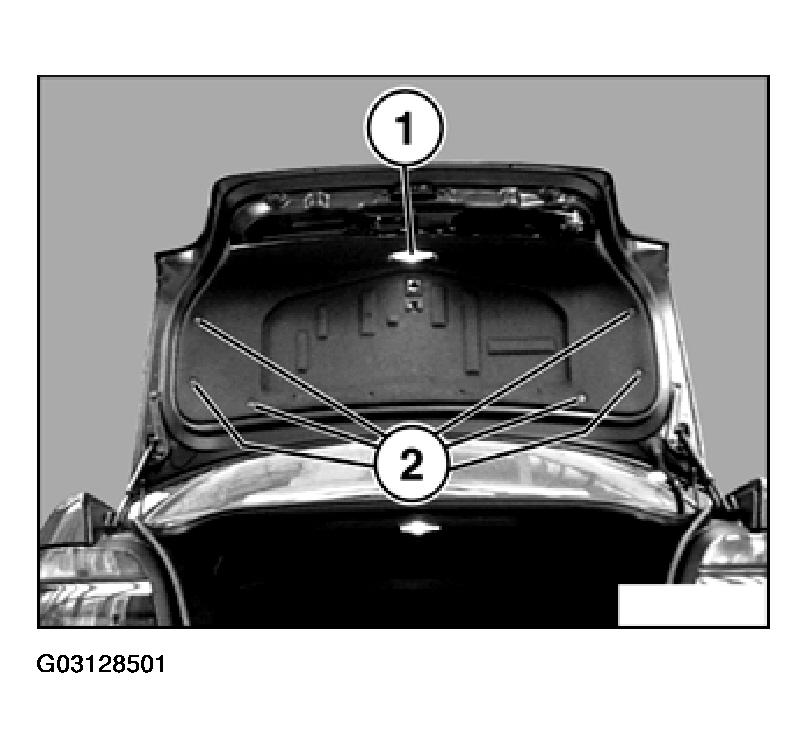

Fig 2: Removing Trim For Trunk Lid

Courtesy of BMW OF NORTH AMERICA, INC.
