51 12 801 Replacing bracket for rear bumper at left or right (bumper removed)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove and refit complete rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER

Installation:

If necessary, mark position of bracket on body.

Unfasten screws and remove bracket (1).

Tightening torque. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

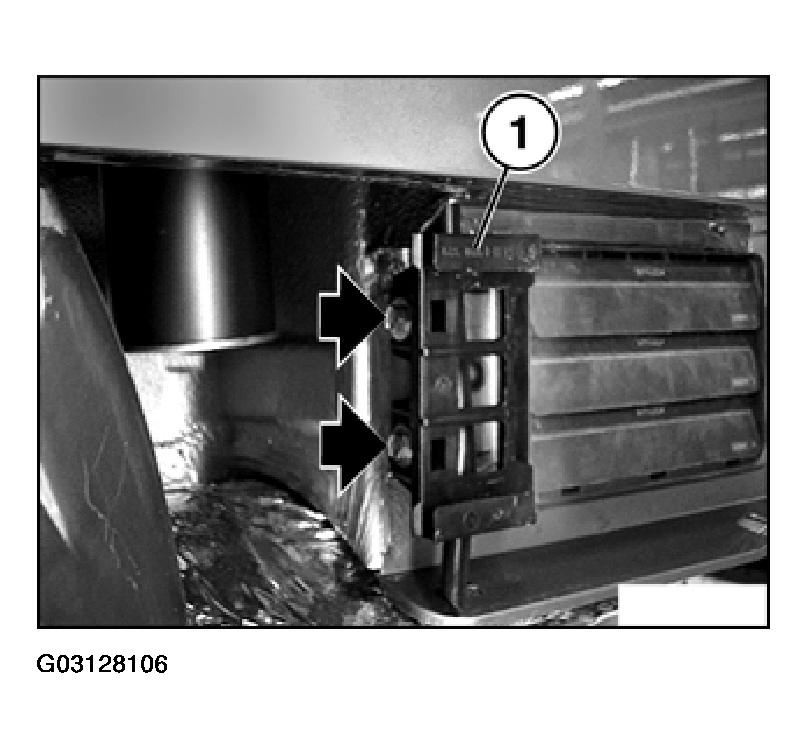

Fig 1: Unfastening Screws & Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Distance (A) on side between bumper and body-cutout is to be the same.

Dimension (A) = 5 +/- 1 mm

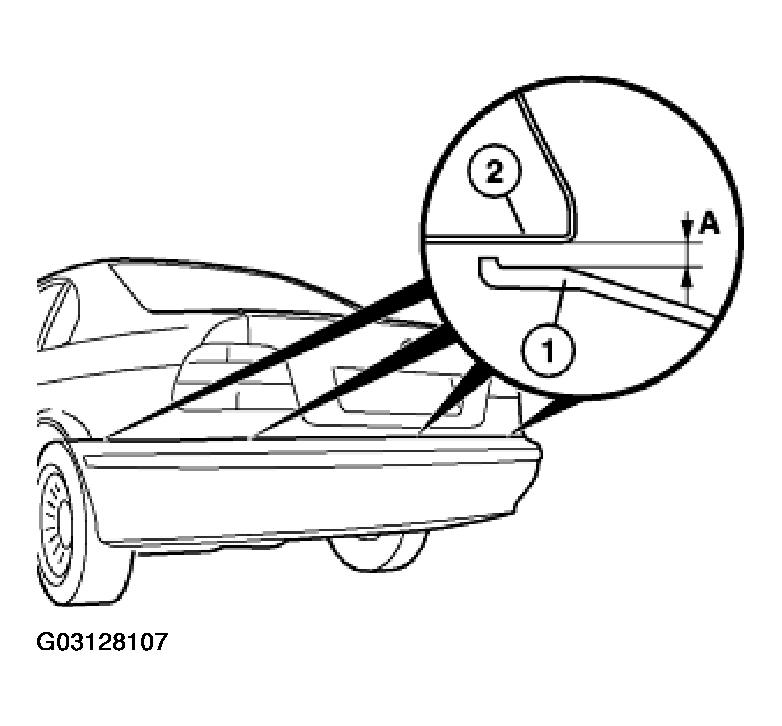

Fig 2: Identifying Ideal Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.
