5116 361 Replace right glovebox

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove right glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

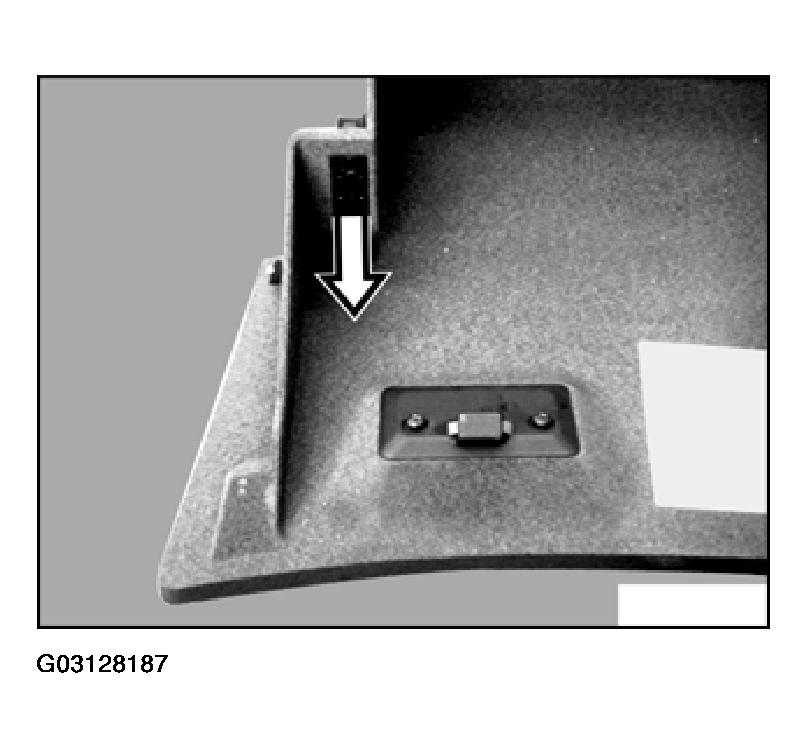

Unclip power connection for accumulator light.

Fig 1: Unclipping Power Connection For Accumulator Light

Courtesy of BMW OF NORTH AMERICA, INC.

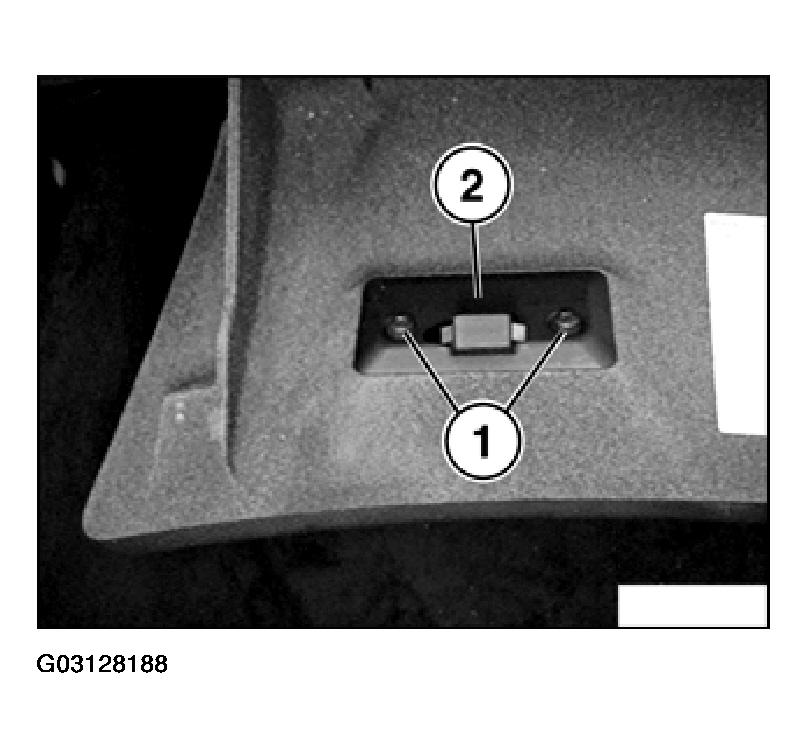

Unscrew bolts (1). Remove upper and lower (2) sections of lock.

Fig 2: Removing Upper & Lower Sections Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

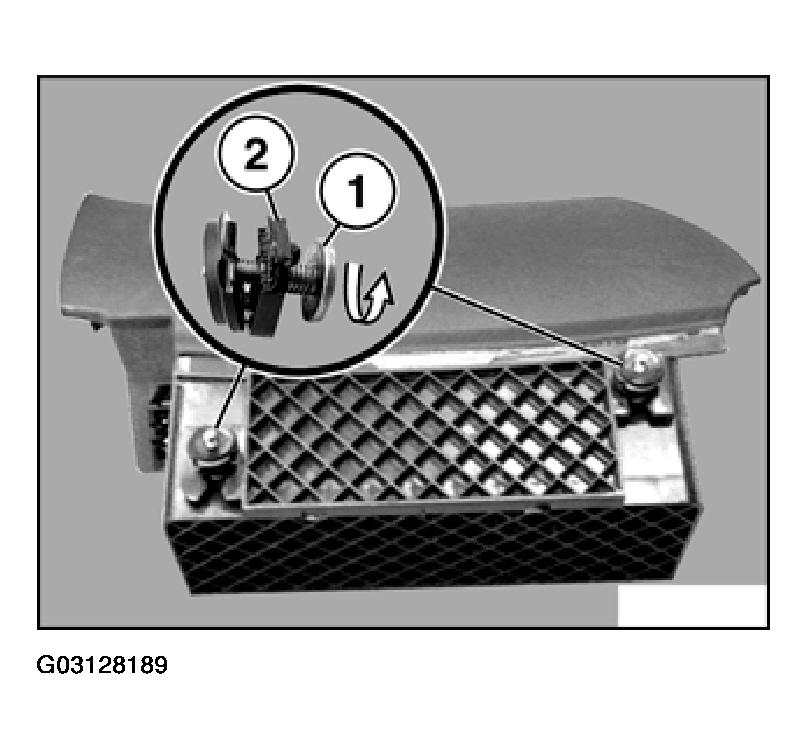

By twisting the screw (1) the height of the clamp bearing (2) and the glovebox is adjusted.

Fig 3: Adjusting Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.
