51 16 201 Replacing oddments tray

Removing center console, refer to 51 16 200 REMOVING AND INSTALLING ODDMENTS TRAY

Version with can holder:

If necessary open both can holders (1) slightly.

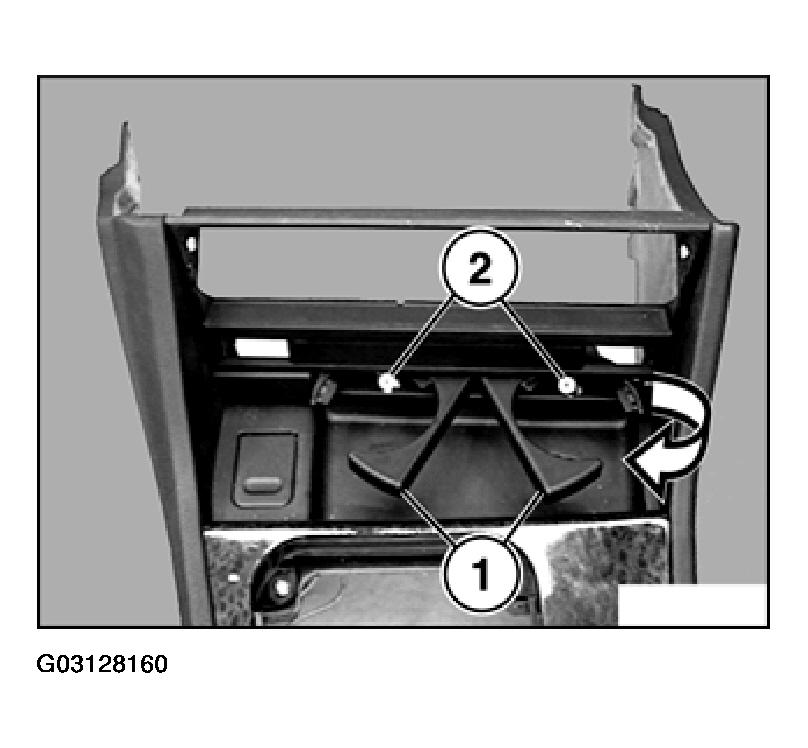

Unfasten screws (2), lift can holder to one side and remove.

Fig 1: Unfastening Screws, Lifting Can Holder To One Side & Removing

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1 ) and remove frame (2) for heater controls.

Fig 2: Unfastening Screws & Removing Frame For Heater Controls

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts (1).

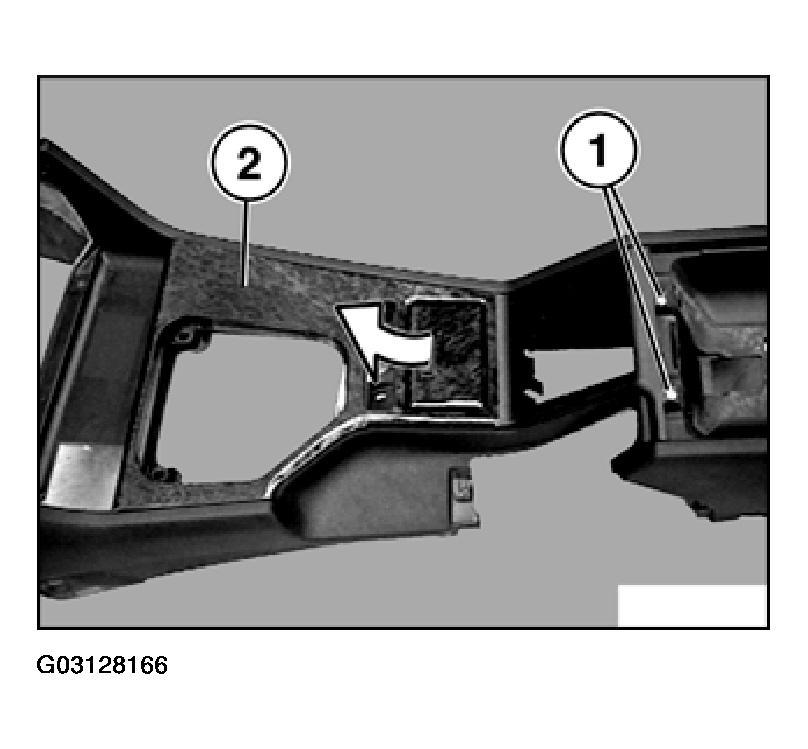

Unfasten connector (2), remove and lift off oddments tray (3) with cigar lighter.

Fig 3: Unfastening Connector, Removing & Lifting Off Oddments Tray With Cigar Lighter

Courtesy of BMW OF NORTH AMERICA, INC.

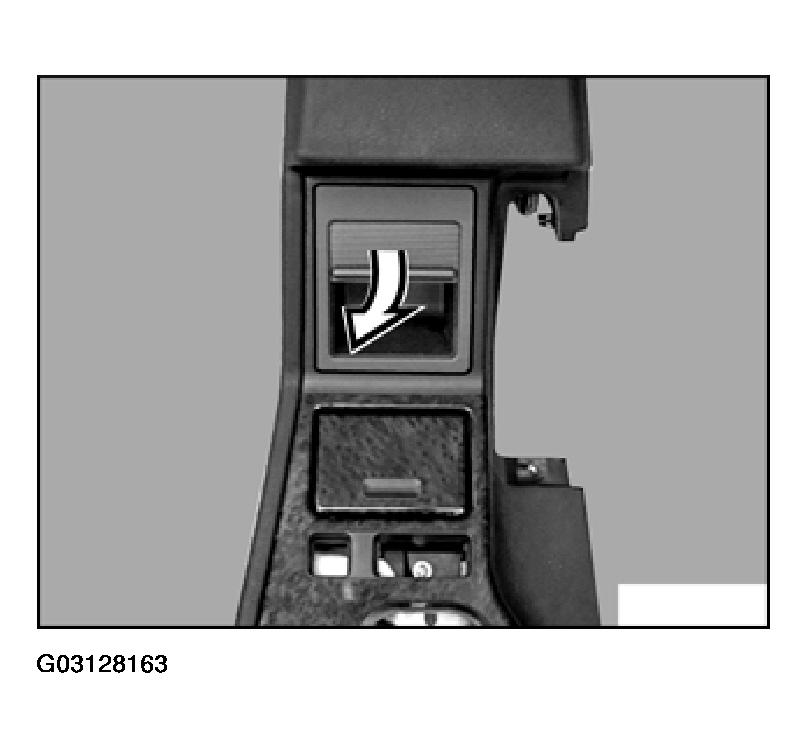

Unclip insert in oddments tray and remove.

Fig 4: Unclipping Insert In Oddments Tray & Removing

Courtesy of BMW OF NORTH AMERICA, INC.

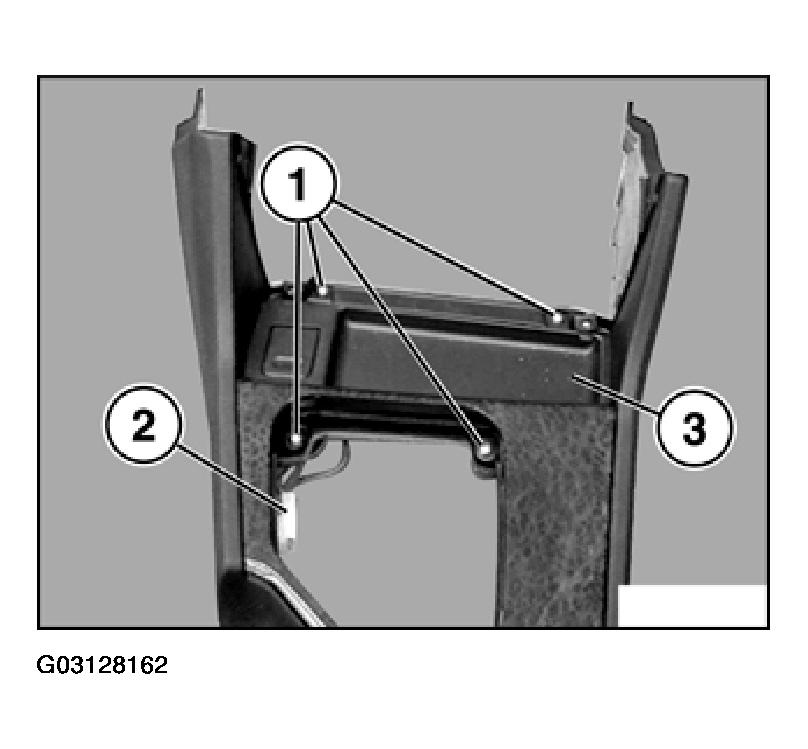

Unfasten screws (1) and nuts (2).

Fig 5: Unfastening Screws & Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

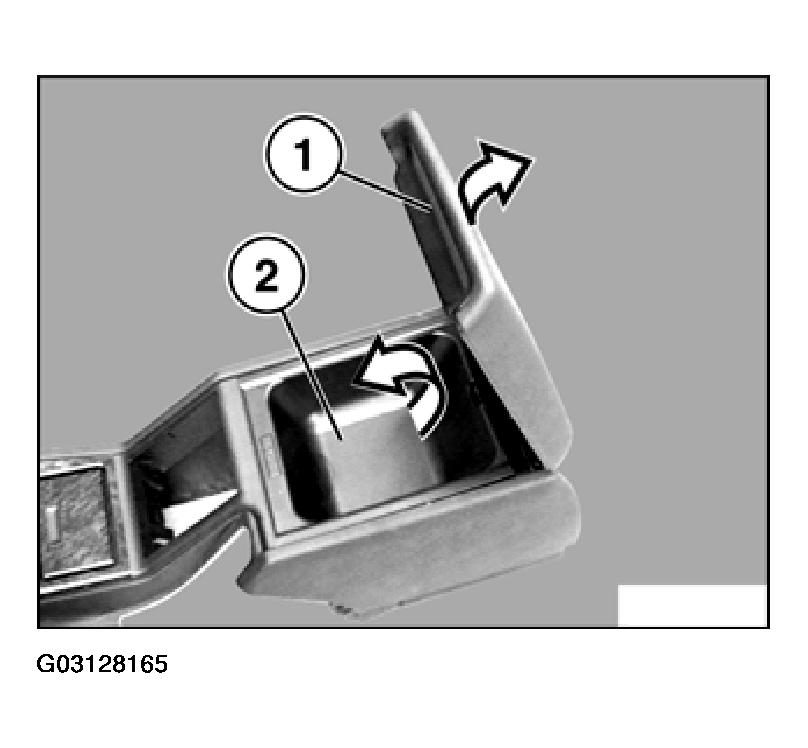

Open cover (1) and remove oddments tray (2) (rear).

Fig 6: Removing Oddments Tray (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.

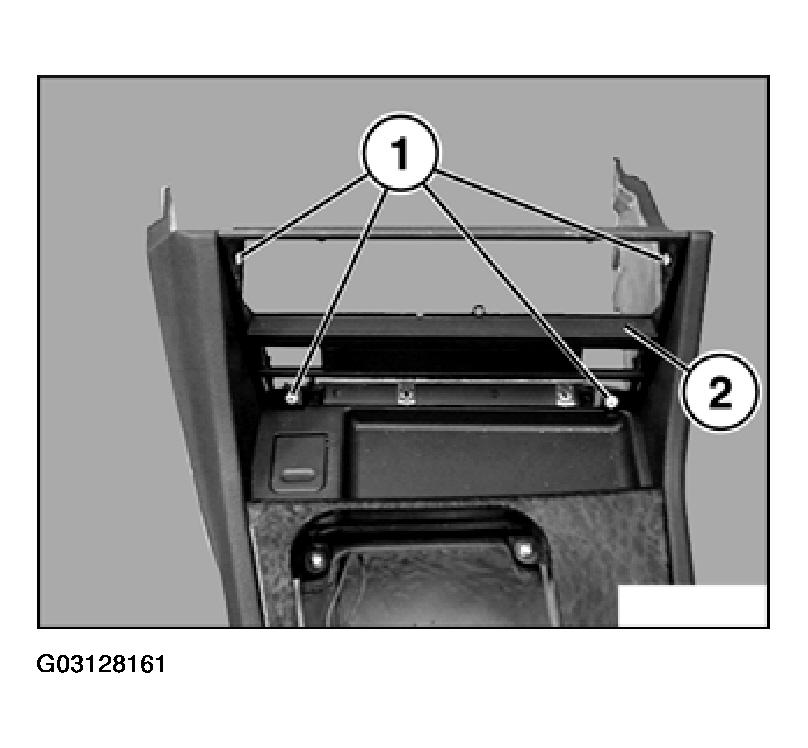

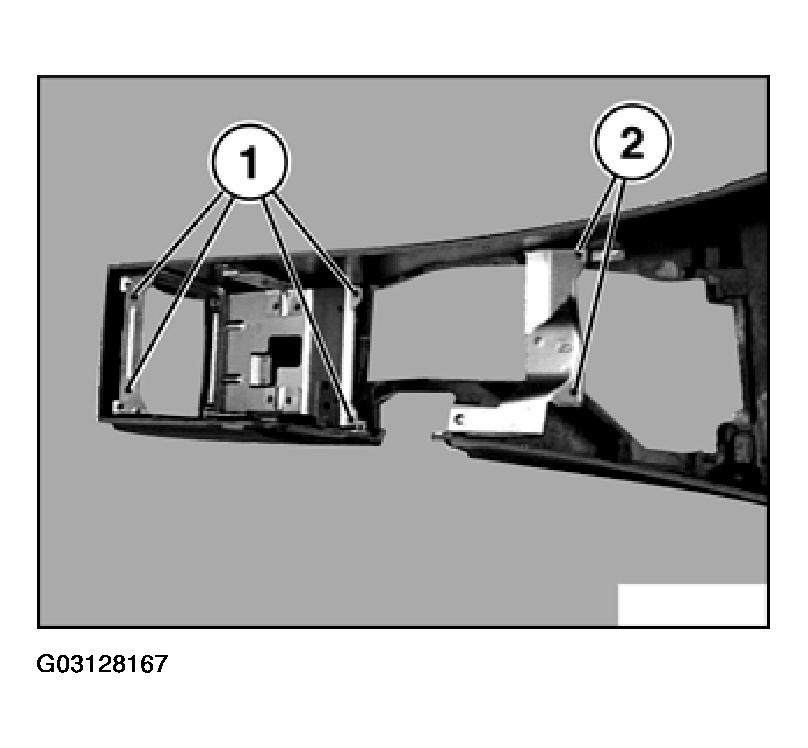

Unfasten screws (1) and remove insert (2) from center console.

Fig 7: Removing Insert From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

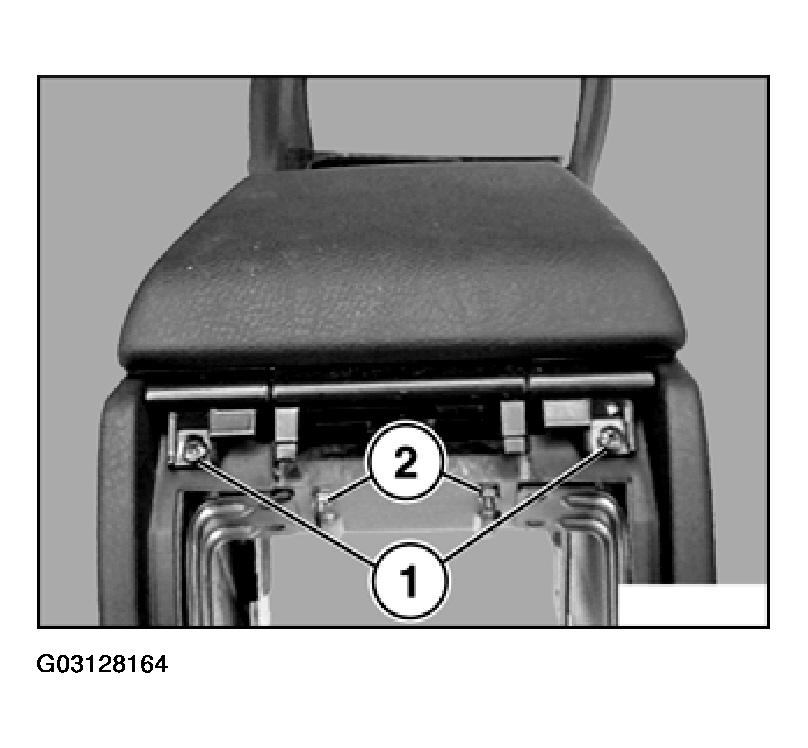

Unfasten screws (1) and remove rear bracket. Unfasten screws (2) and remove front bracket.

Fig 8: Removing Front Bracket
