51 45 051 Replace trim for upper section of instrument panel

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for upper section of instrument panel,

refer to 51 45 050 REMOVING AND INSTALLING TRIM FOR UPPER SECTION OF INSTRUMENT PANEL

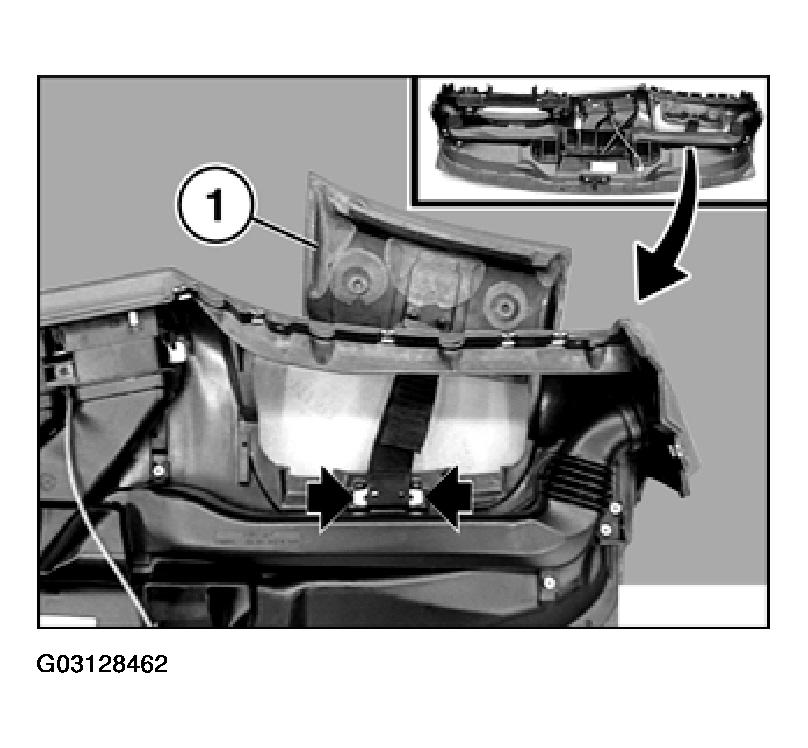

Fig 1: Unfastening Screws & Removing Cover For Passenger Airbag

G03128462

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove cover (1) for passenger airbag.

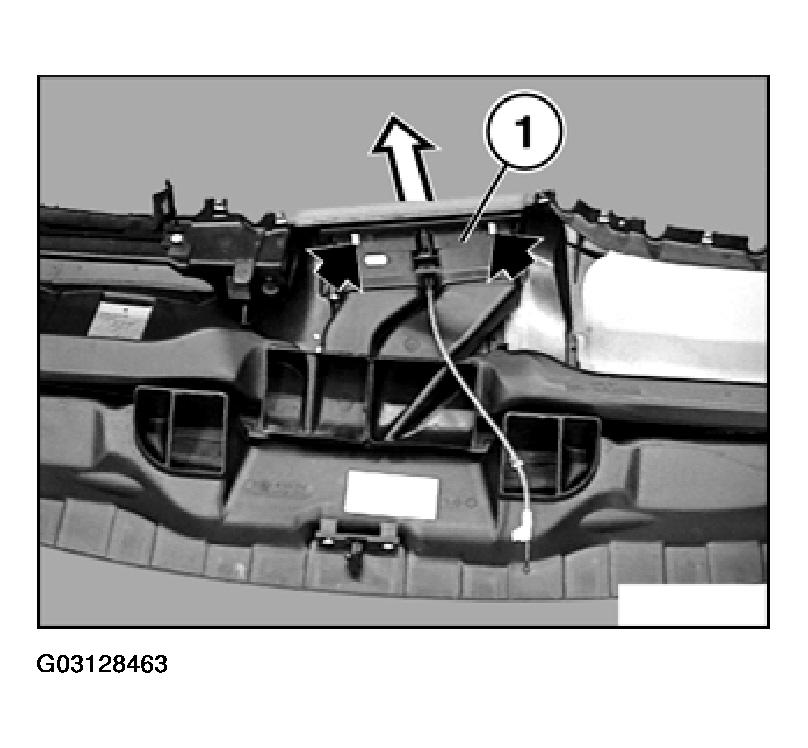

Fig 2: Depressing Interlock & Removing Fresh Air Grill

G03128463

Courtesy of BMW OF NORTH AMERICA, INC.

Depress interlock and remove fresh air grill (1) (center).

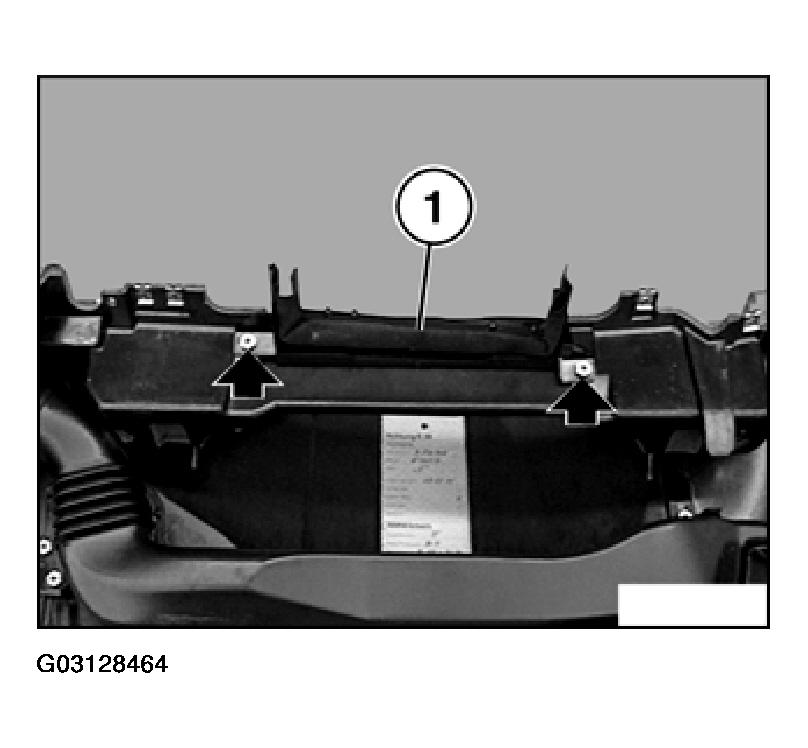

Fig 3: Removing Rubber Gaiter For Steering Column

G03128464

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove rubber gaiter for steering column from instrument panel (1).

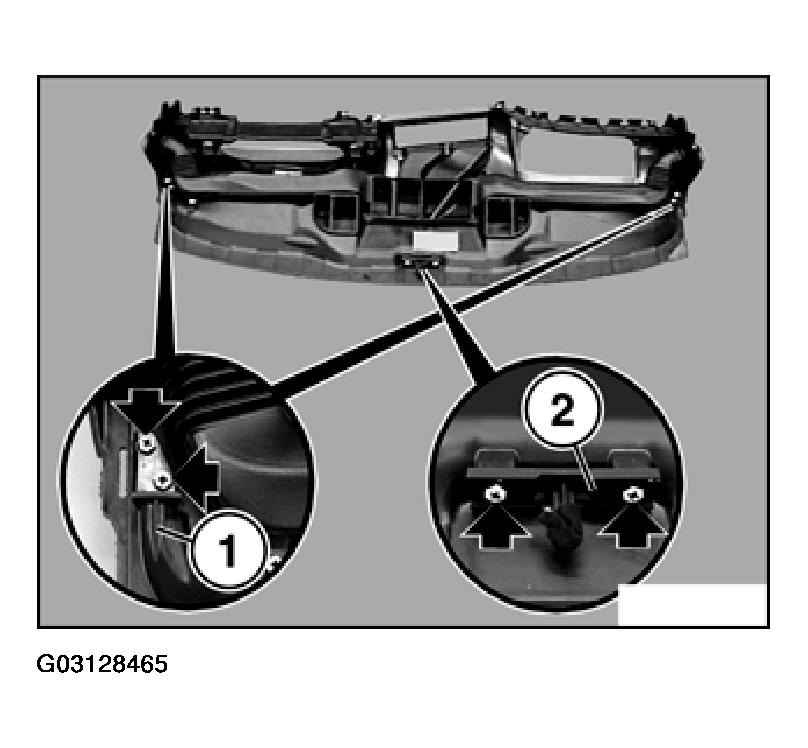

Fig 4: Removing Outer & Center Brackets

G03128465

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove outer (1) and center (2) brackets.

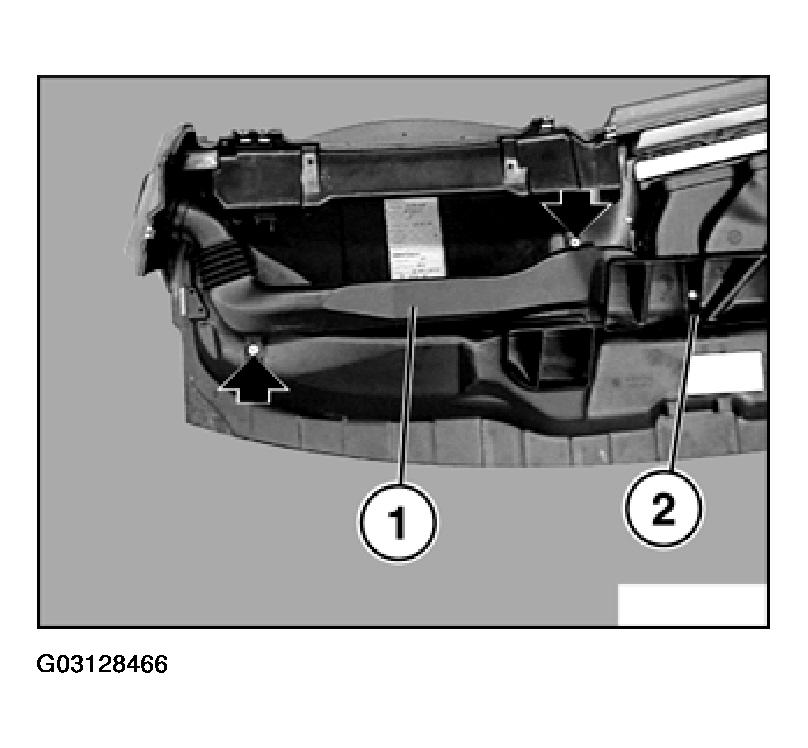

Fig 5: Removing Left Air Duct In Center

G03128466

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts.

Detach and remove left air duct (1) in center (2).

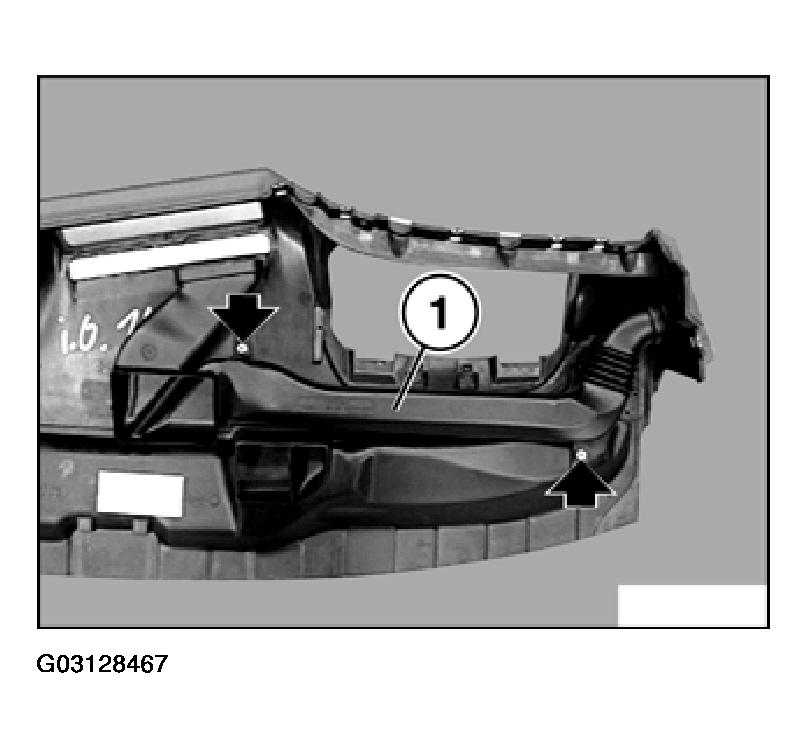

Fig 6: Removing Right Air Duct

G03128467

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove right air duct (1).

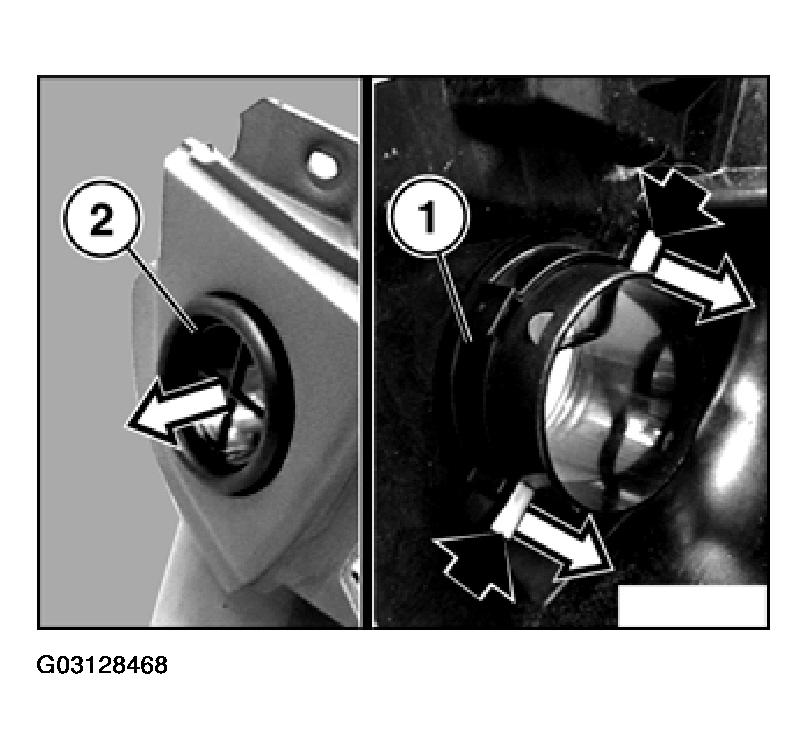

Fig 7: Pressing Down Detent & Removing Bracket

G03128468

Courtesy of BMW OF NORTH AMERICA, INC.

Press down detent and remove bracket (1).

Pull grill for left/right air duct (2) outwards to remove.

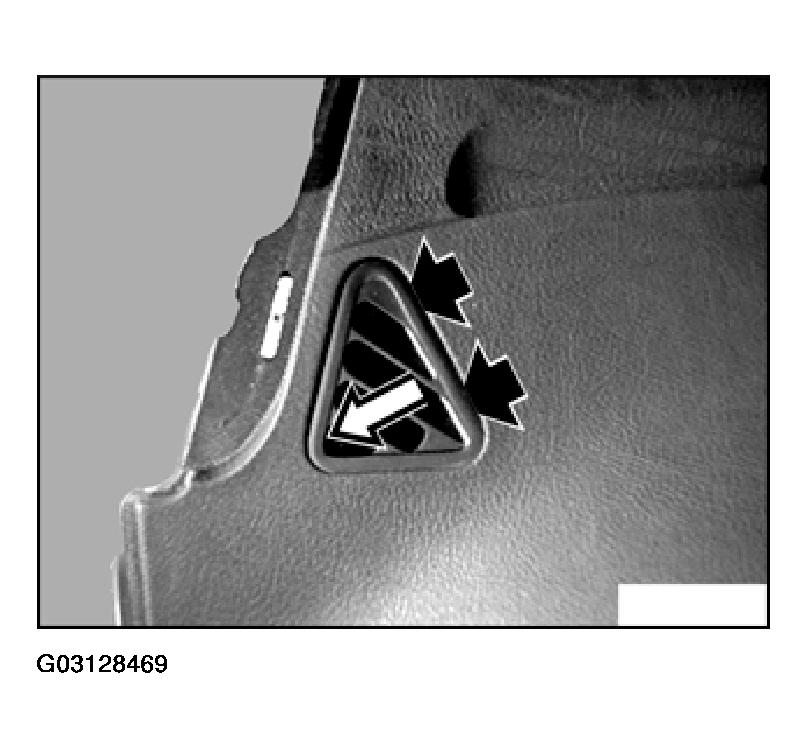

Fig 8: Lifting Out Grill For Top Left/Right Air Duct

G03128469

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out grill for top left/ right air duct.

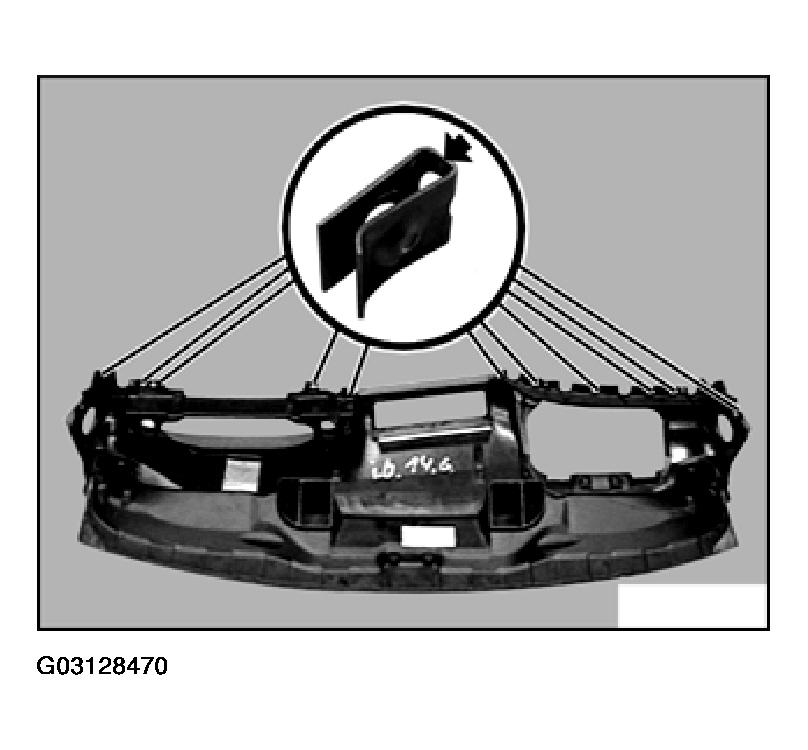

Fig 9: Removing Clips & Sliding Onto New Trim For Upper Section Of Instrument Panel

G03128470

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove all clips and slide onto new trim for upper section of instrument panel.
