51 45 031 Replace trim for instrument panel (lower section)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for lower section of instrument panel, refer to 51 45 030 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL (LOWER SECTION)

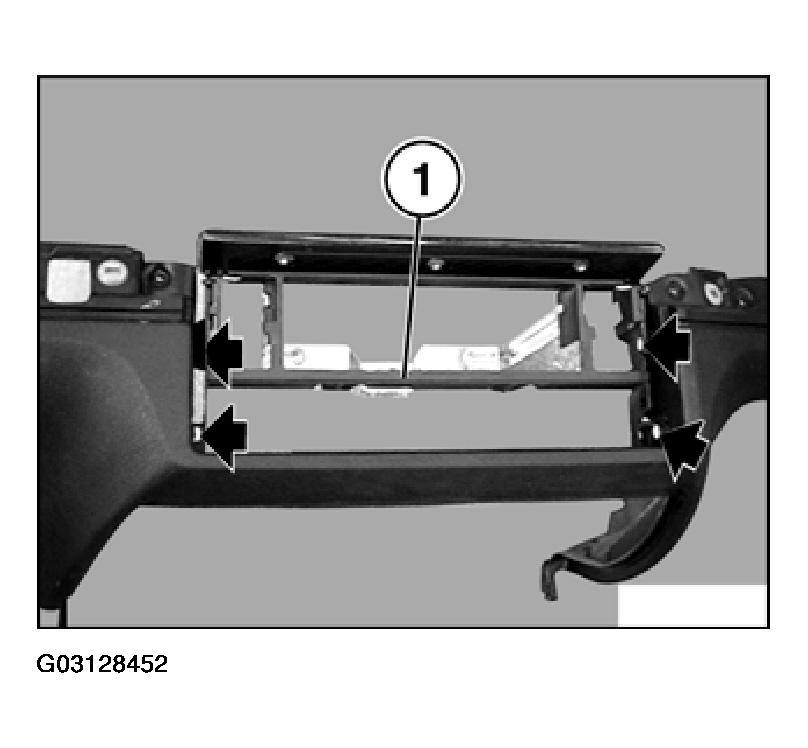

Fig 1: Unfastening Screws & Removing Frame For Radio

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove frame (1) for radio.

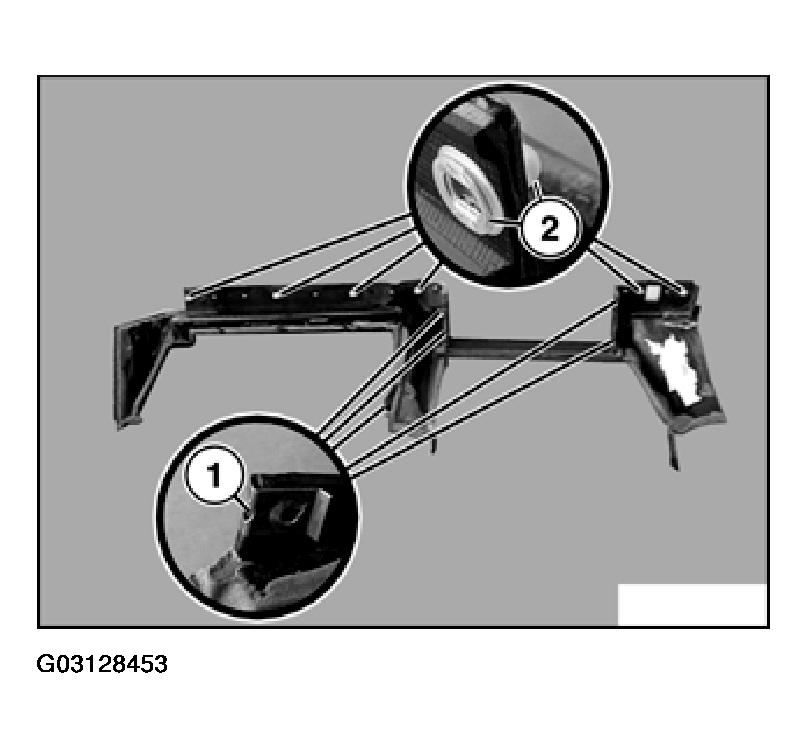

Fig 2: Removing Tab Washers & Grommets From Lower Section Of Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all tab washers (1) and grommets (2) from lower section of instrument panel.
