51 45 030 Removing and installing trim for instrument panel (lower section)

Disconnect battery negative lead.

Remove and install panel on instrument carrier,

refer to 62 21 000 REMOVING AND INSTALLING COMPLETE IN .

Remove and install radio receiver,

refer to 65 11 030 REMOVING AND INSTALLING / REPLACING RADIO RECEIVER .

If necessary, remove and install complete on-board monitor,

refer to 65 52 510 REMOVING AND INSTALLING ON-BOARD MONITOR .

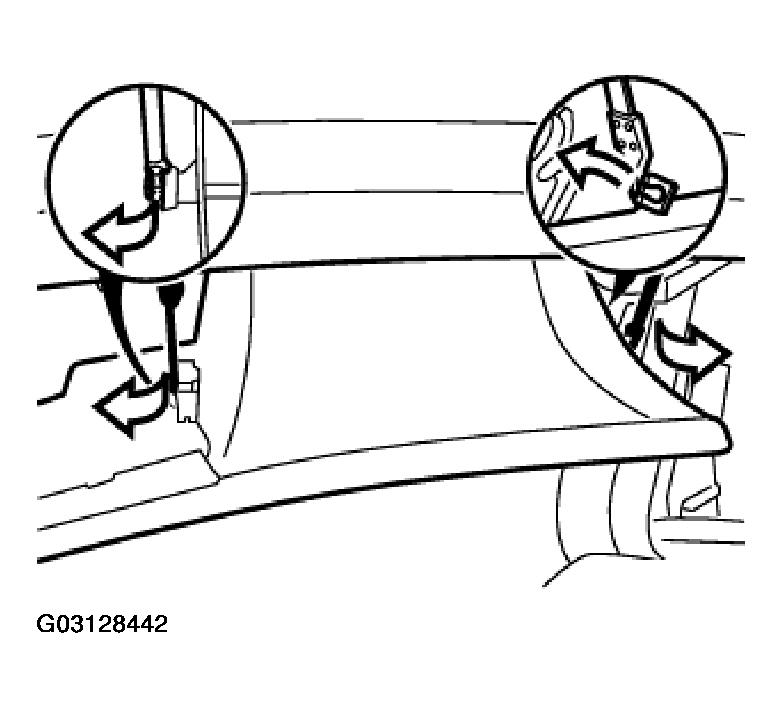

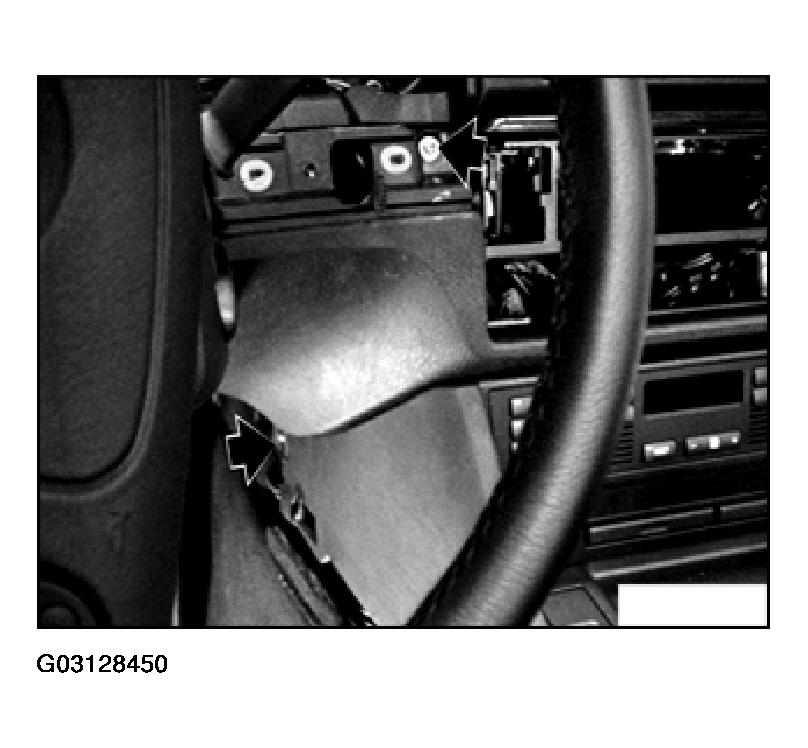

Fig 1: Unclipping Shock Absorber & Catch Band

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip shock absorber and catch band.

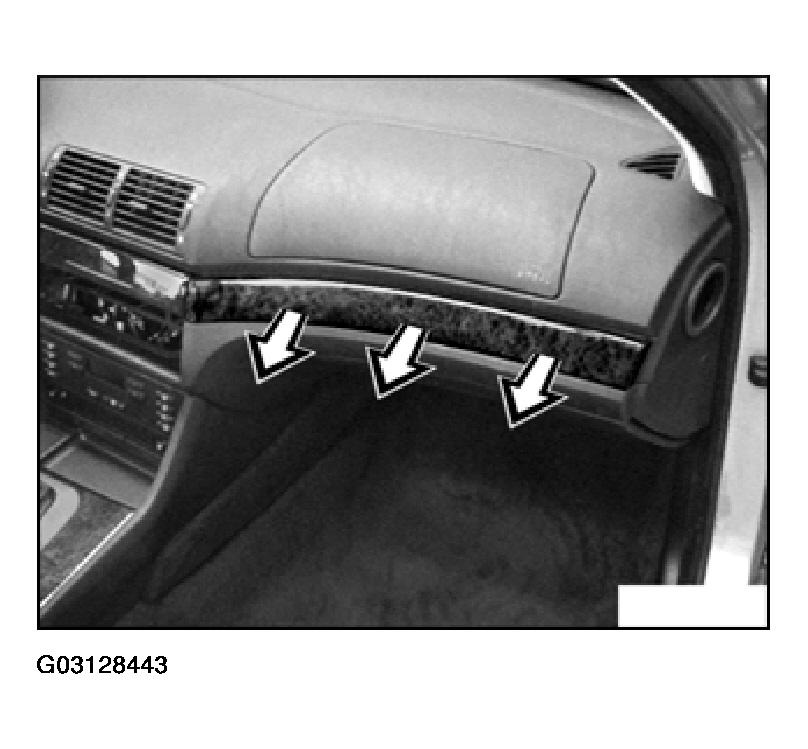

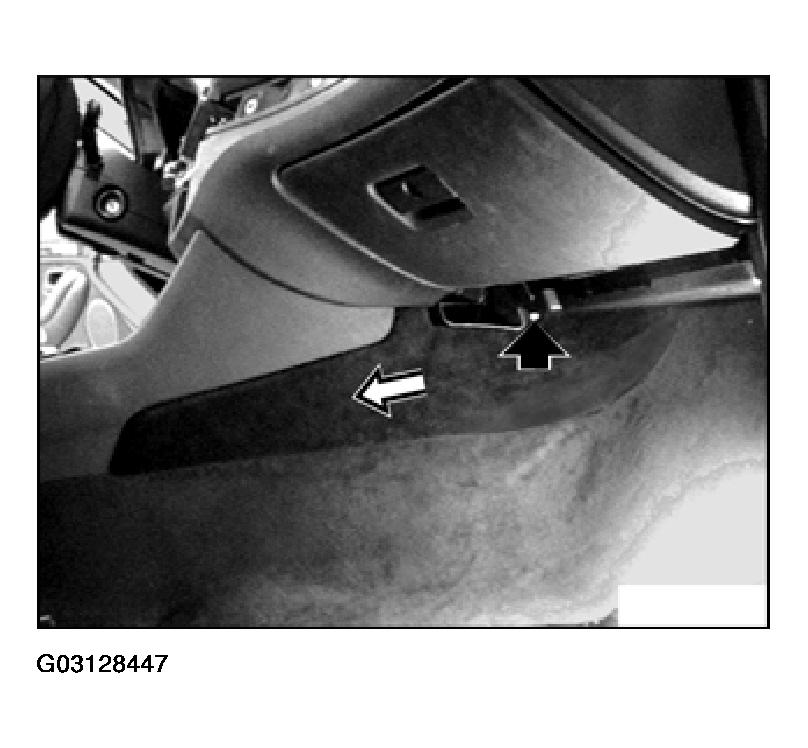

Fig 2: Unclipping Wooden Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip wooden finisher strip.

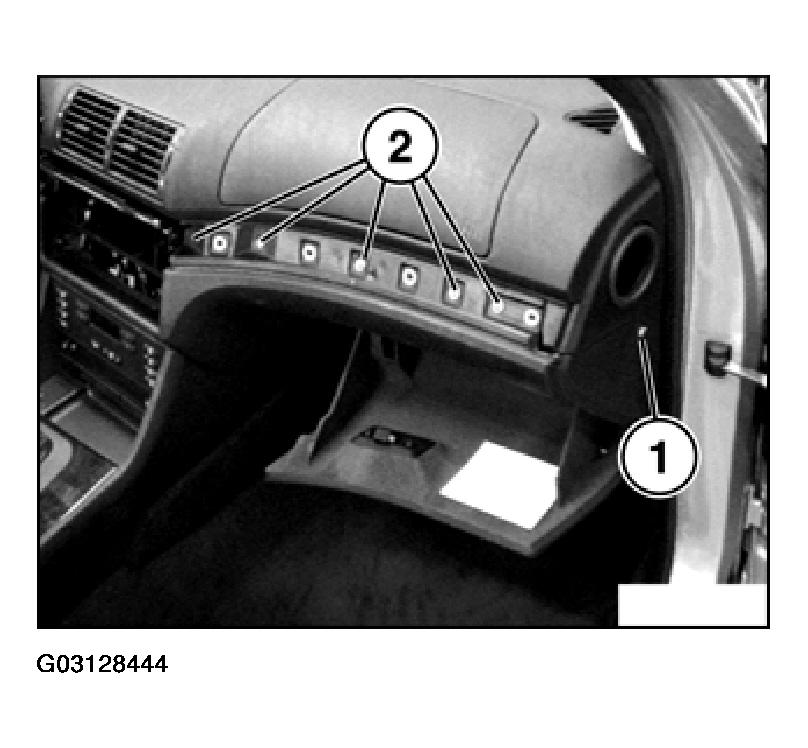

Fig 3: Lifting Off Outer Cap & Unfastening Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off outer cap (1) and unfasten screw. Unfasten screws (2).

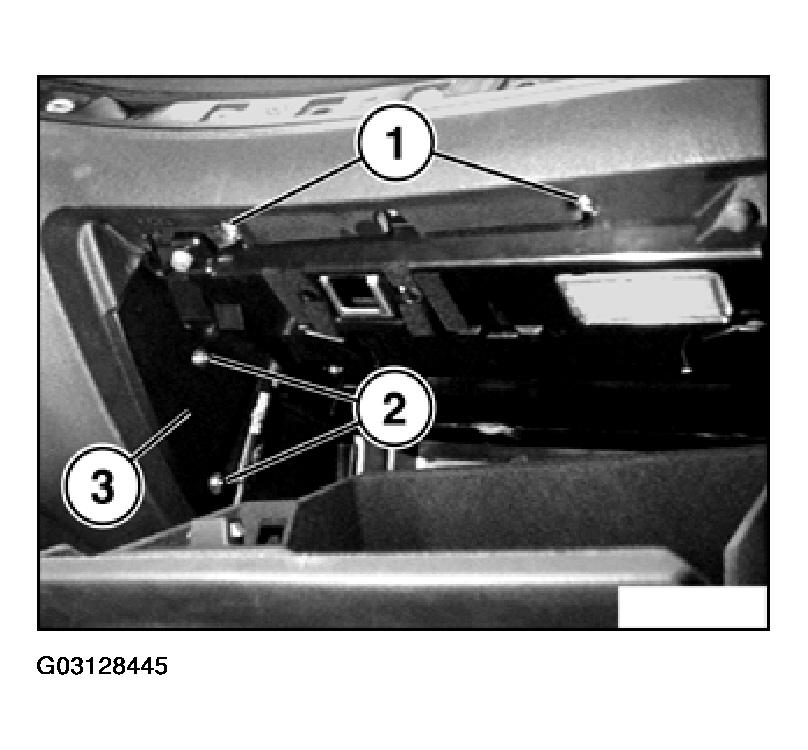

Fig 4: Removing Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws (1 and 2).

Remove finisher strip (3).

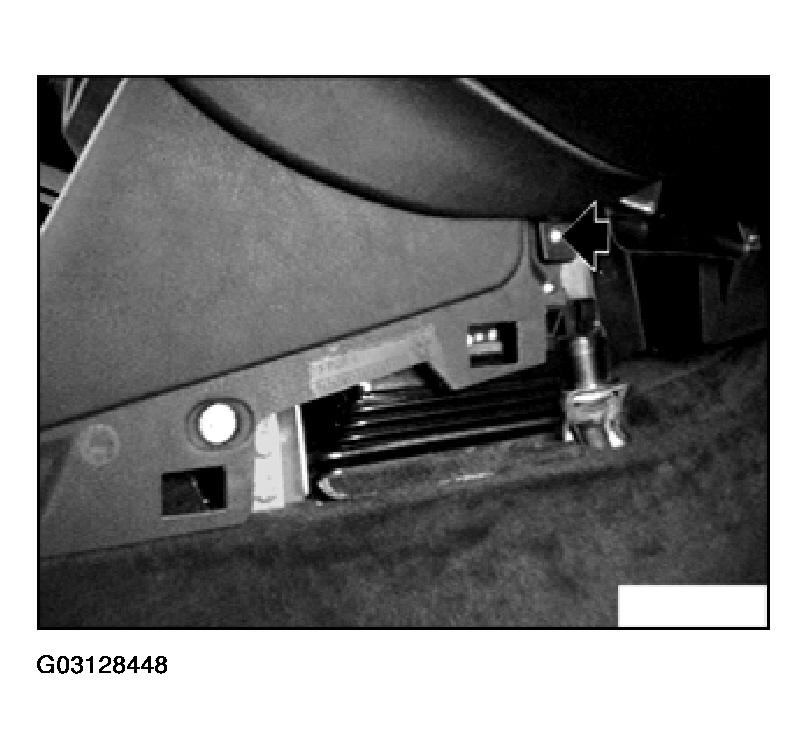

Fig 5: Unscrewing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw.

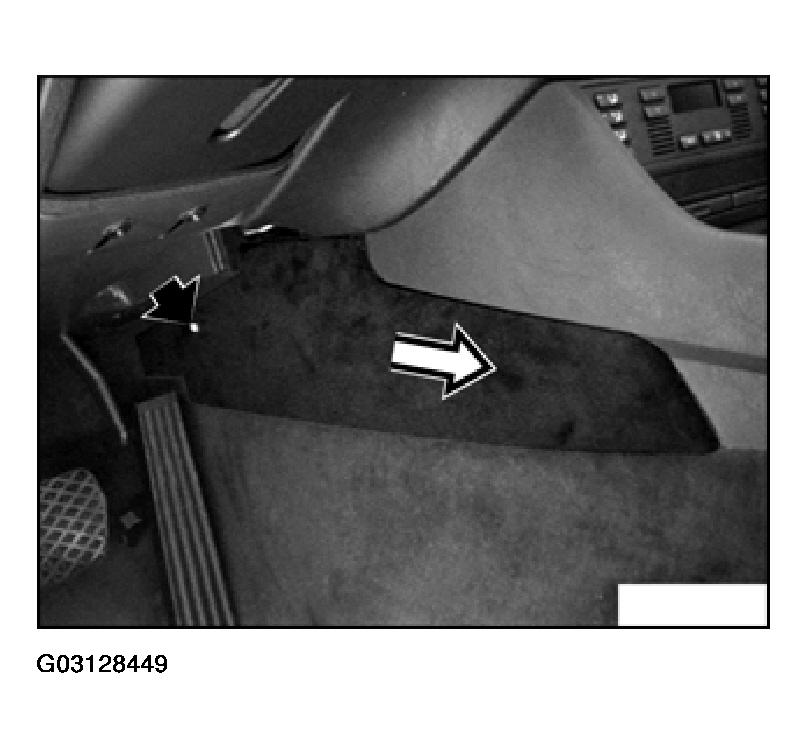

Fig 6: Unfastening Screw & Lifting Trim Panel Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw and lift trim panel backwards to remove.

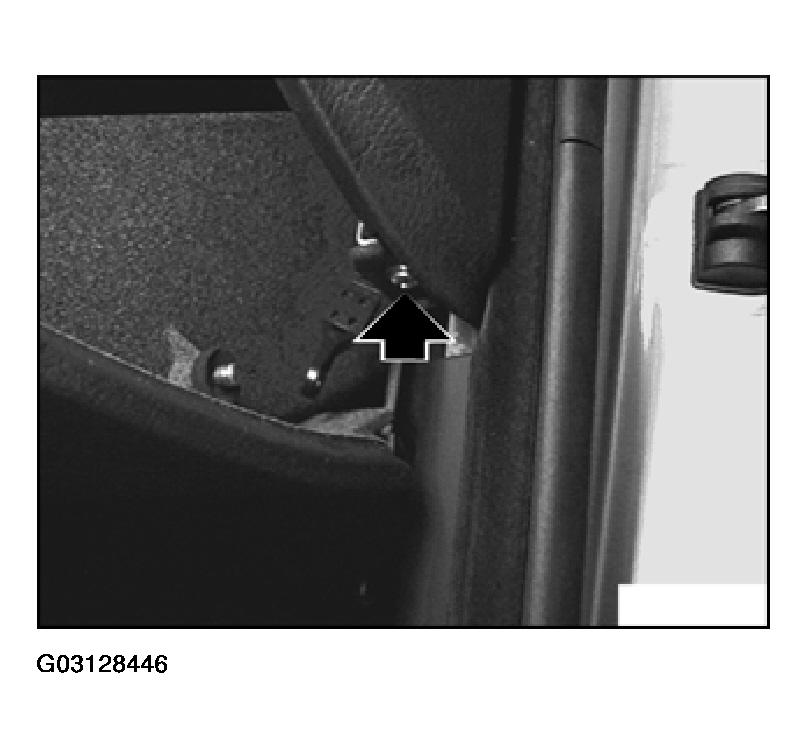

Fig 7: Unscrewing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw.

Fig 8: Unfastening Screw & Lifting Trim Panel Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw and lift trim panel backwards to remove.

Fig 9: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

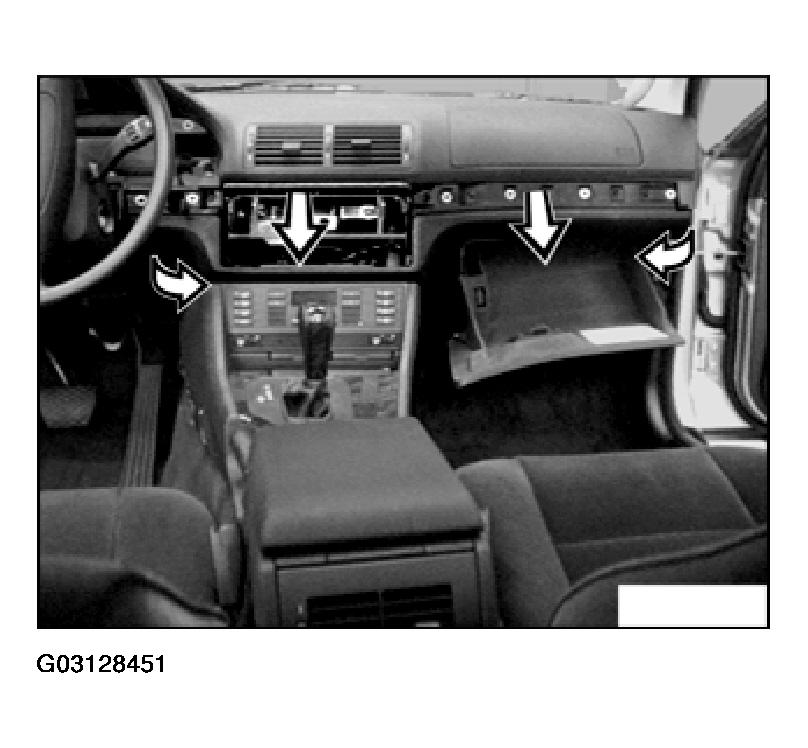

Fig 10: Levering Out Instrument Panel Lower Section At Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out instrument panel lower section at bottom, pull out towards rear and lift out to right front door.
