51 21 130 Removing and installing or replacing lock on left or right front door

(if necessary with lock cylinder) Remove door lock, refer to 51 21 090 REMOVING AND INSTALLING/REPLACING DOOR LOCK ON LEFT OR RIGHT FRONT DOOR

Only Version up to 5/96:

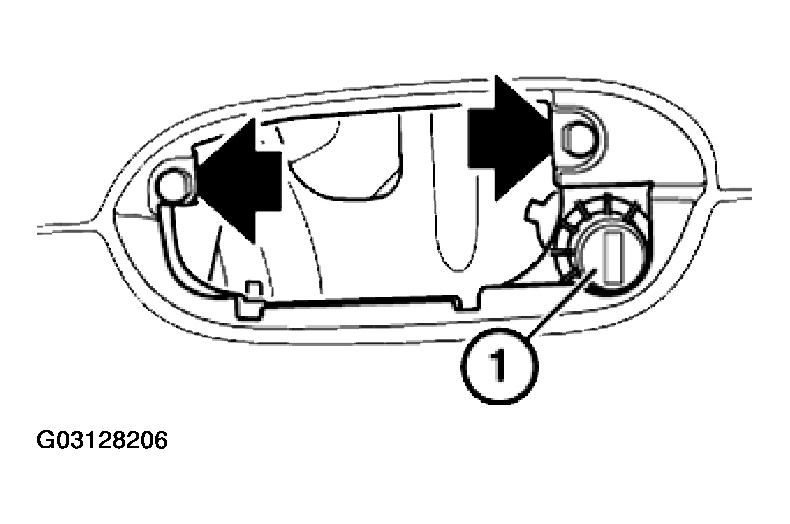

Unfasten nuts with washers. Remove locking unit (1) (carrier for outside door handle).

Installation:

Install screws with flat surfaces pointing towards one another.

Fig 1: Removing Locking Unit (Carrier For Outside Door Handle)

Courtesy of BMW OF NORTH AMERICA, INC.

Introduction: ongoing from 5/96:

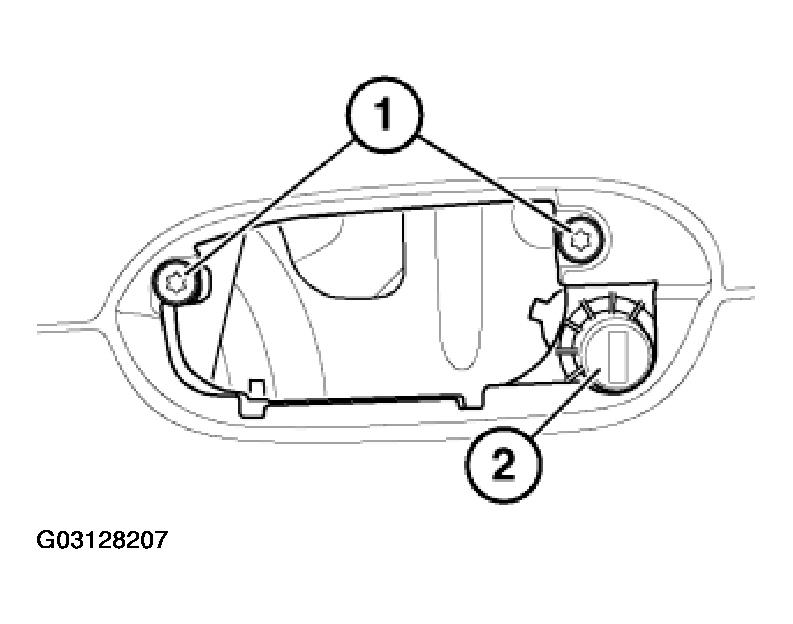

Unfasten screws (1) and remove locking unit (2) (carrier for outside door handle).

Fig 2: Removing Locking Unit (Carrier For Outside Door Handle)

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

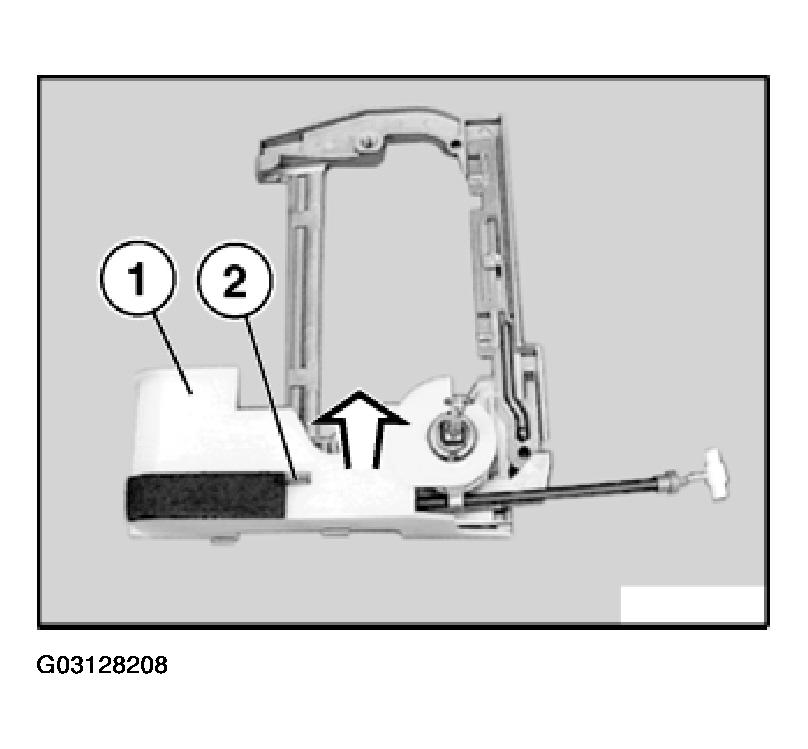

Unlock cover (1) with screwdriver through aperture (2) and remove.

Fig 3: Unlocking Cover With Screwdriver Through Aperture

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

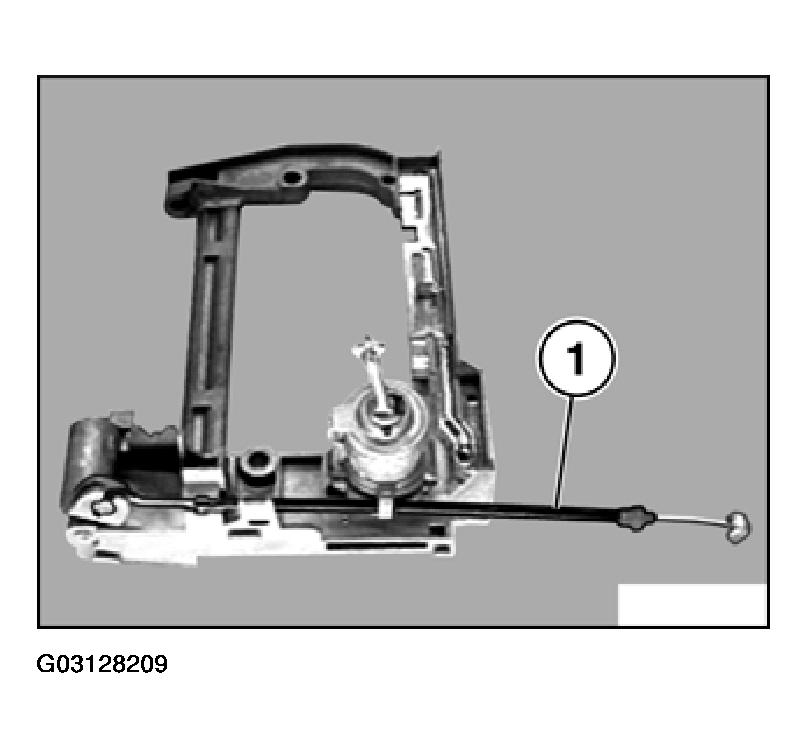

Disconnect Bowden cable (1) from locking unit.

Fig 4: Disconnecting Bowden Cable From Locking Unit

Courtesy of BMW OF NORTH AMERICA, INC.
