51 21 090 Removing and installing/replacing door lock on left or right front door

Disconnect battery negative lead.

Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Remove outside handle, refer to 51 21 170 REMOVING AND INSTALLING OR REPLACING OUTSIDE HANDLE FROM LEFT OR RIGHT FRONT DOOR .

Version with side airbag in front door:

refer to AIR BAG RESTRAINT SYSTEMS .

refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT

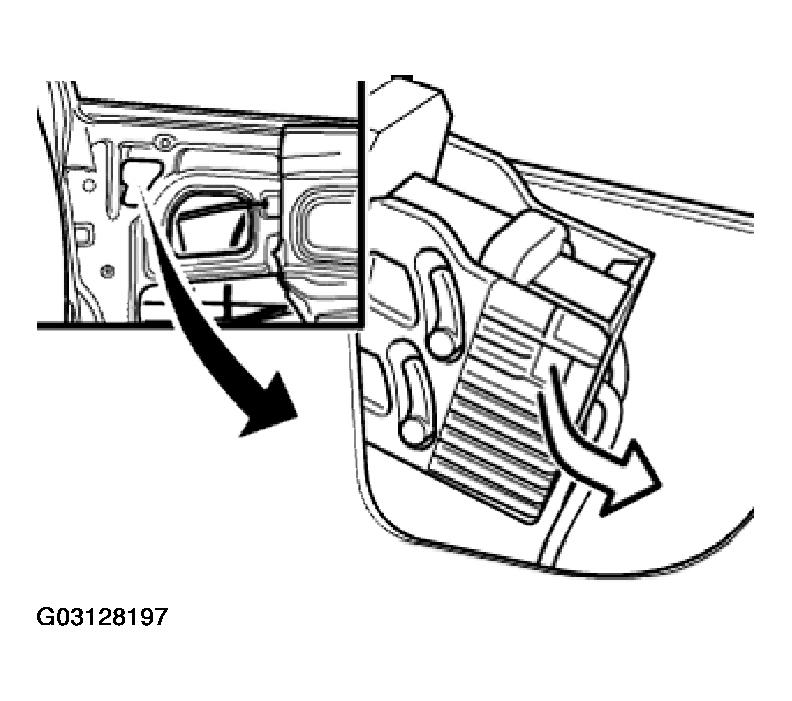

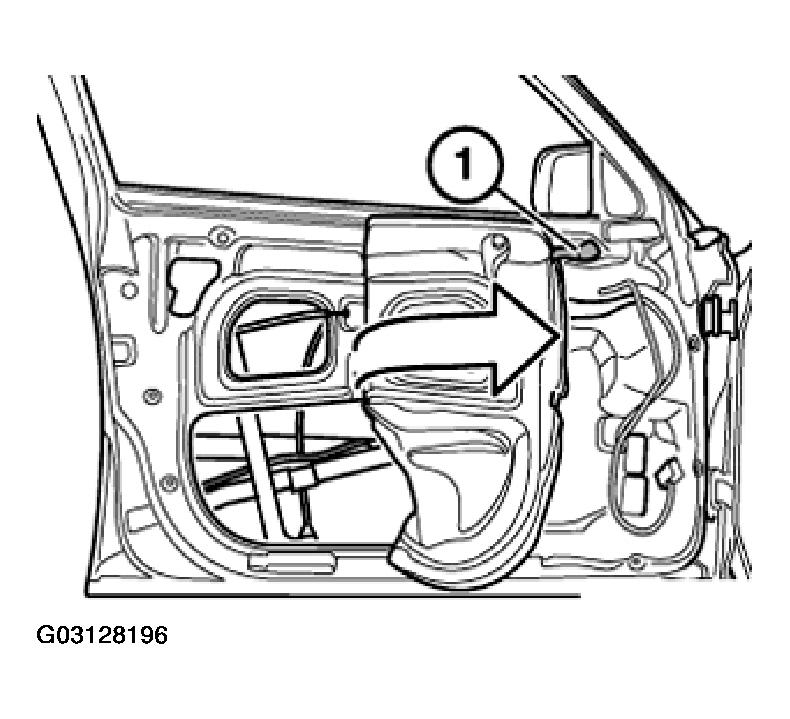

Partially detach sound insulation at rear and secure with adhesive tape (1).

Fig 1: Detaching Sound Insulation At Rear & Securing With Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

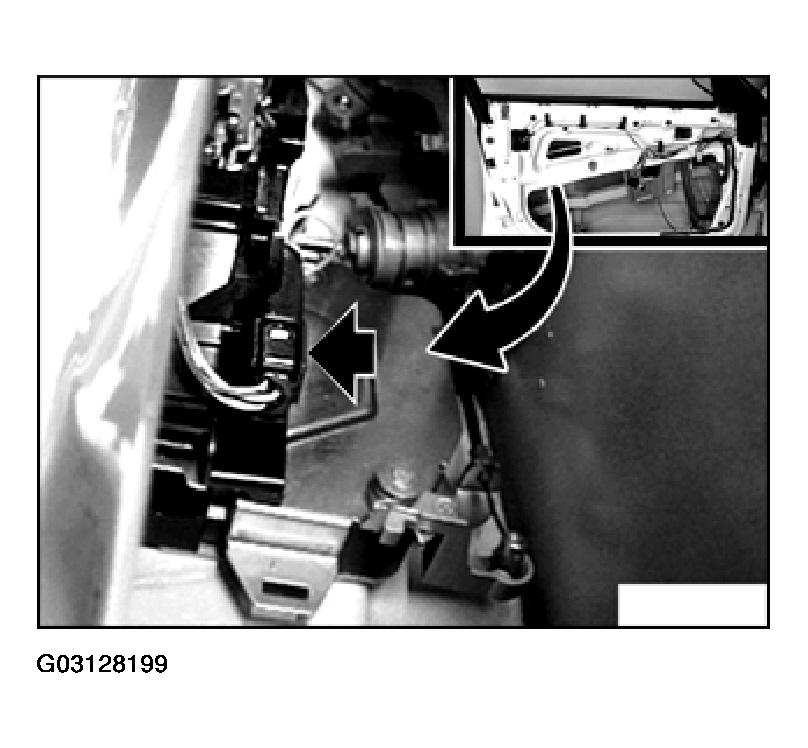

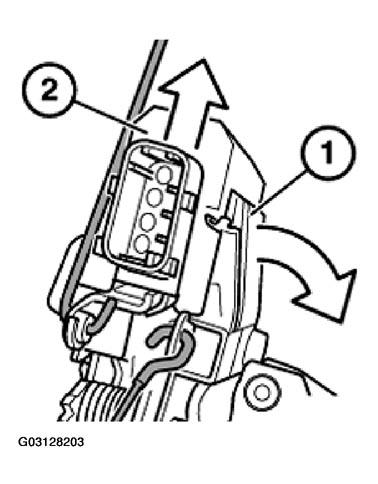

Remove connector (drive on door locking unit) by pulling downwards and backwards.

Fig 2: Removing Connector (Drive On Door Locking Unit)

Courtesy of BMW OF NORTH AMERICA, INC.

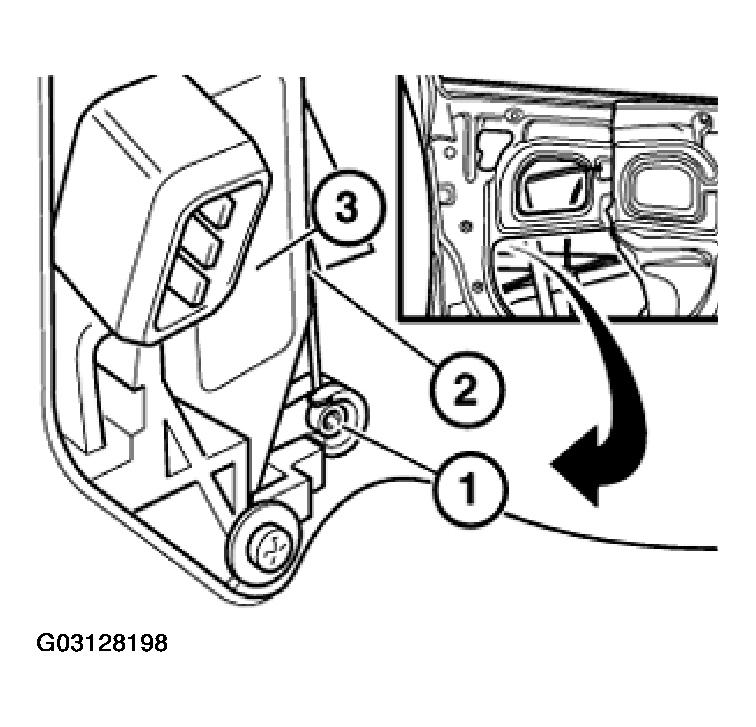

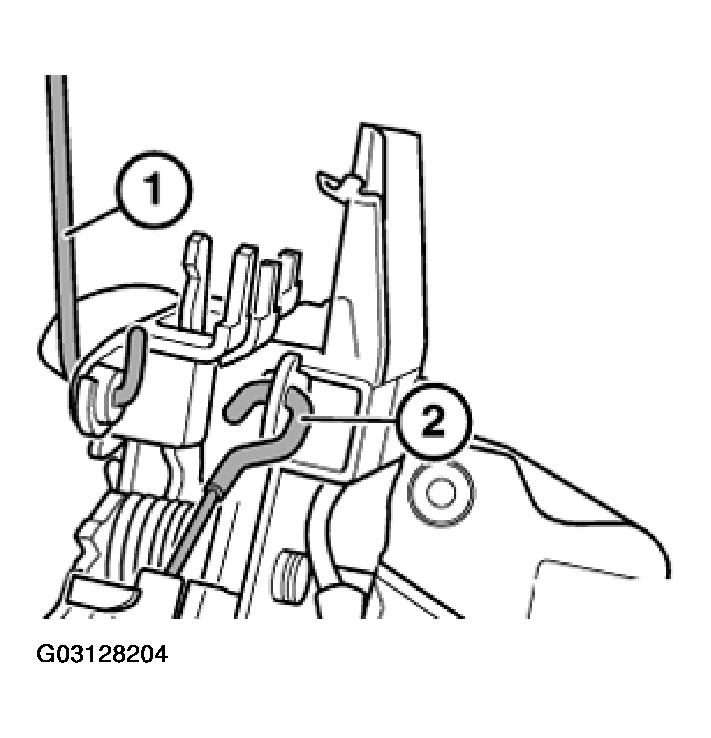

Disconnect Bowden cable nipple (1) and Bowden cable guide (2) from door lock (3).

Fig 3: Disconnecting Bowden Cable Nipple & Bowden Cable Guide From Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Unplug plug connection (micro-switch).

Fig 4: Unplugging Plug Connection (Micro-Switch)

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clip (1) (Bowden cable on inside door handle).

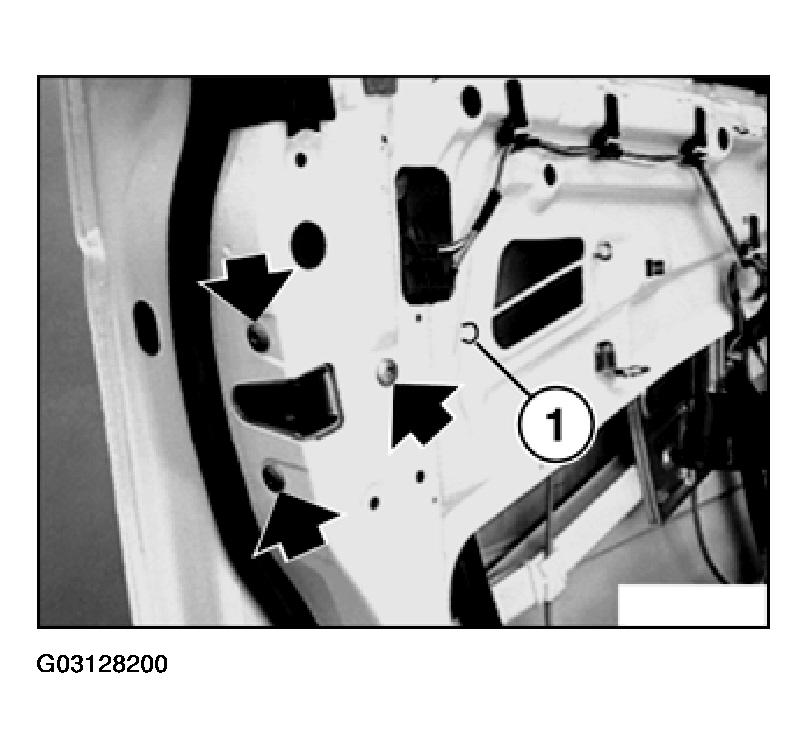

Unfasten screws and pull door lock downwards to remove.

Fig 5: Unfastening Clip (Bowden Cable On Inside Door Handle)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

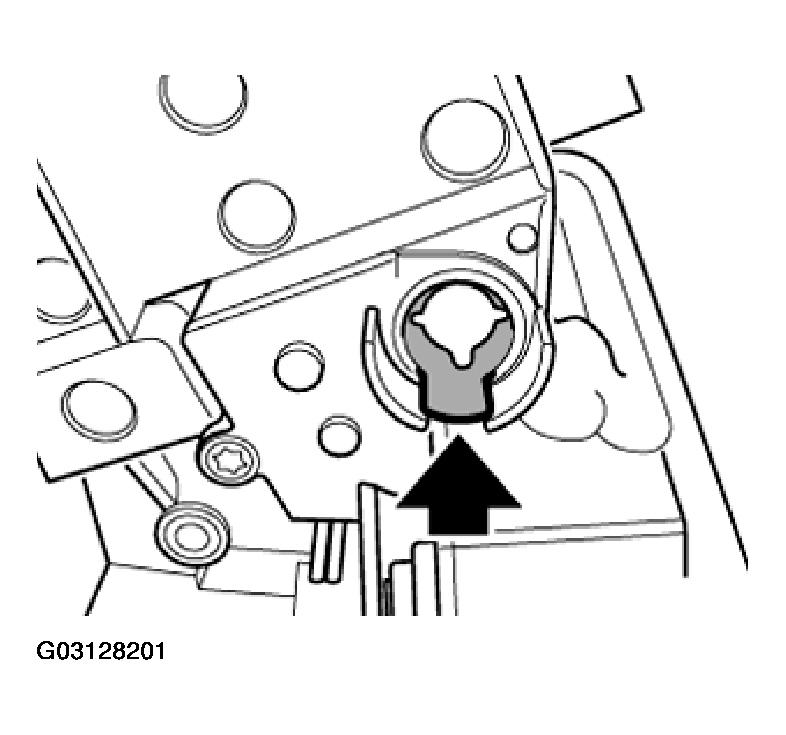

Lug on support (for paddle) must be located bottom center.

Fig 6: Checking Lug On Support (For Paddle)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

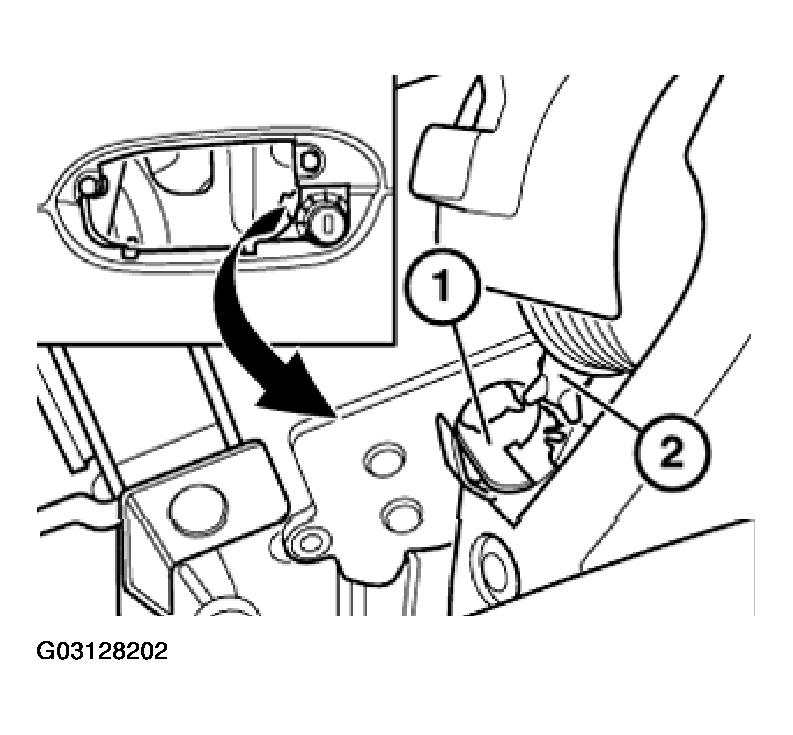

Carefully insert support (1) (for paddle) on door lock carefully upwards into paddle (2) (lock cylinder).

Fig 7: Inserting Support (For Paddle) On Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Lift out locking unit (1) and pull drive (2) (door locking unit) upwards from door lock.

Fig 8: Lifting Out Locking Unit & Pulling Drive (Door Locking Unit)

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Disconnect rods (1) and (2).

Fig 9: Disconnecting Rods

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

If necessary, unfasten screws.

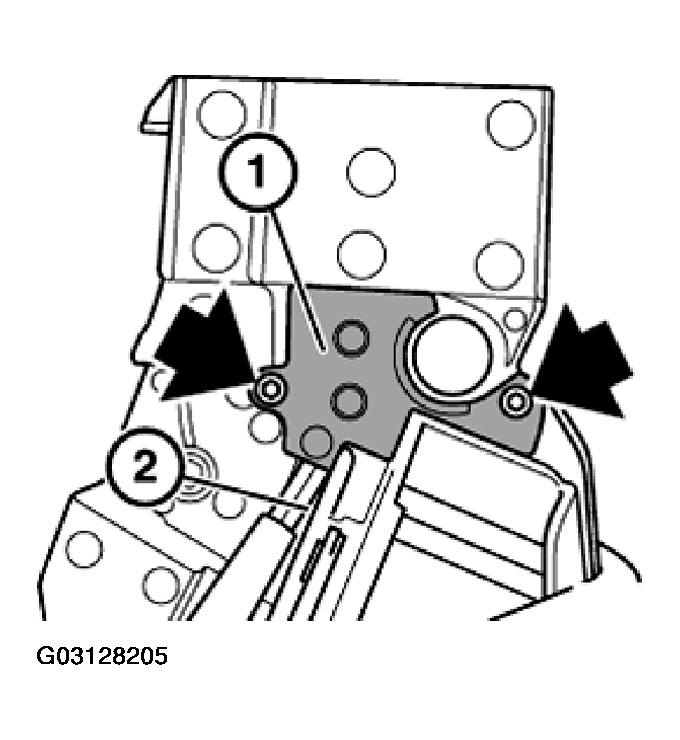

If necessary, remove retaining plate (1) and lift out micro-switch (2).

Fig 10: Removing Retaining Plate & Lifting Out Micro-Switch
