51 21 170 Removing and installing or replacing outside handle from left or right front door

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Lift out sealing plug.

Installation:

Fit new seal plugs.

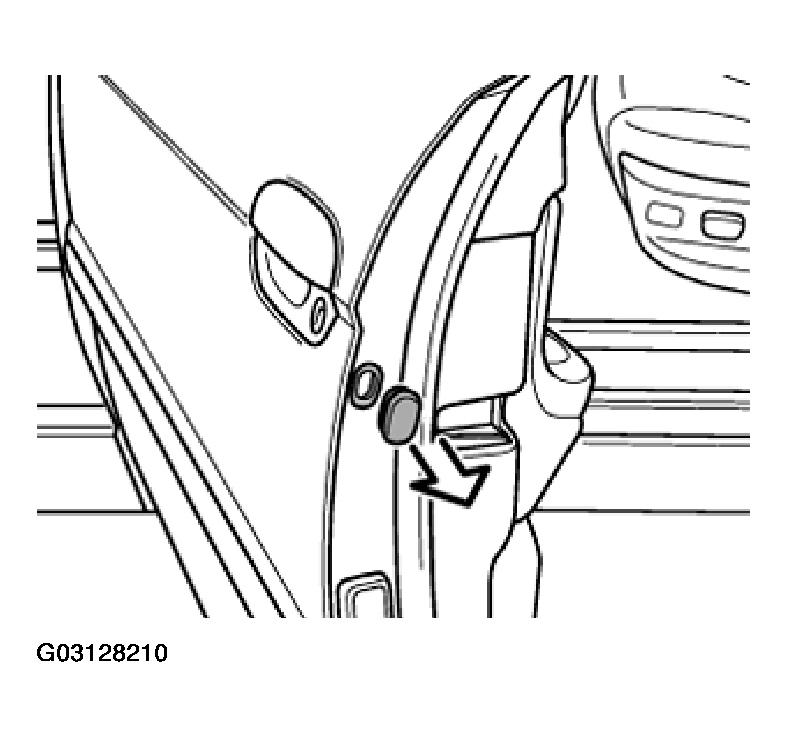

Fig 1: Lifting Out Sealing Plug

G03128210

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 51 3 203 and lever retaining tab (1) on locking plate (2) over the retaining lug (3).

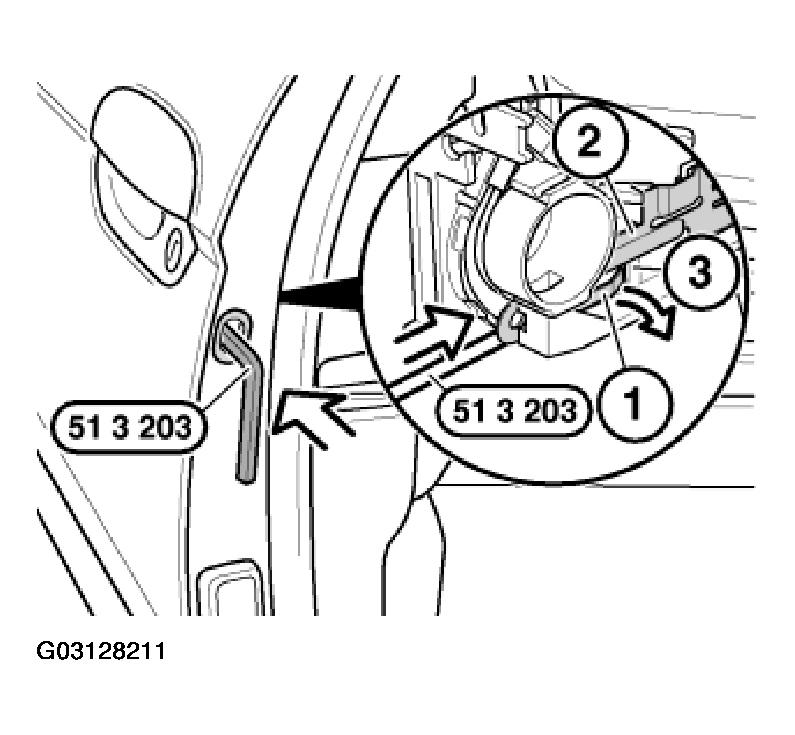

Fig 2: Levering Retaining Tab On Locking Plate Over Retaining Lug

G03128211

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 51 3 201 in sliding bore on locking plate (2) and press this forwards with raised retaining tab (1).

Remove both special tools.

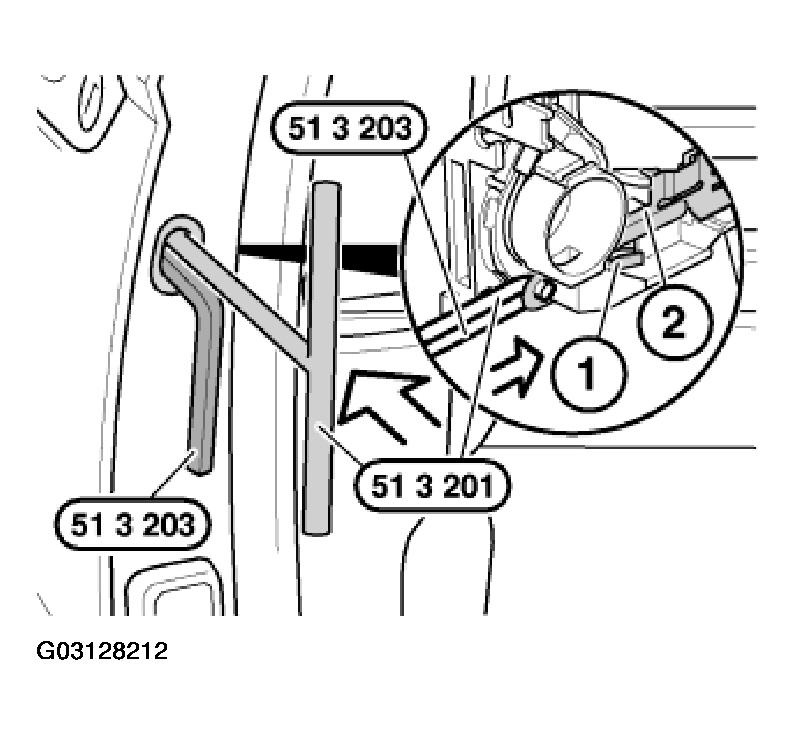

Fig 3: Inserting Special Tool In Sliding Bore On Locking Plate

G03128212

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out lower edge of outside handle and pull obliquely downwards to remove.

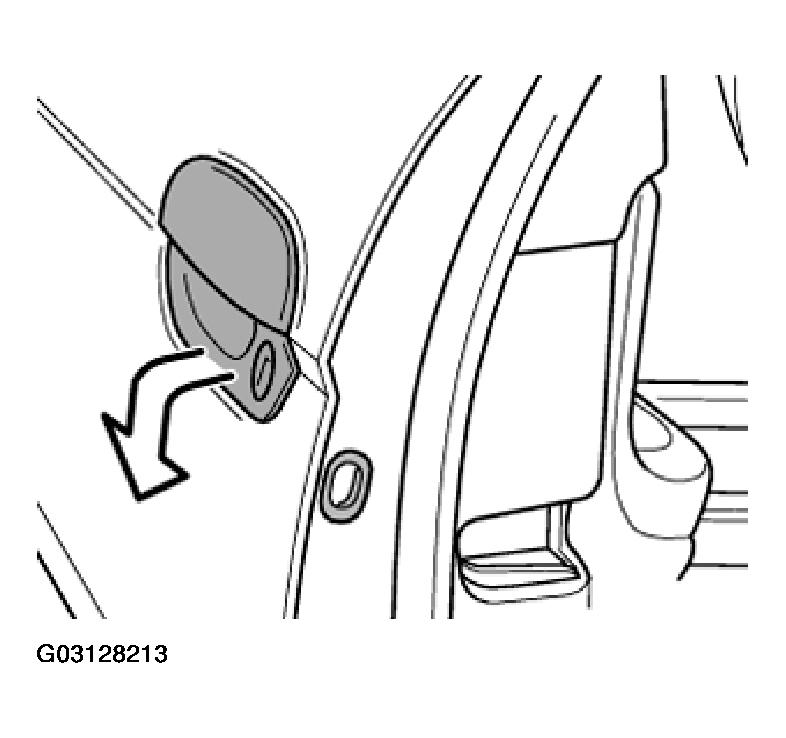

Fig 4: Lifting Out Lower Edge Of Outside Handle & Pulling Obliquely Downwards

G03128213

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert special tool 51 3 201 in sliding bore (1) of locking plate (2) and pull it backwards.

Check function.

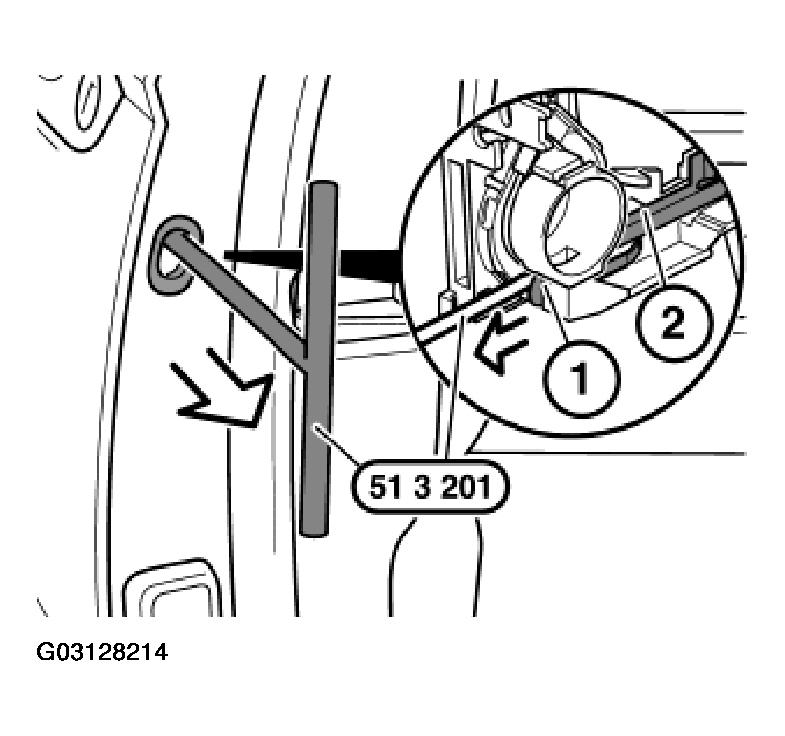

Fig 5: Inserting Special Tool In Sliding Bore On Locking Plate

G03128214

Courtesy of BMW OF NORTH AMERICA, INC.
