17 11 031 Replacing fan cowl (M54)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove fan impeller with fan clutch from water pump. See Figure or 17 40 000 Removing and installing/replacing complete supplementary fan (with fan cowl)

Remove coolant expansion tank from fan cowl. See 17 11 100 Removing and installing/replacing coolant expansion tank

NOTE: Coolant lines remain connected.

Remove auxiliary water pump from fan cowl. See 17 40 000 Removing and installing/replacing complete supplementary fan (with fan cowl)

NOTE: Coolant lines remain connected.

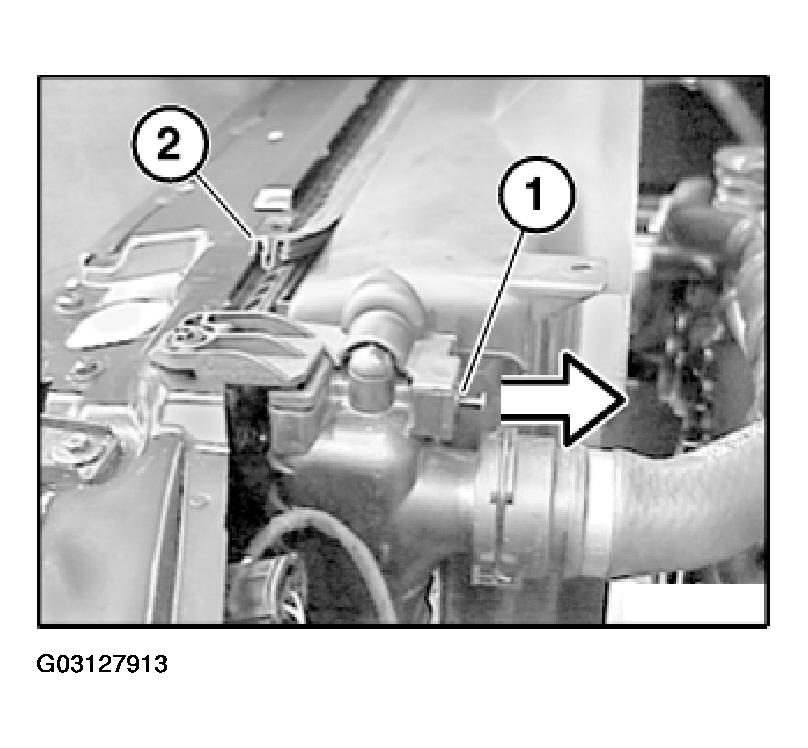

Unclip AUC sensor.

Fig 1: Releasing AUC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

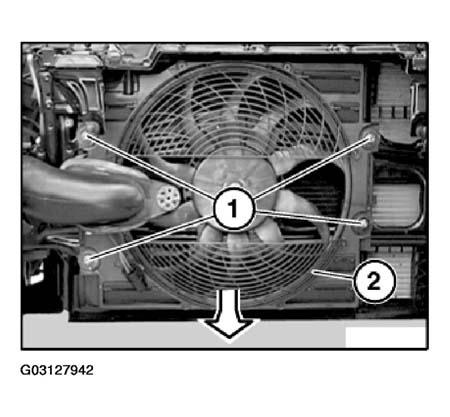

Lever out expansion rivets (1) on left and right.

Detach sealing strip (2).

Installation:

Pay attention to installation position of sealing strip.

Lift out fan cowl and fan impeller together.

Fig 2: Detaching Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

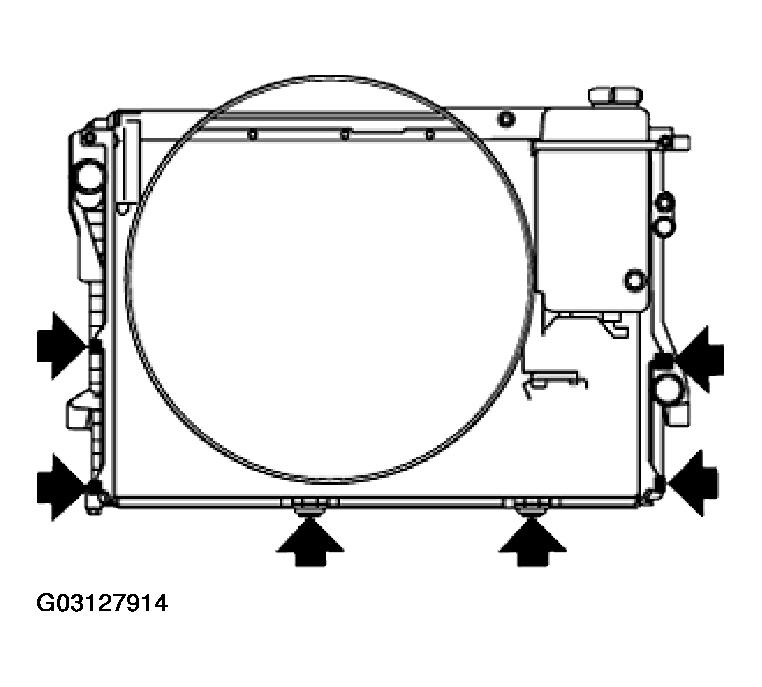

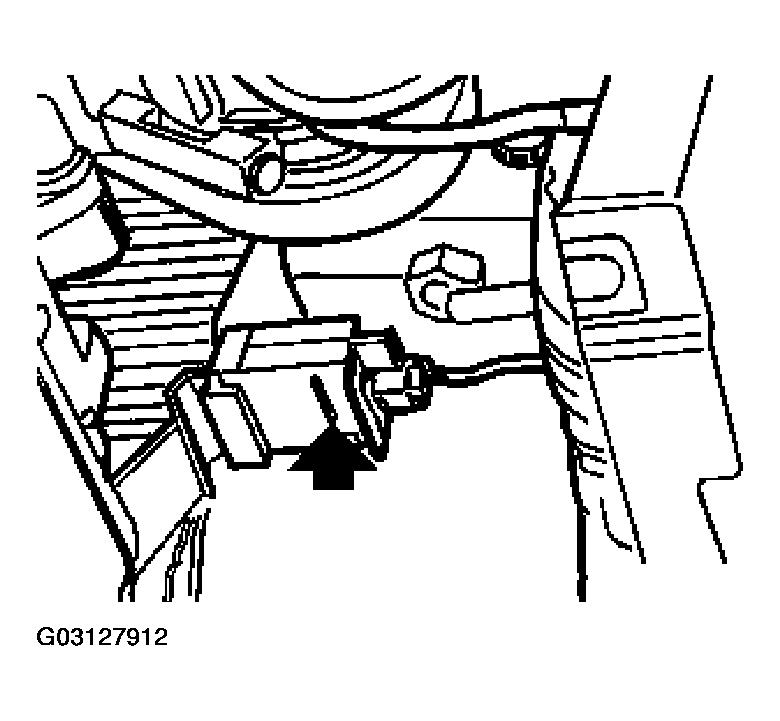

Attach fan cowl in retaining lugs at bottom and sides.

Fig 3: Attaching Fan Cowl In Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
