Special tools required:
WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, 2001 BMW 525i, and 2000 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.
- 12 1 171
- 12 1 200
NOTE:
This repair instruction is valid for the following engines:
- M52 / M52TU / M54 / M56
- S52/S50US
Necessary preliminary tasks:
- Remove ignition coils. See 12 13 511 Replacing ignition coil (M52, M52TU, S52, S50US, M54)

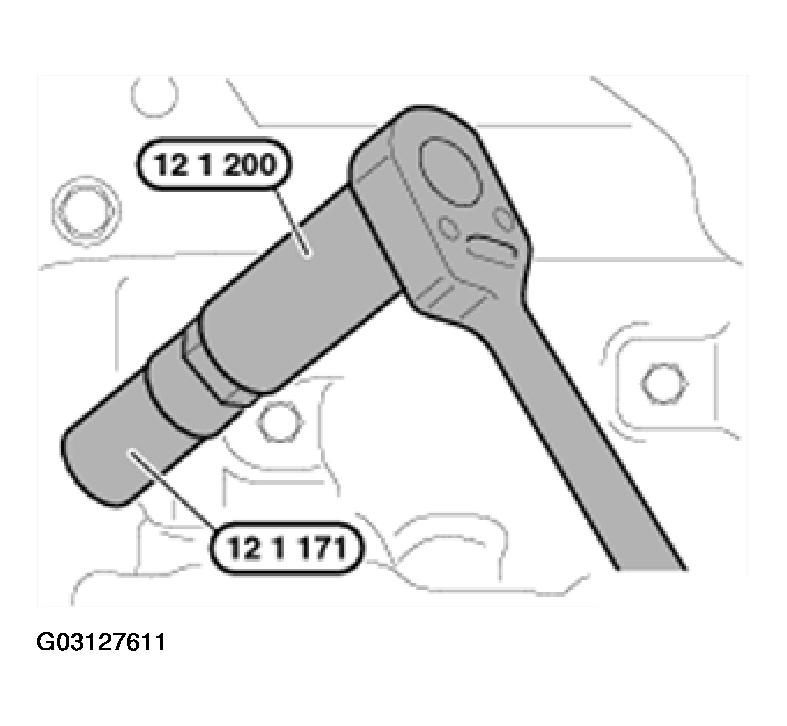

Unscrew and remove spark plugs with special tool 12 1 171 in conjunction with special tool 12 1 200.
Installation:
If special tool 12 1 200 is not used,
Tightening torque. Refer to TORQUE SPECIFICATIONS .
