12 13 511 Replacing ignition coil (M52, M52TU, S52, S50US, M54)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, 2001 BMW 525i, and 2000 BMW 528i. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Remove cover for ignition coils.

Version with single-spark ignition coils:

Unlock connector of ignition coils.

Disconnect connector from ignition coils.

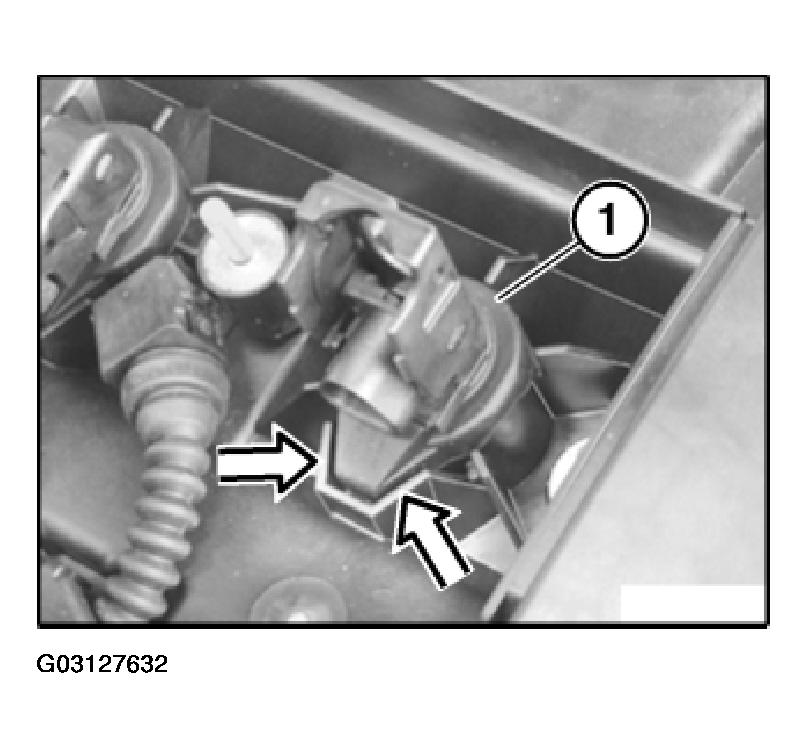

Fig 1: Disconnecting Connector From Ignition Coils

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws on ignition coil.

Pull out ignition coil.

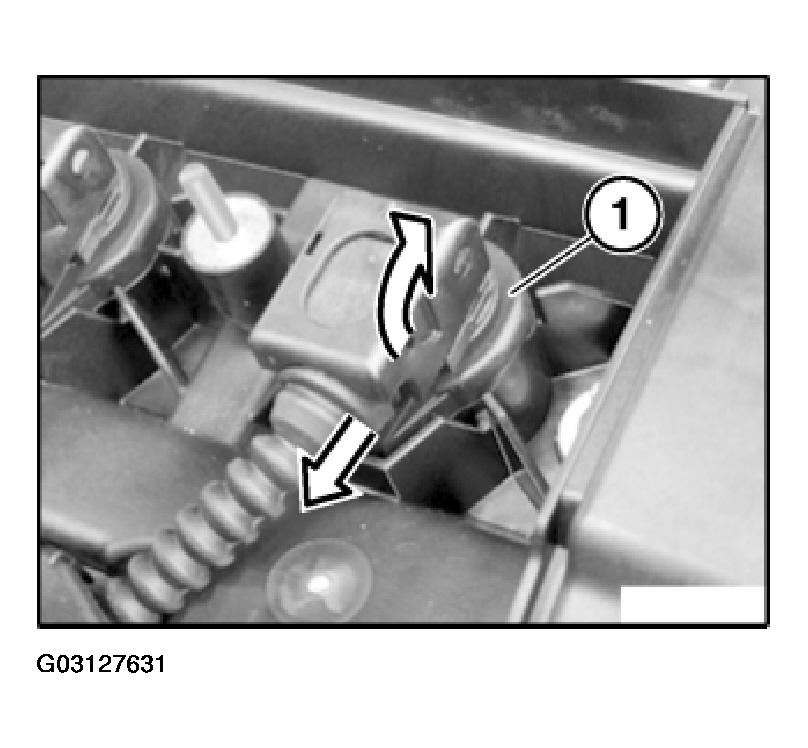

Fig 2: Removing Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw down grounding strap (1) to cylinder head cover mounting and to ignition coil for cylinders 1 and 6.

On metal covers:

Screw down grounding strap of cable duct to cylinder head cover mounting between cylinders 2 and 3.

Installation:

M52 plastic cover:

Screw down grounding strap (1) of cable duct with connecting plate (2) of ignition coils.

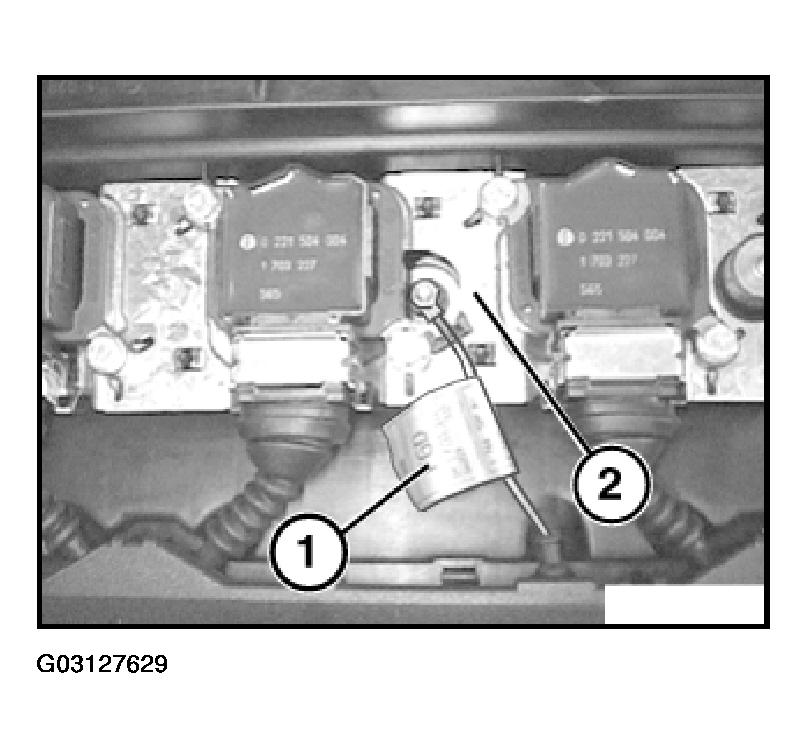

Fig 3: Fixing Cable Duct Grounding Strap (M 52)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

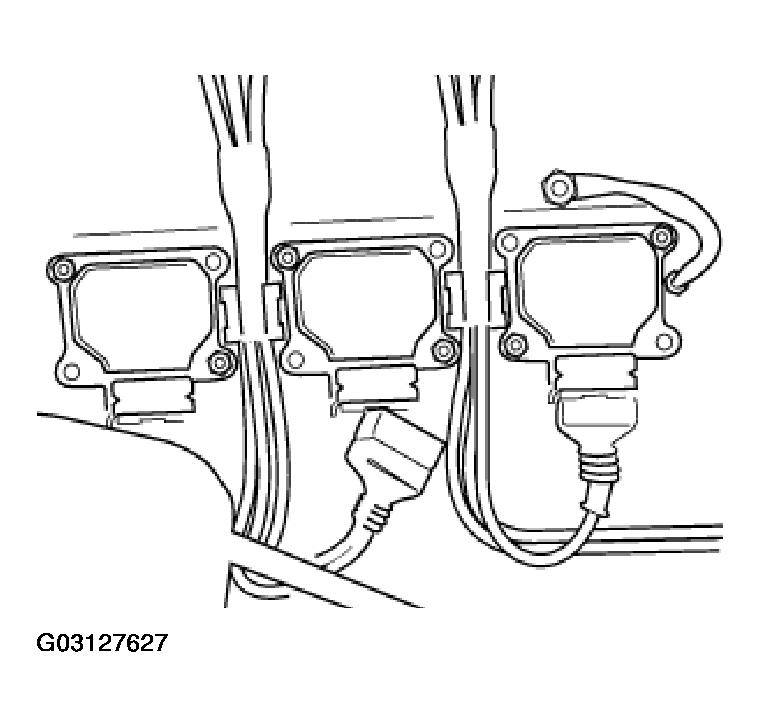

Fig 4: Fixing Cable Duct Grounding Strap (M 52TU, M54)

Courtesy of BMW OF NORTH AMERICA, INC.

Plastic cover M52TU, M54:

Screw down grounding strap (1) of connecting plate of ignition coils with retaining pin of ignition coil of cylinder 1.

Screw down grounding strap (2) of cable duct with connecting plate of ignition coils between cylinders 2 and 3.

Version with rod-type ignition coils:

Unlock plug retainer of ignition coil (1) and disconnect plug. Pull ignition coil (1) up and out.

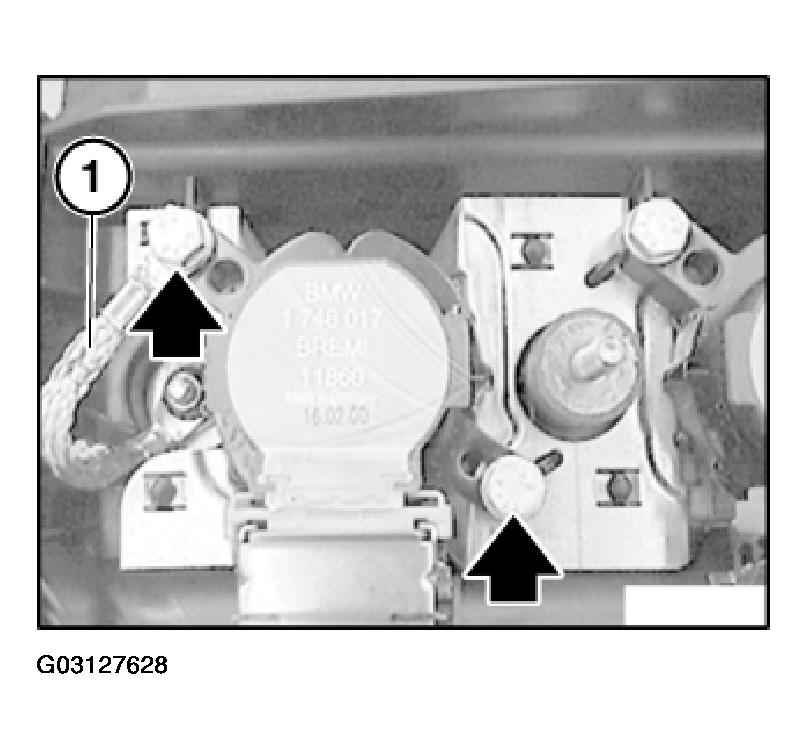

Fig 5: Removing Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check that rubber seal of ignition coil (1) is correctly seated.

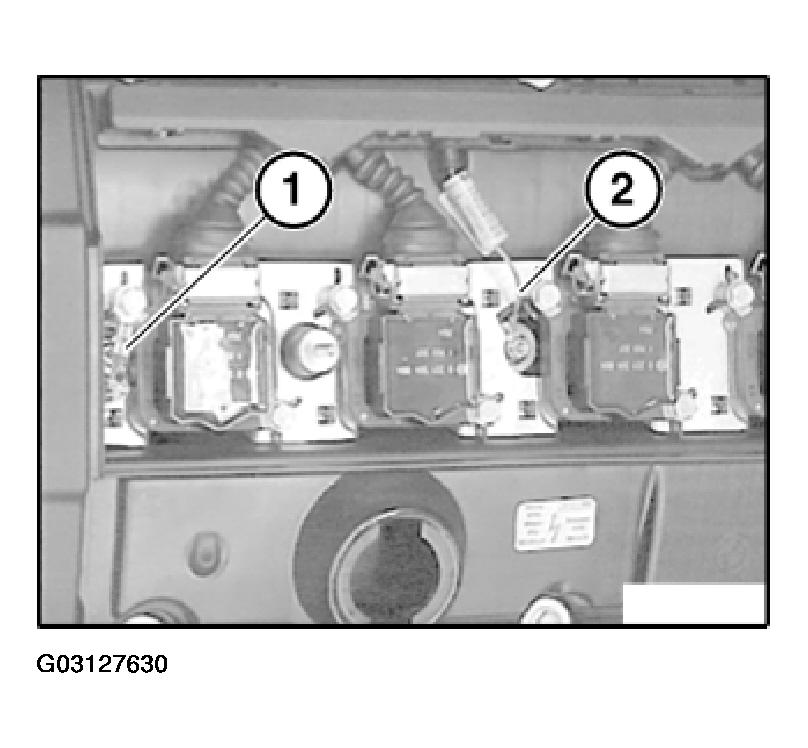

Fig 6: Identifying Ignition Coil Rubber Seal Position

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.

Check stored fault messages.

Now clear the fault memory.
