11 12 000 Removing and installing, sealing cylinder head cover (M52TU / M54 / M56)

Remove engine cover. SeeFigure

Remove ignition coils. See 12 13 511 REPLACING IGNITION COIL (M52, M52TU, S52, S50US, M54)

Remove wiring harness of ignition coils from cylinder head cover and place to one side.

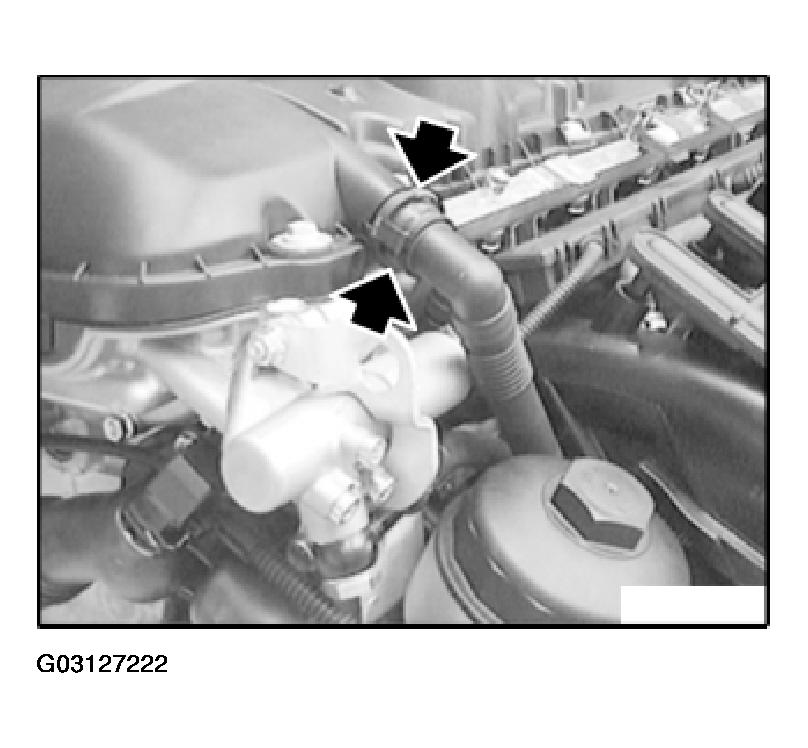

Press lock.

Pull off the hose for the engine breather.

Fig 1: Pulling Off Hose For Engine Breather

Courtesy of BMW OF NORTH AMERICA, INC.

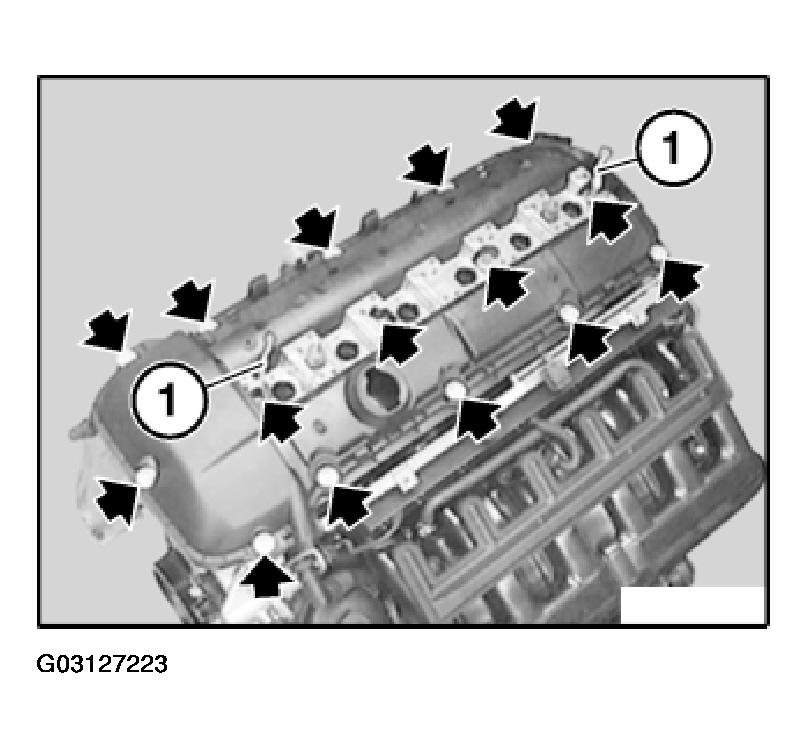

Remove grounding straps (1).

Remove cylinder head cover.

Fig 2: Identifying Grounding Straps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove sealing debris from sealing faces of cylinder head and cylinder head cover.

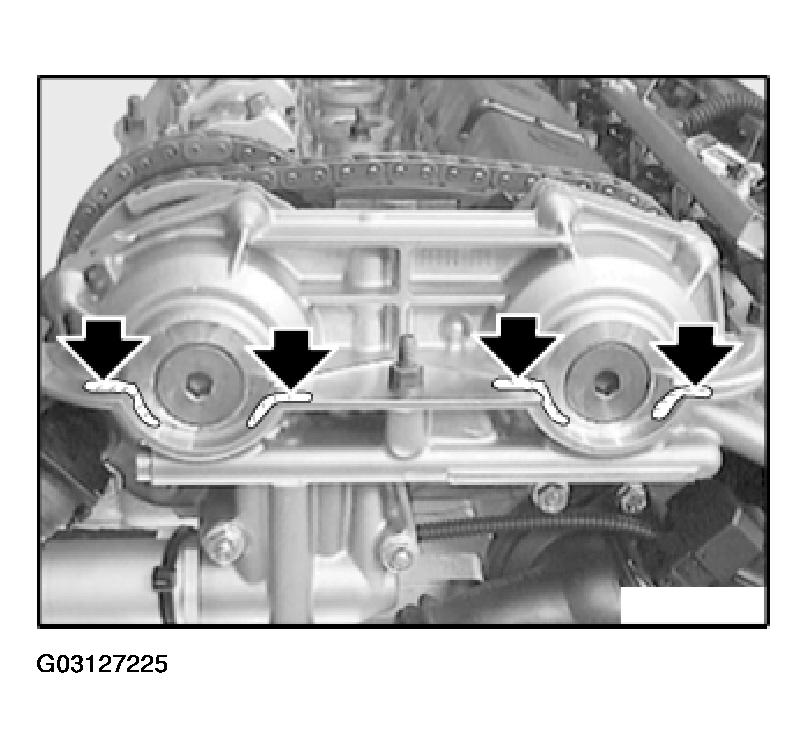

Apply a sealing bead of Drei Bond 1209 (refer to BMW Parts Service) on left and right sides at transition between cylinder head and VANOS adjustment unit.

Fig 3: Removing Sealing Debris From Sealing Faces Of Cylinder Head & Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

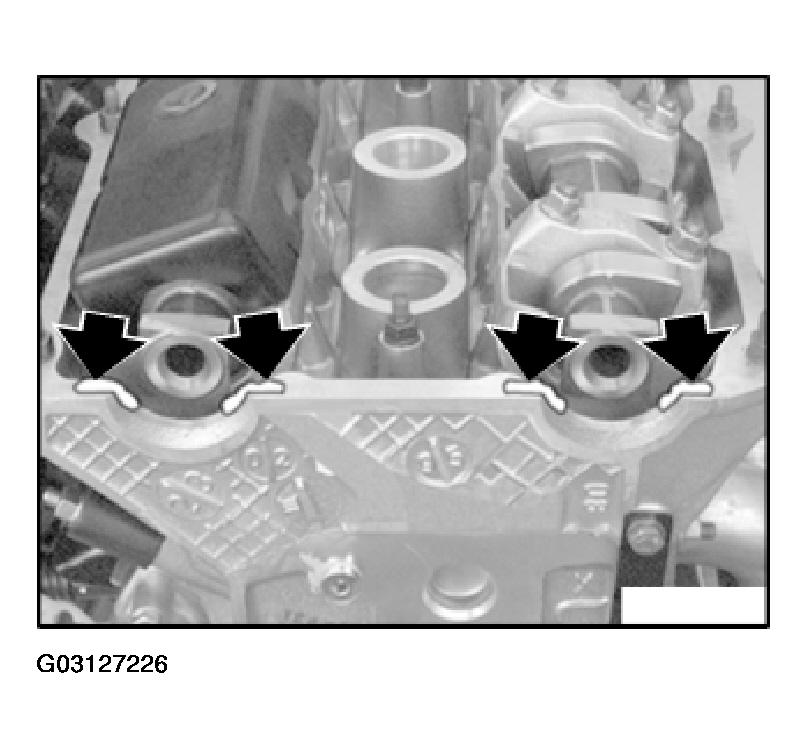

Apply a thin and even sealing bead of Drei Bond 1209 (refer to BMW Parts Service) at transition to half-moon sections at VANOS adjustment unit.

Fig 4: Applying Thin Sealing Bead Of Drei Bond 1209 At Transition To Half-Moon Sections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

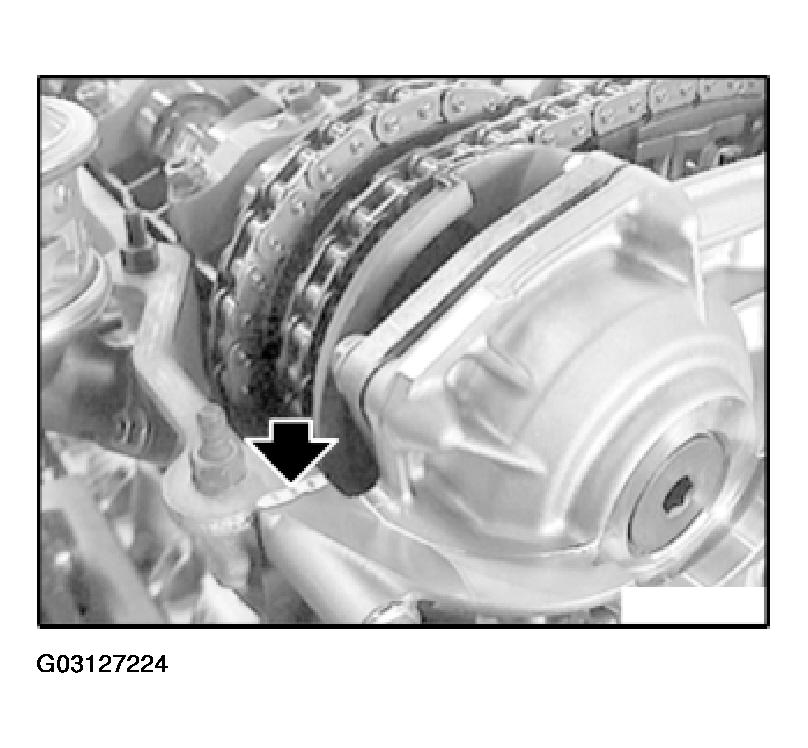

Apply a thin and even sealing bead of Drei Bond 1209 (refer to BMW Parts Service) at transition to half-moon sections at rear of cylinder head.

Check seals and replace if necessary.

Fig 5: Applying Thin Sealing Bead Of Drei Bond 1209 At Transition To Half-Moon Sections At Rear Of Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

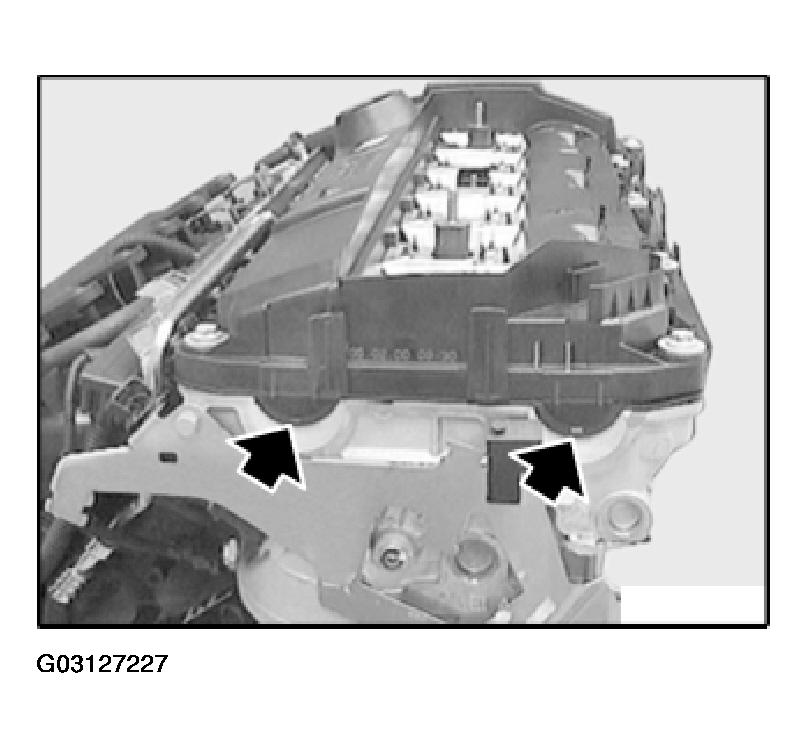

Make sure gasket is correctly seated on rear and front ends of cylinder head.

Install cover bolts and align cylinder head cover.

Hand-tighten all cover bolts without preload. Tighten cap nuts crosswise from inside to outside.

Fig 6: Installing Cover Bolts & Aligning Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.
