17 40 000 Removing and installing/replacing complete auxiliary fan (M62, M54, M57)

Remove front bumper completely. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM (UP TO 10/03) or 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM (FROM 10/03) .

Remove carrier on front bumper. Refer to 51 11 050 REMOVING AND INSTALLING/REPLACING MEMBER (CROSS-MEMBER) FOR FRONT BUMPER TRIM .

M54 Only:

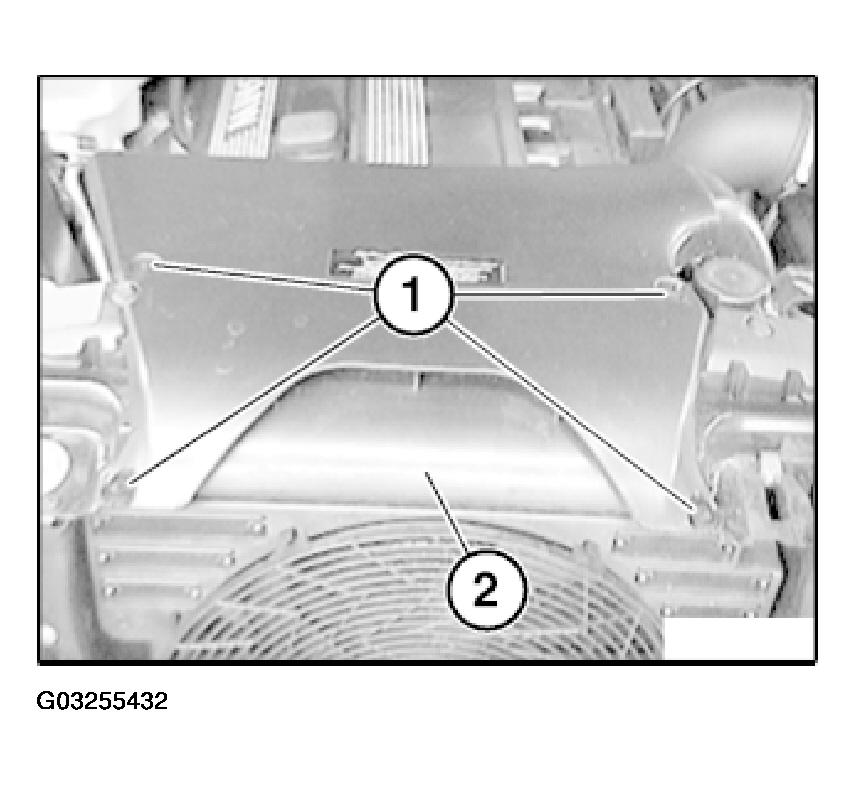

Lever out expansion rivets (1).

Remove intake hood (2).

Fig 1: Removing Intake Hood (M54)

Courtesy of BMW OF NORTH AMERICA, INC.

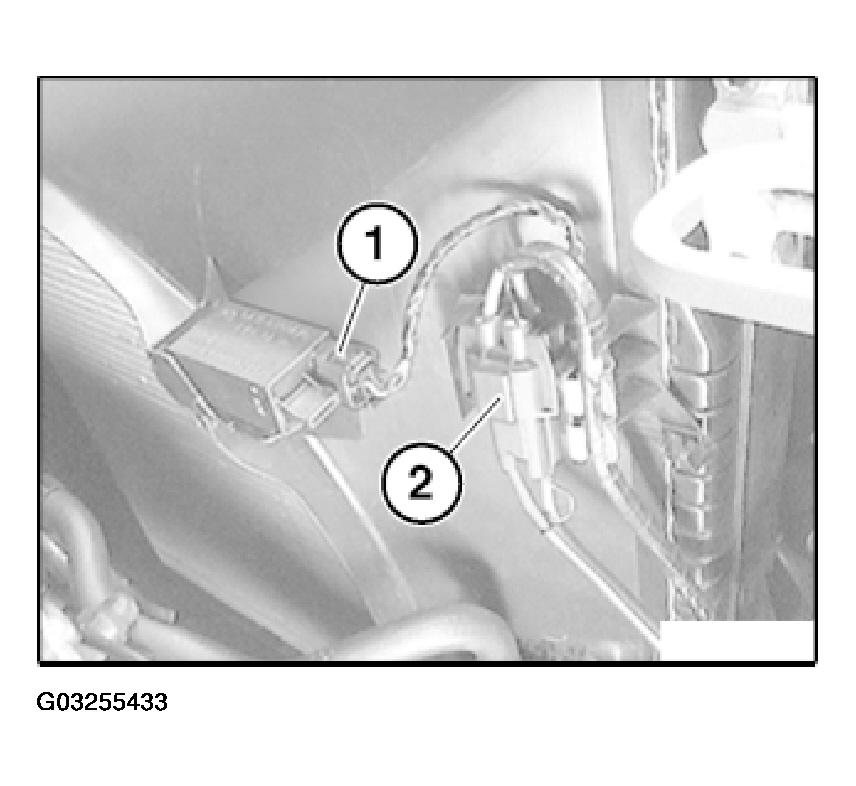

Unfasten plug connection (2) and disconnect.

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

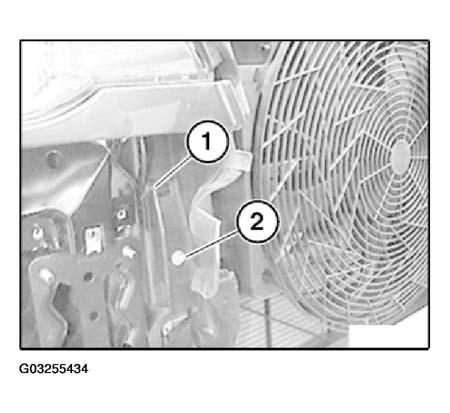

Release cable tie (1).

Release screws (2) on left and right.

Fig 3: Removing Cable Tie And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

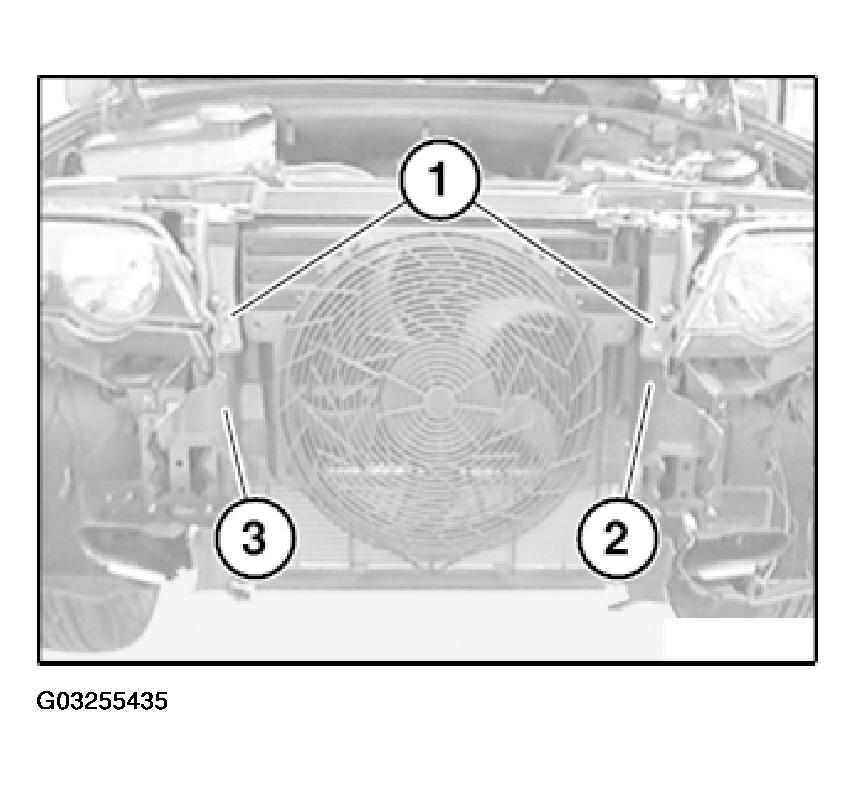

Lever out expansion rivets (1).

Remove panels (2) and (3).

Remove auxiliary fan completely with cowl towards bottom.

Fig 4: Removing Auxiliary Fan

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

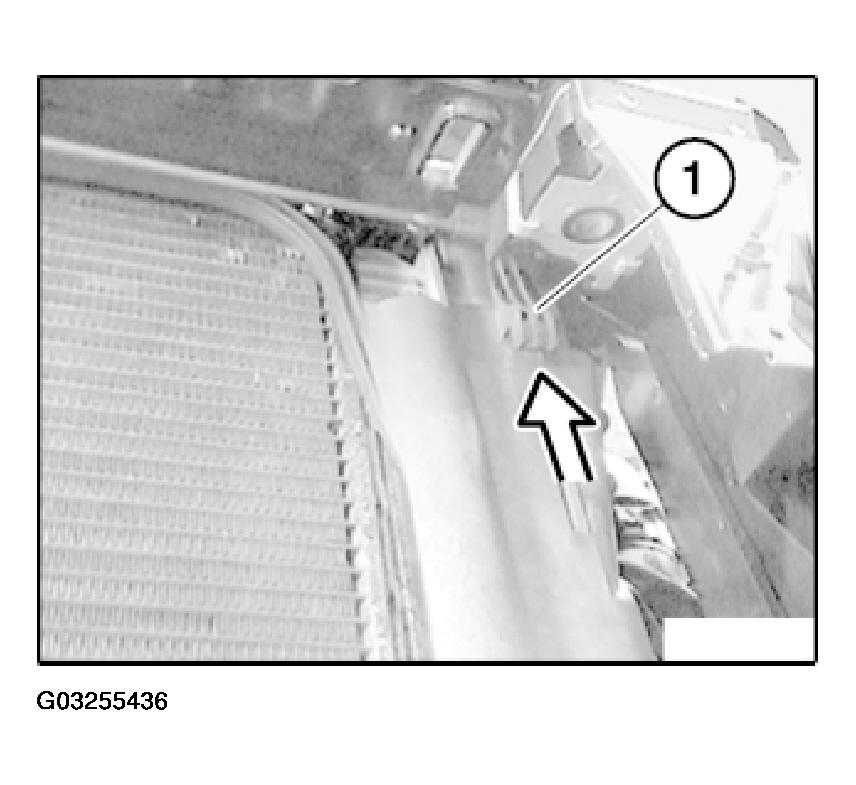

Attach cowl of auxiliary fan to holders (1) on left and right.

Fig 5: Attaching Cowl Of Auxiliary Fan To Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Open locks.

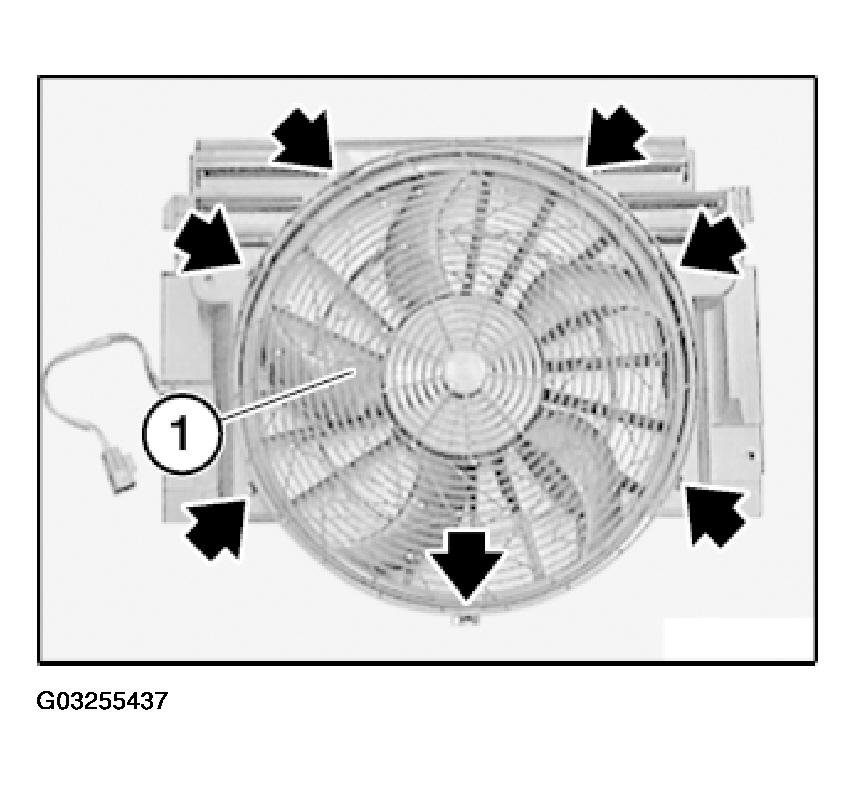

Remove protective grill (1).

Fig 6: Removing Protective Grill

Courtesy of BMW OF NORTH AMERICA, INC.

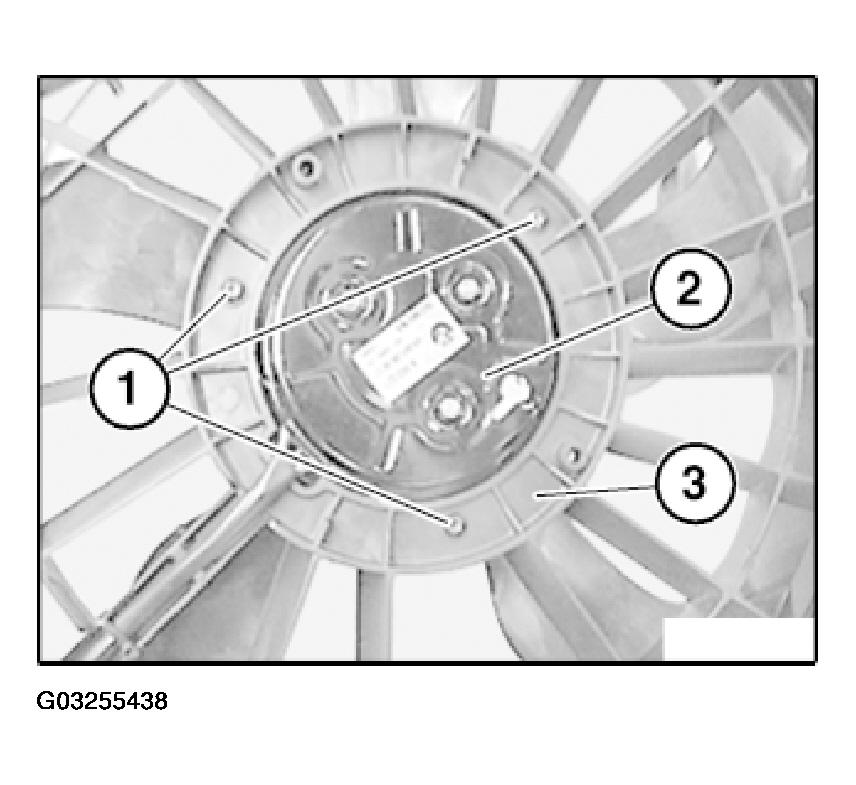

Release screws (1).

Remove fan impeller (2) from cowl (3).

Fig 7: Removing Fan Impeller From Cowl

Courtesy of BMW OF NORTH AMERICA, INC.
