11 13 000 Removing and installing, sealing/replacing oil sump (M54/56)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Drain engine oil. Refer to 00 00 250 BMW ENGINE OIL SERVICE (M54/56) .
Remove front left and right output shafts.
Remove front axle differential.
Release vane pump for power steering (lines remain connected).
Remove oil dipstick. Refer to 11 43 000 REMOVING AND INSTALLING/REPLACING OIL DIPSTICK (M54/56) .
Secure engine in installation position. Refer to SECURING ENGINE WITH SPECIAL TOOL IN INSTALLATION POSITION (M54) .
Detach steering spindle from steering gear.
Lower front axle.
(Front axle alignment is not required).
Disconnect plug connection on oil level sensor.
Remove oil lines for automatic transmission.

Release oil sump screws along line (1).

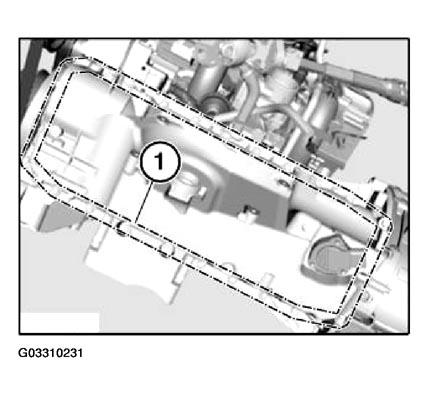

Fig 1: Releasing Oil Sump Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque: 11 13 2AZ. Refer to ENGINE - TIGHTENING TORQUES .

Move oil pan backwards.

Release transmission screws (1).

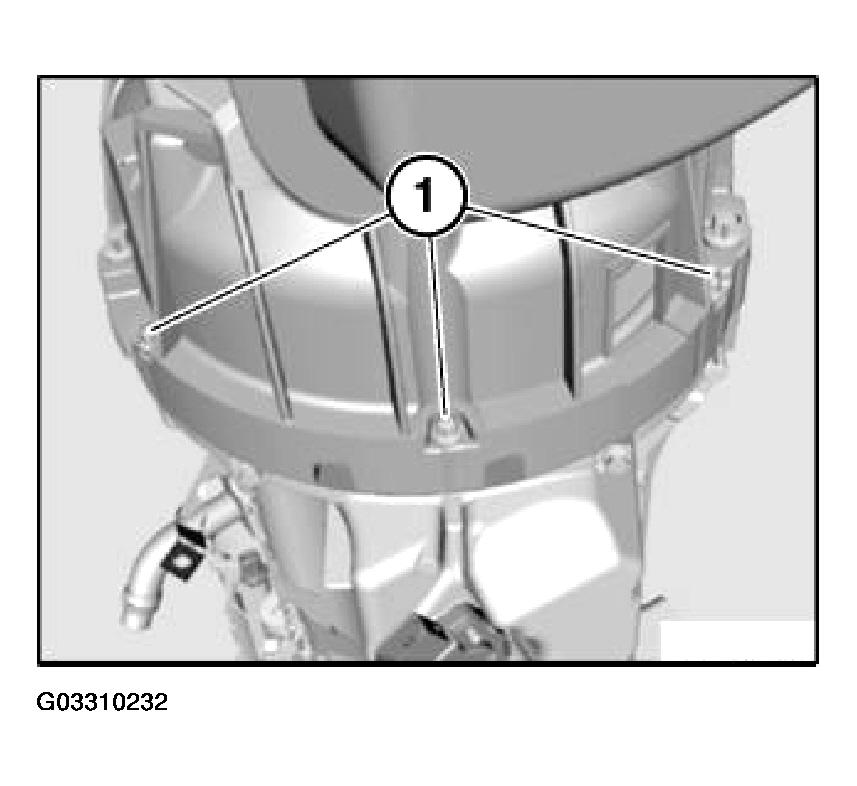

Fig 2: Releasing Transmission Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmission: Tightening torque, refer to TORQUE SPECIFICATIONS .

Manual transmission: Tightening torque, refer to TORQUE SPECIFICATIONS .

Installation:

Clean sealing surfaces.

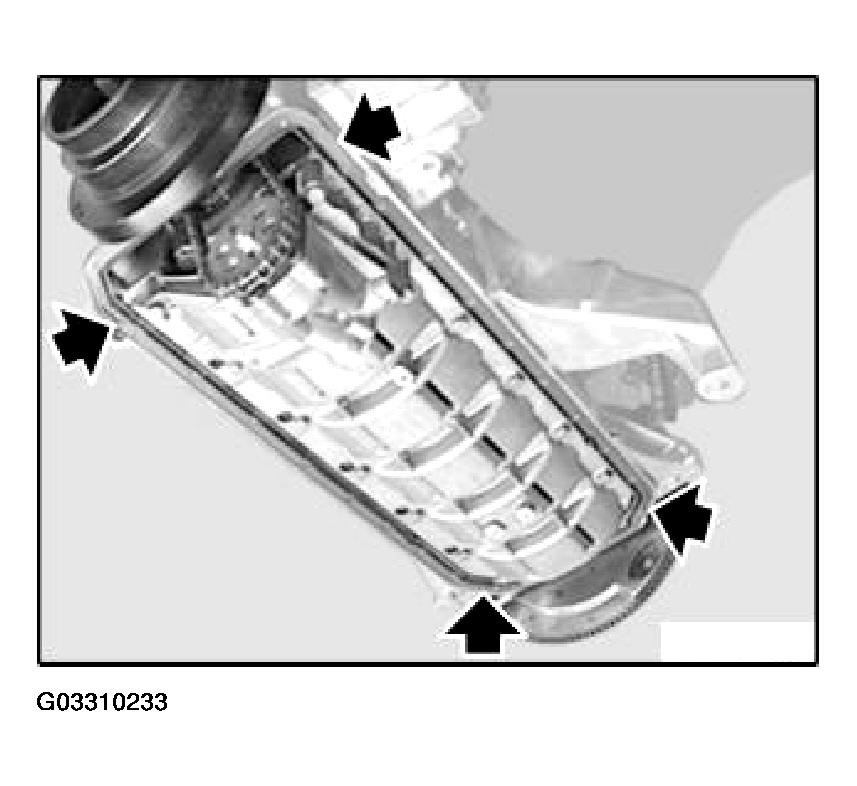

Fig 3: Locating Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

In area of joint, apply approx. 3 mm of Drei Bond 1209 sealing compound (refer to BMW Parts Service)

Assemble engine.

Check engine for leaks.
