11 43 000 Removing and installing/replacing oil dipstick (M54/56)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove air cleaner housing. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (M54) .
- Remove intake hose.
- Remove left firewall panel.
- Drain engine oil. Refer to 00 00 250 BMW ENGINE OIL SERVICE (M54/56) .

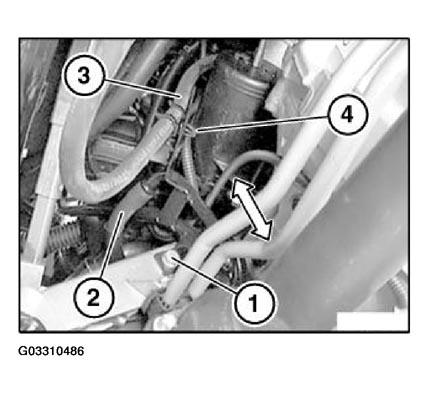

Unscrew bolt (1).
Detach hose (2) from oil dipstick guide tube.
Unclip fuel line (3).
Unclip retaining clip (4).
Remove oil dipstick guide tube in direction of arrow.
Installation:
Replace O-ring.
Assemble engine.
Check engine for leaks.
