51 13 082 Replacing Trim Grille For Heater Air Inlet

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove trim grille for heater air inlet. Refer to 51 13 081 REMOVING AND INSTALLING TRIM GRILLE FOR HEATER AIR INLET .

Sever holders (1) on trim grille (2) until flush.

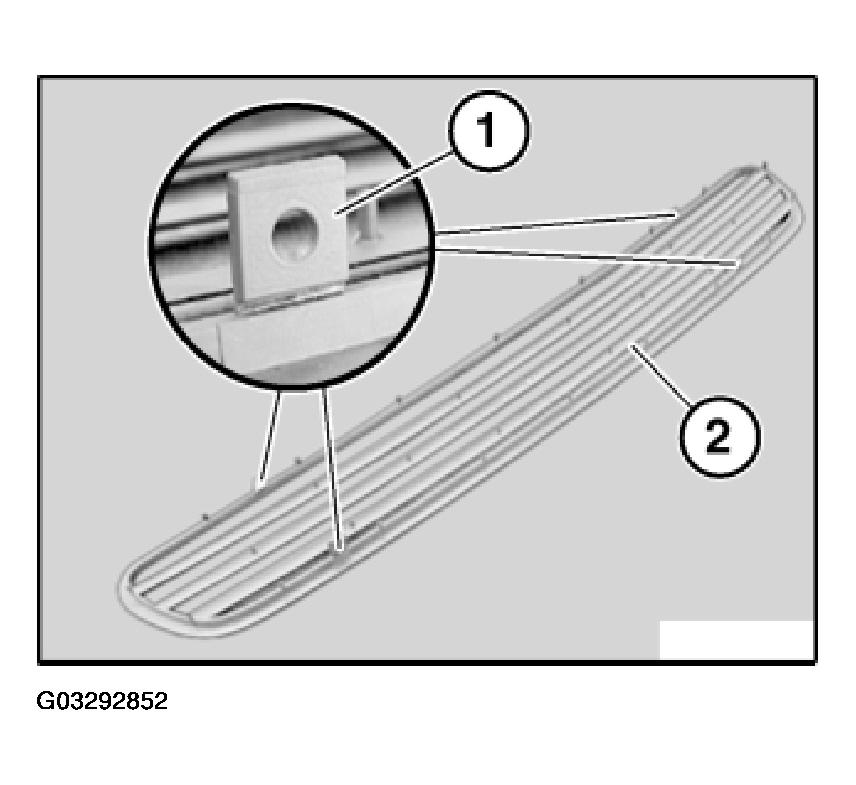

Fig 1: Identifying Holders On Trim Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Place lower section (2) on trim grille (1).

Press on lock washers (4) with a TORX E4 socket (5).

Shorten all plastic pins (3) down to measurement (A).

A = 2 mm.

IMPORTANT: Measurement (A) for center plastic pin in direction of travel at front must only be 1 mm (risk of damage).

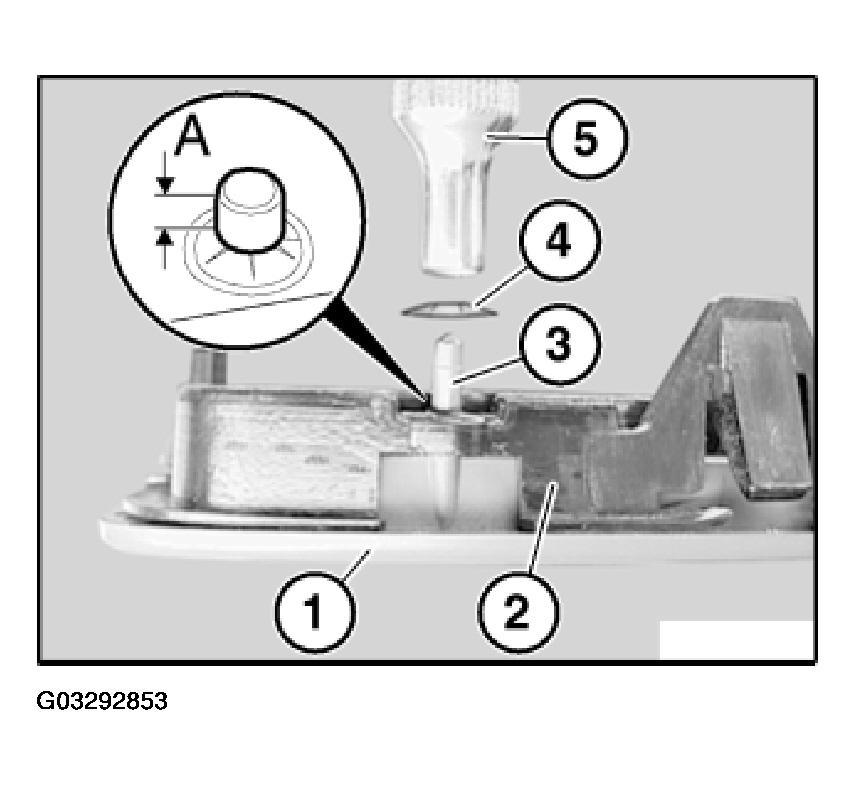

Fig 2: Identifying Dimension A

Courtesy of BMW OF NORTH AMERICA, INC.
