51 13 081 Removing And Installing Trim Grille For Heater Air Inlet

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 341

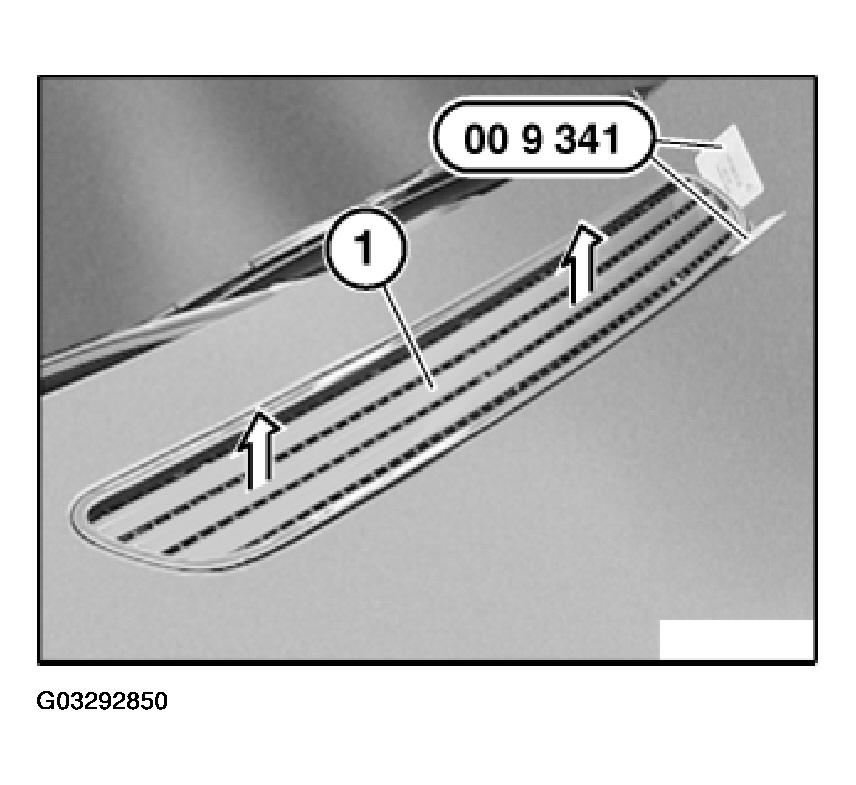

Unlock trim grille (1) with special tools 00 9 341 and remove.

If necessary, unlock trim grille (1) from inside.

Fig 1: Removing Trim Grille From Inside

Courtesy of BMW OF NORTH AMERICA, INC.

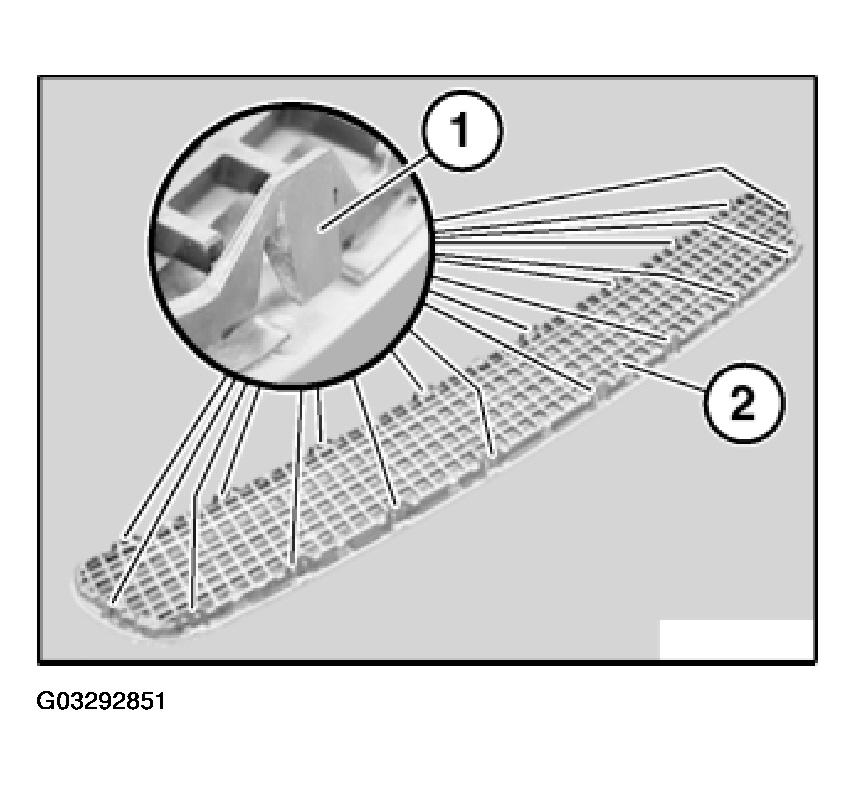

Catches (1) on trim grille (2) must not be damaged.

Fig 2: Identifying Catches On Trim Grille

Courtesy of BMW OF NORTH AMERICA, INC.
