51 22 436 Replacing Function Carrier (With Roller Sun Blind) On Left Or Right Rear Door

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

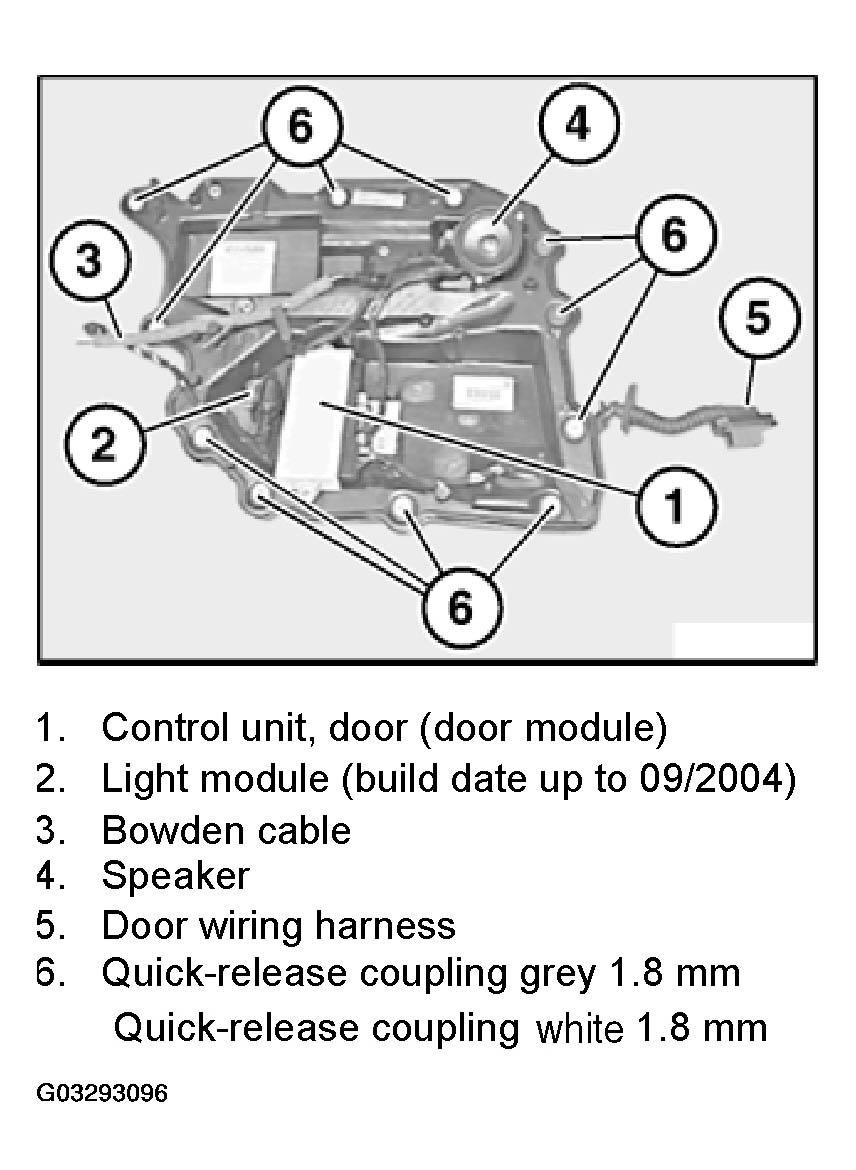

Overview Of Function Carrier Components Without Roller Sun Blind:

Fig 1: Identifying Function Carrier Components Without Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

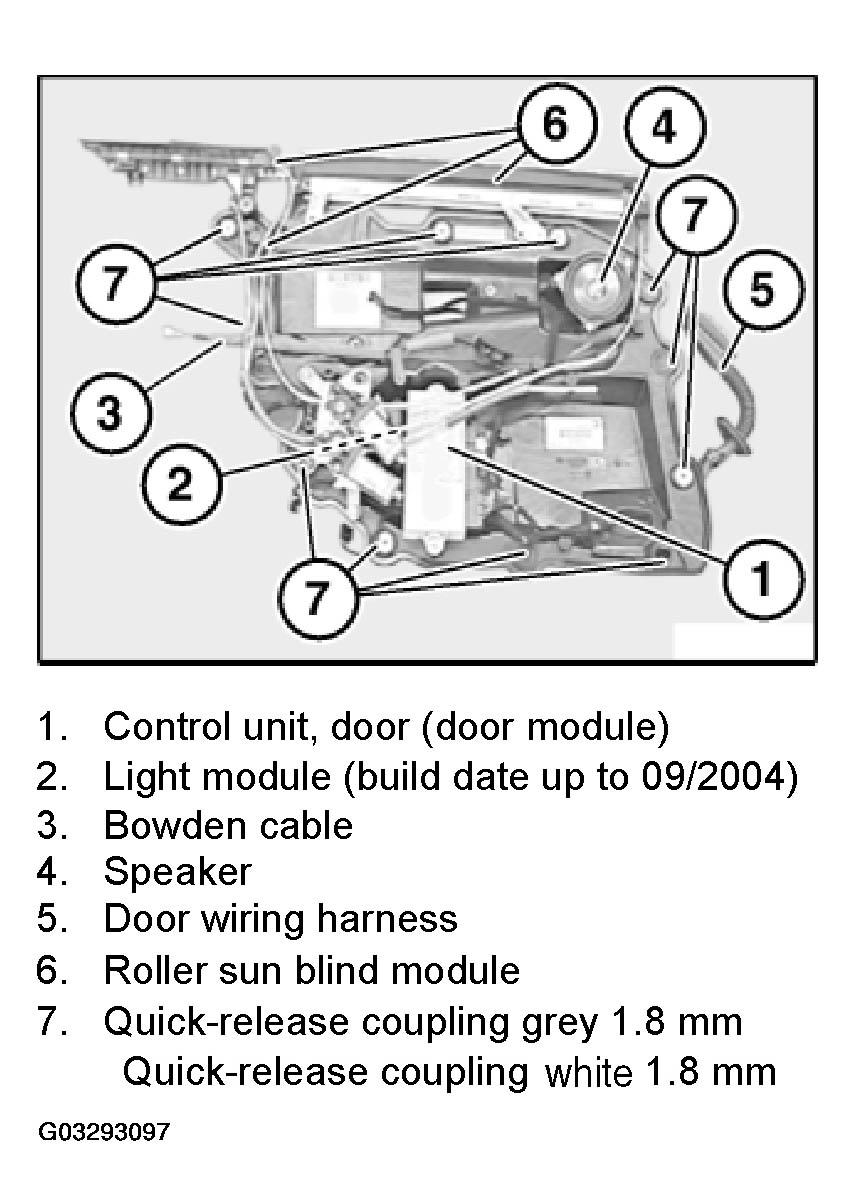

Overview Of Function Carrier Components With Roller Sun Blind:

Fig 2: Identifying Function Carrier Components With Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary Preliminary Tasks:

Remove rear function carrier. Refer to 51 22 435 REMOVING AND INSTALLING FUNCTION CARRIER (WITH ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR .
Remove control unit. Refer to 61 35 224 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT FOR LEFT OR RIGHT REAR DOOR .
Remove speaker. Refer to 65 13 090 REMOVING AND INSTALLING/REPLACING SPEAKER (MID-RANGE SPEAKER, DOOR AT REAR) .
If necessary, remove light module. Refer to 63 99 491 REPLACING LIGHT MODULE FOR REAR LEFT OR RIGHT OUTSIDE DOOR HANDLE LIGHTING (UP TO 09/2004) .

Version with roller sun blind:

Remove roller sun blind module. Refer to 51 16 405 REMOVING AND INSTALLING OR REPLACING BLIND AT SIDE WINDOW OF LEFT OR RIGHT REAR DOOR .

Release clip.

Remove Bowden cable.

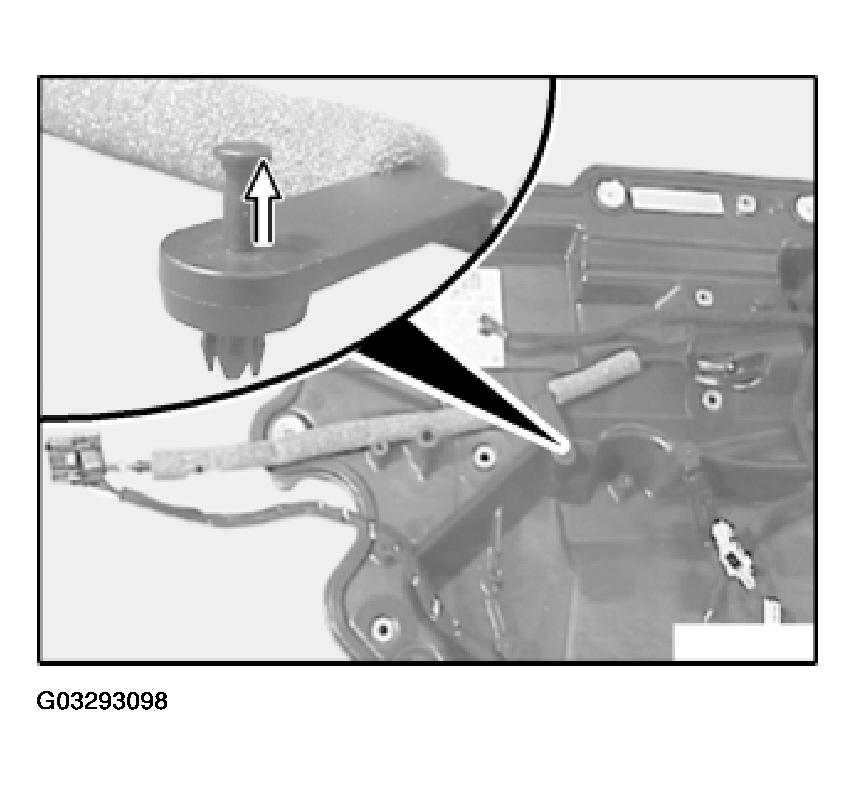

Fig 3: Releasing Clip For Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Press out quick-release couplings.

Installation:

Make sure quick-release couplings are installed in correct position.

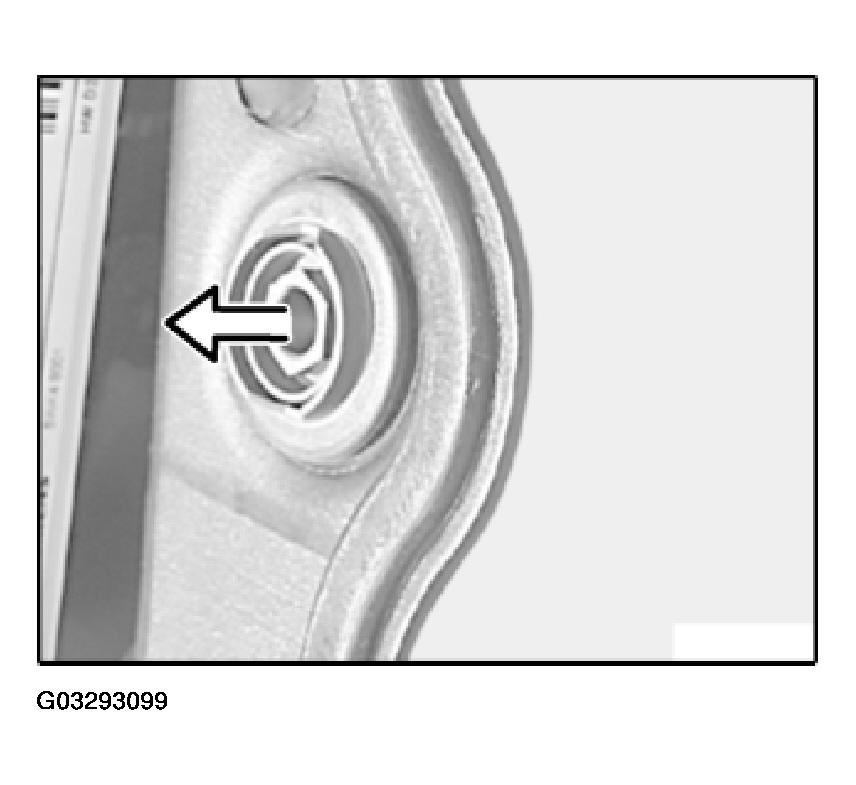

Fig 4: Removing Quick-Release Coupling

Courtesy of BMW OF NORTH AMERICA, INC.
