51 22 351 Replacing Window Cavity Seal In Inside Left Or Right Rear Door (With Roller Sun Blind)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove chest strip on rear door. Refer to 51 42 400 REMOVING AND INSTALLING/REPLACING CHEST STRIP (CHROME STRIP) ON LEFT OR RIGHT REAR DOOR (WITH ROLLER SUN BLIND) .
Remove door trim panel from rear door. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

Front Window Cavity Seal:

Pull off seal (1) in direction of arrow.

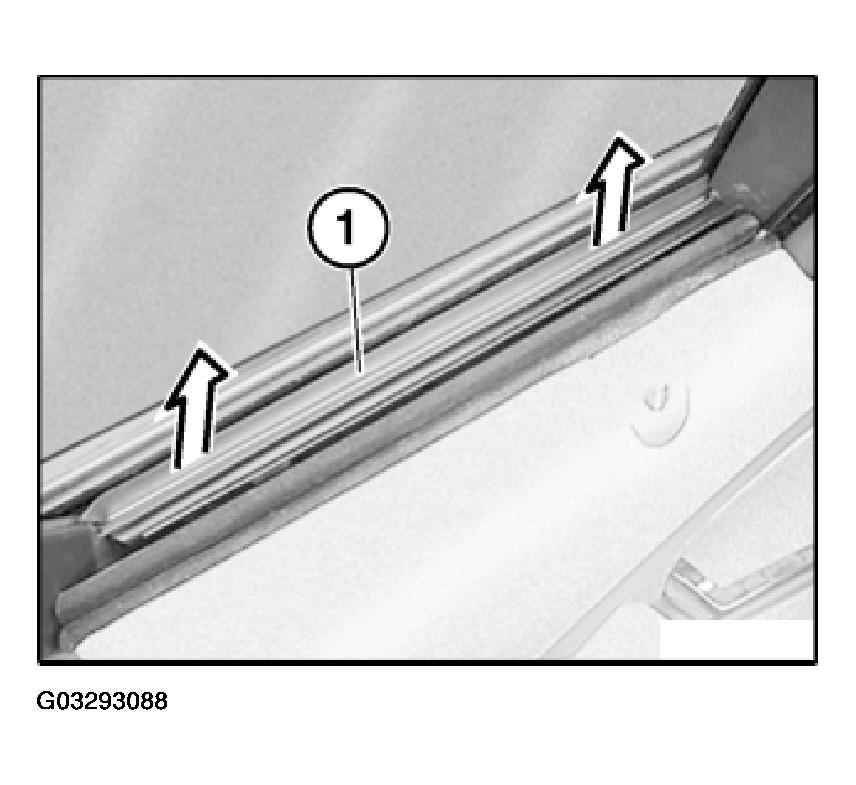

Fig 1: View Of Front Window Cavity Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Rear Window Cavity Seal:

Detach roller sun blind (1) from retainers (2).

Pull off rear seal (3) towards top.

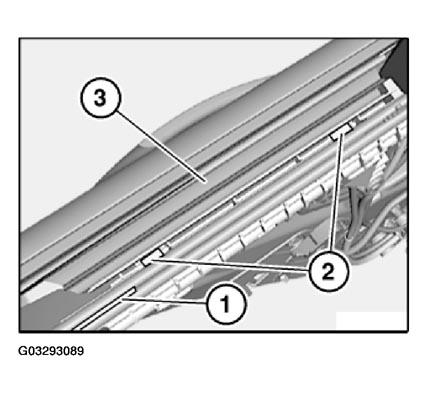

Fig 2: Locating Rear Window Cavity Seal

Courtesy of BMW OF NORTH AMERICA, INC.
