51 42 400 Removing And Installing/Replacing Chest Strip (Chrome Strip) On Left Or Right Rear Door (With Roller Sun Blind)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 317

Detach front chest strip (1) with special tool 00 9 317 in direction of arrow.

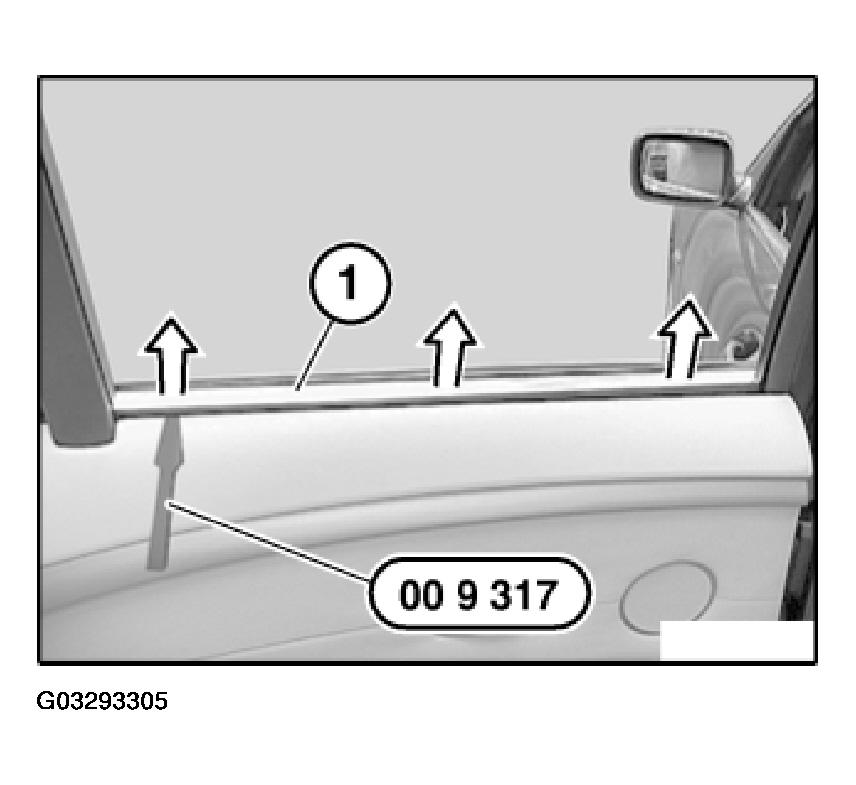

Fig 1: Removing Front Chest Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of chest strip (4) must not be damaged or missing:

Surface.
Aluminum insert for connecting flange.
Sealing brush.

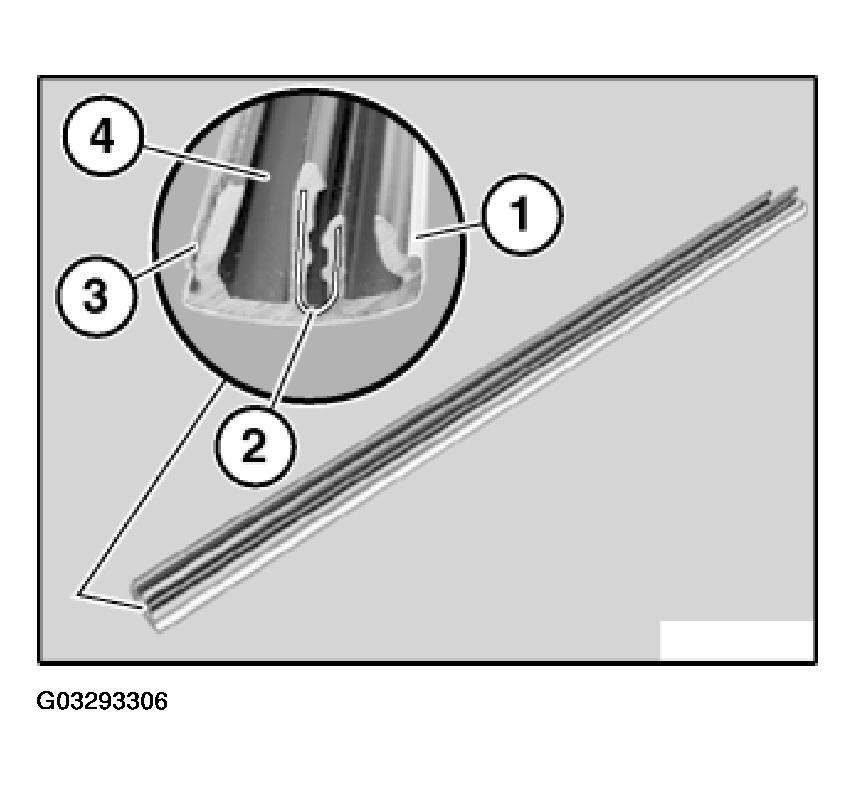

Fig 2: Identifying Chest Strip Components
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach chest strip correctly to flange (1).

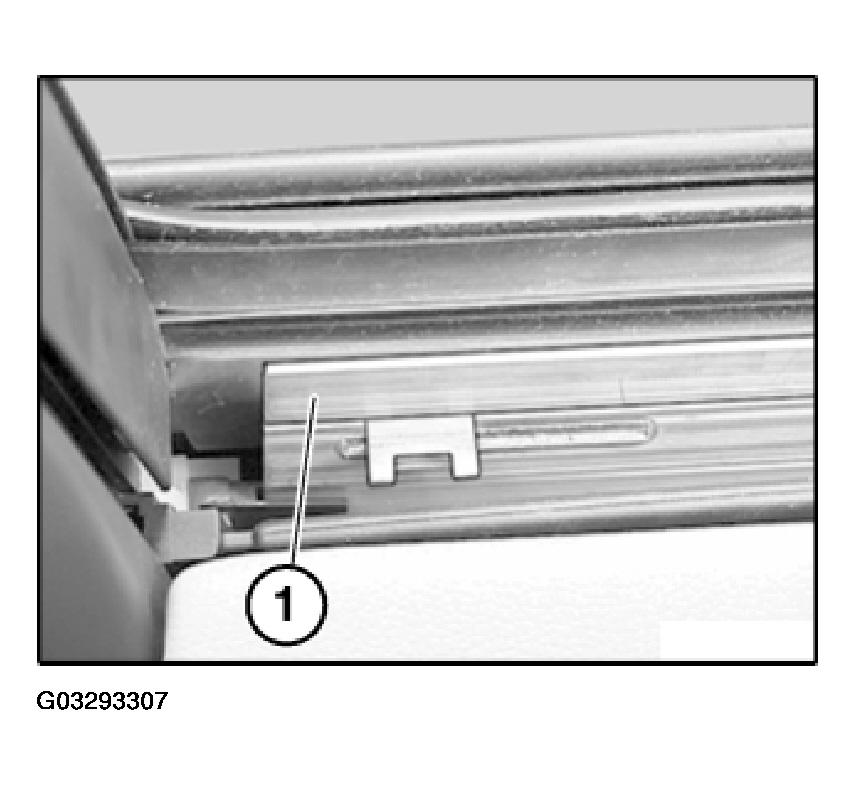

Fig 3: Attaching Chest Strip To Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rear chest strip (1) with special tool 00 9 317 in direction of arrow.

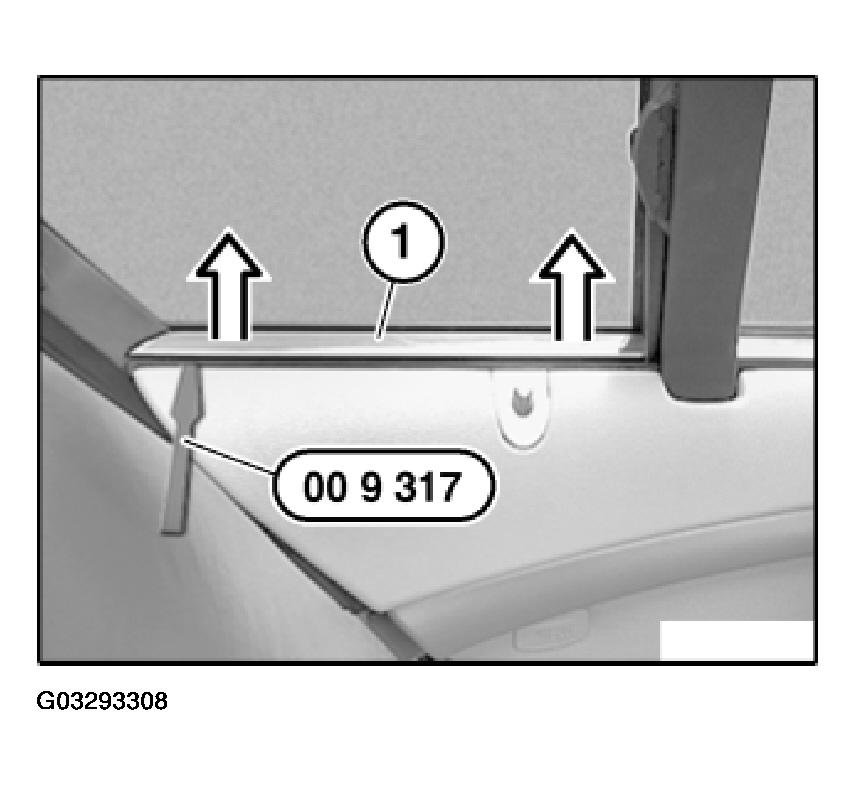

Fig 4: Detaching Rear Chest Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of chest strip (3) must not be damaged or missing:

Surface.
Aluminum insert for connecting flange.

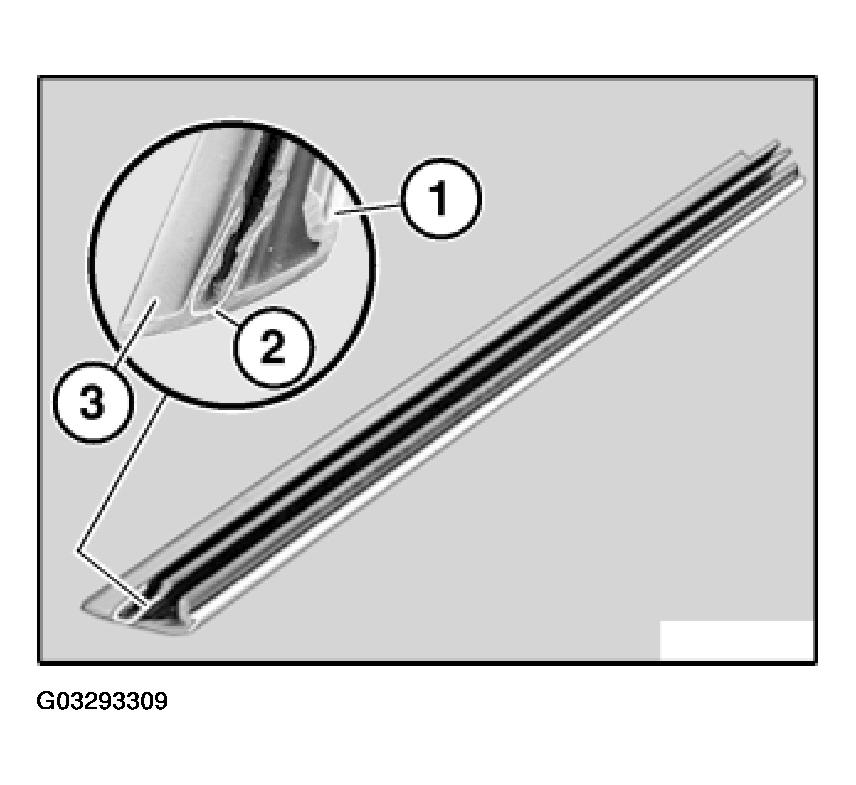

Fig 5: Inspecting Chest Strip
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach chest strip correctly to flange (1).

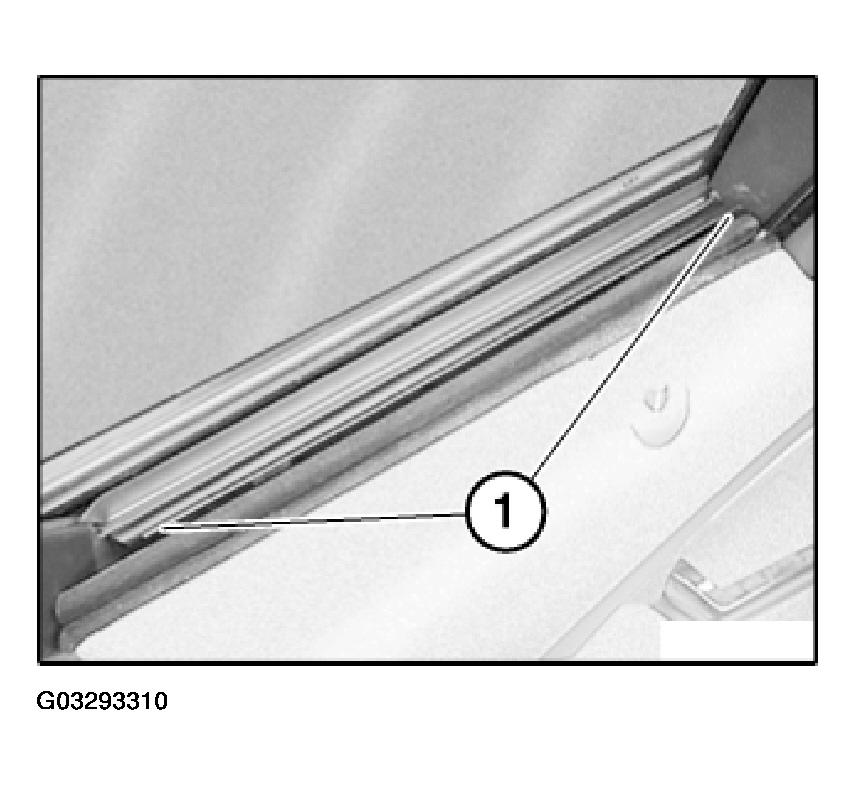

Fig 6: Attaching Chest Strip To Flange

Courtesy of BMW OF NORTH AMERICA, INC.
