66 20 518 Removing and installing/replacing a front ultrasonic transducer

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Version Up To 10/2003:

In bumper, center:

Lever out ultrasonic transducer (1) including holder.

In bumper, side:

Unclip side cover (2).

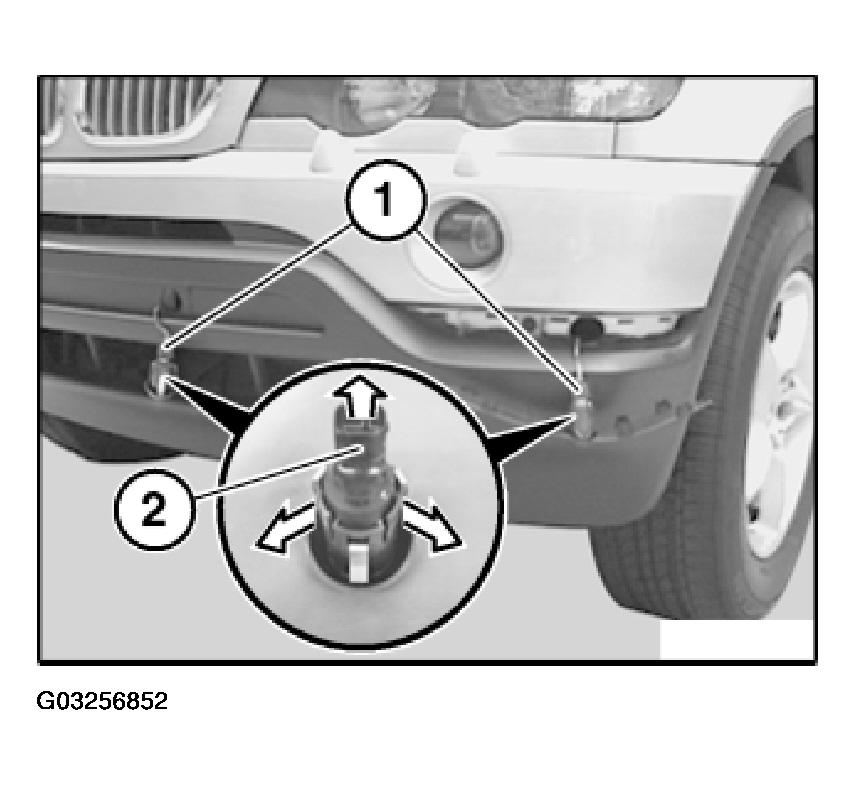

Fig 1: Levering Out Ultrasonic Transducer Including Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unclip ultrasonic transducer (2) and pull out of holder.

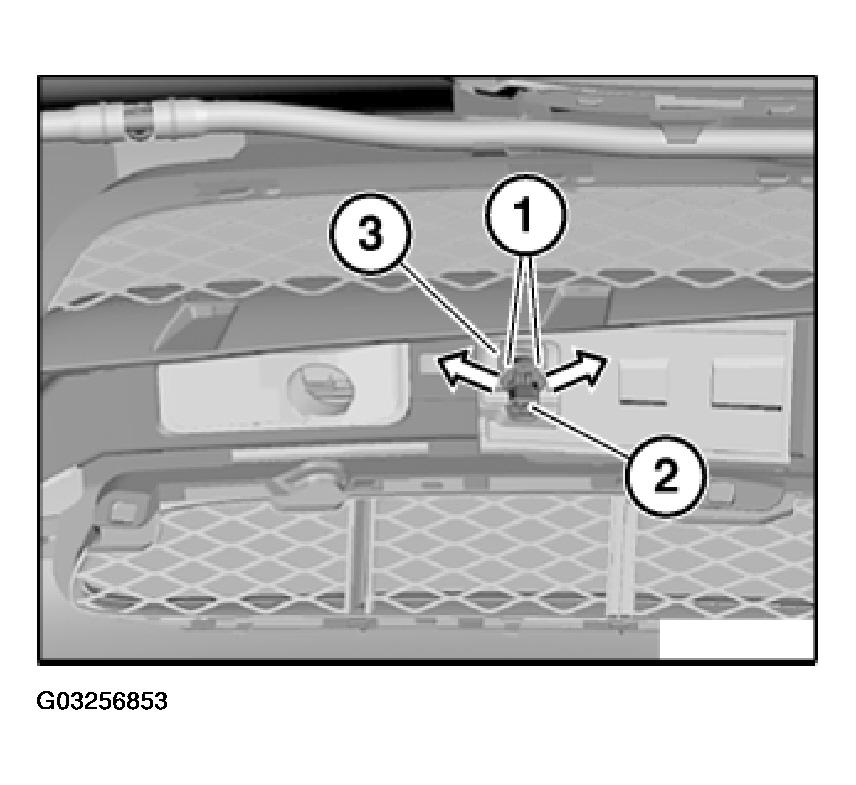

Fig 2: Unclipping Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.

Build Date From 10/2003:

Necessary Preliminary Tasks:

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM (FROM 10/03) .

Unlock catches (1) in direction of arrow and pull ultrasonic transducer (2) out of holder (3).

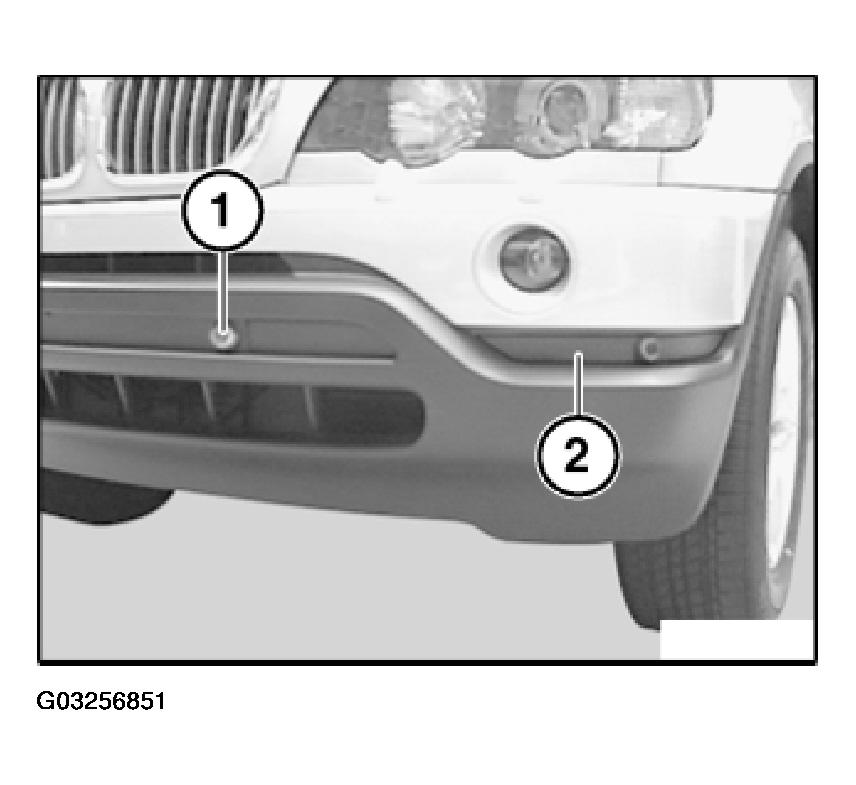

Fig 3: Removing Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).

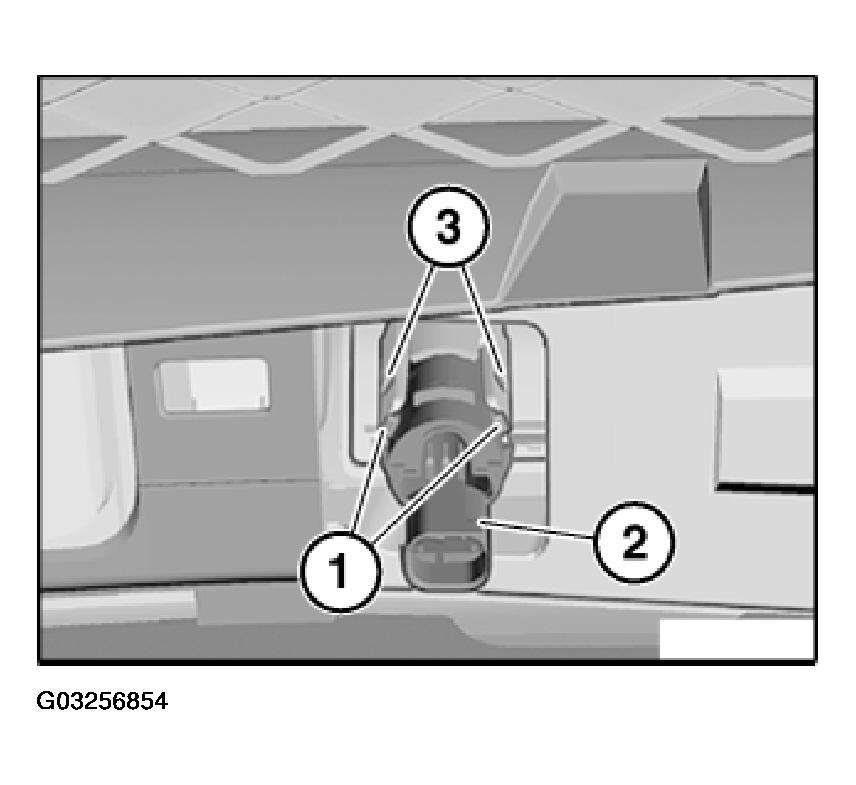

Fig 4: View Of Retaining Hooks Of Ultrasonic Transducer
