51 11 156 Removing and installing front bumper trim (up to 10/03)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Version With Headlight Cleaning System:

NOTE: Have a rubber plug on hand and, after detaching hose (3), seal pump outlet (4).

Detach cable tie (1) from hose (2).

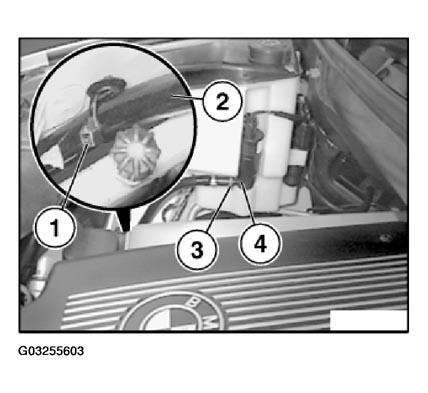

Fig 1: Removing Cable Tie From Hose

G03255603

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock hose (3), detach and seal pump outlet (4).

Release screws (1) on left/right and lift out wheel arch finishers (2) at side.

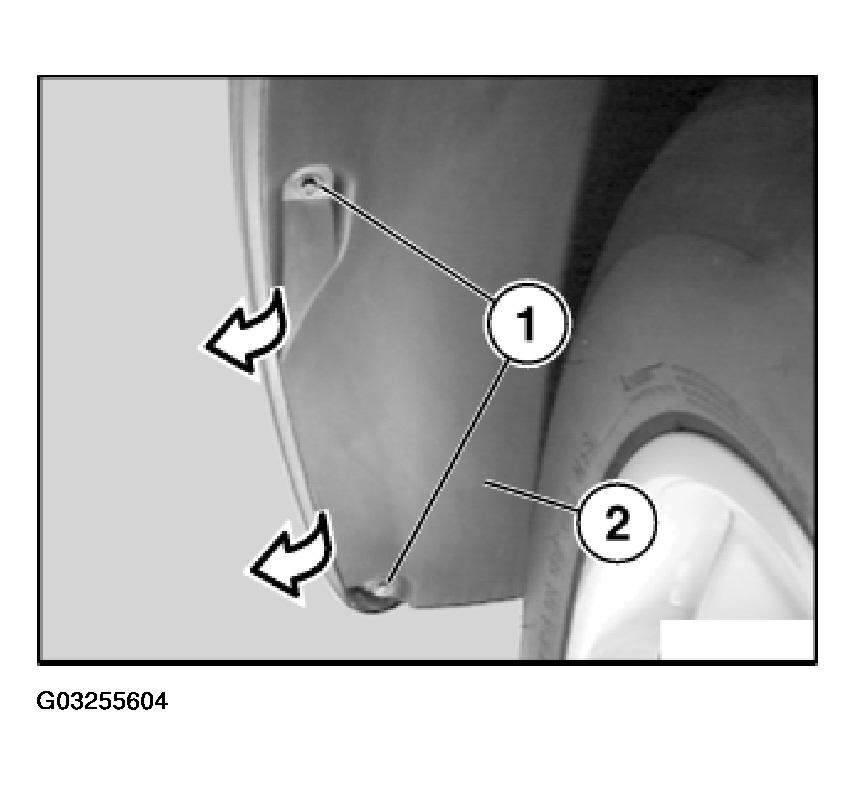

Fig 2: Releasing Screws On Wheel Arch Finishers

G03255604

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out finishers (1 and 2) on left/right and remove.

Version With Park Distance Control:

Disconnect plug connection on ultrasonic sensors (3) and remove finisher (2).

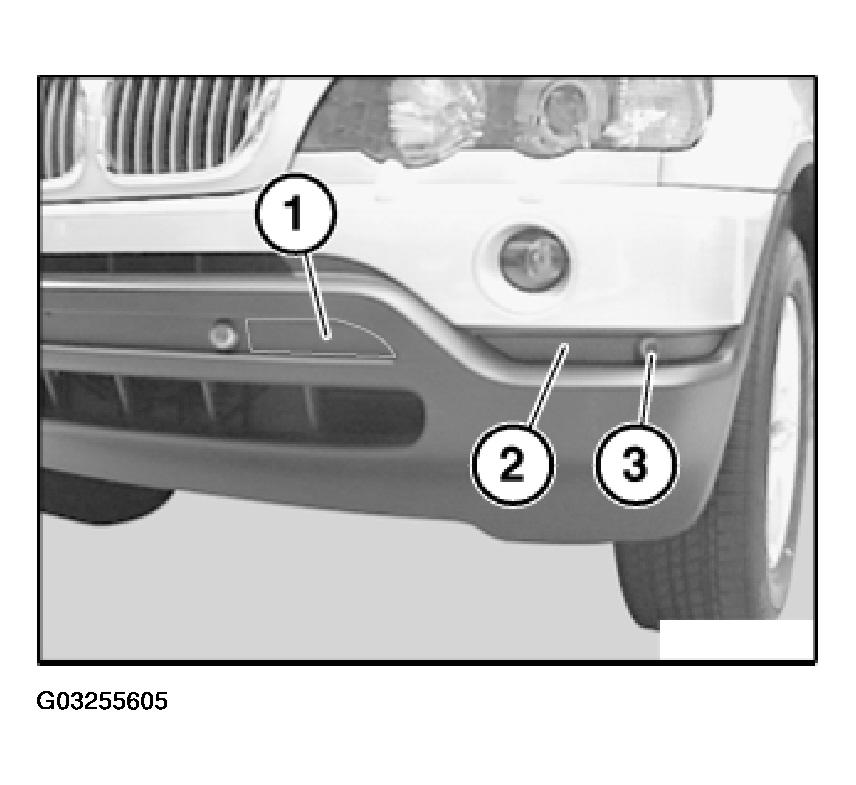

Fig 3: Disconnecting Plug Connection On Ultrasonic Sensors

G03255605

Courtesy of BMW OF NORTH AMERICA, INC.

Raise hood lid.

Release screws (1) on left/right.

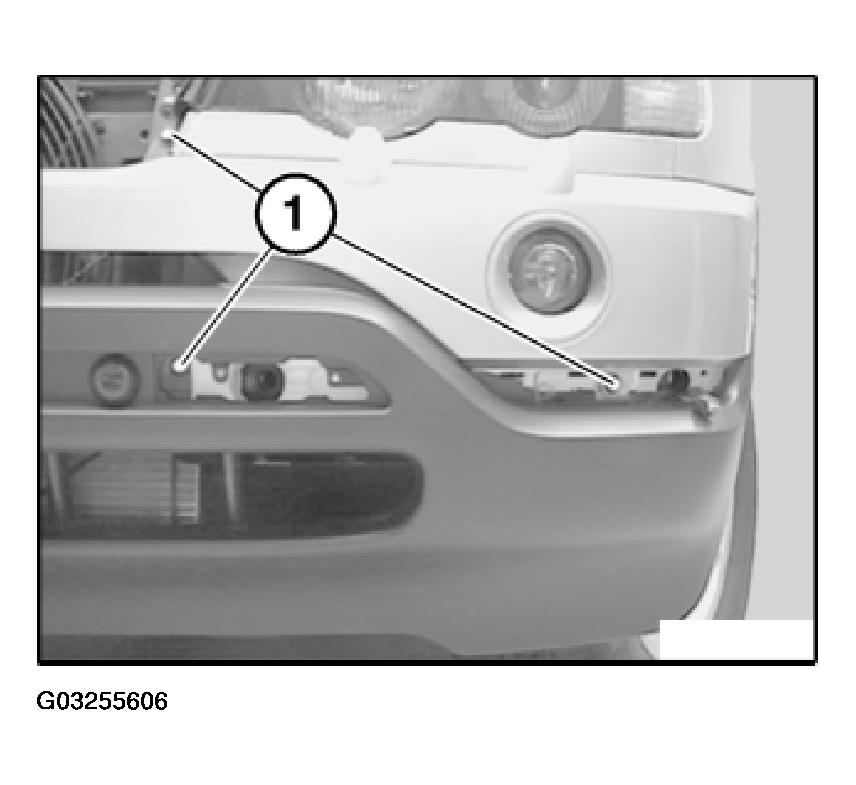

Fig 4: Locating Screws On Left And Right

G03255606

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Version With Park Distance Control And/Or Front Fog Lamps:

If necessary, pull bumper trim (2) forward a little and disconnect plug connections on ultrasonic sensors (3) and fog lamps (4).

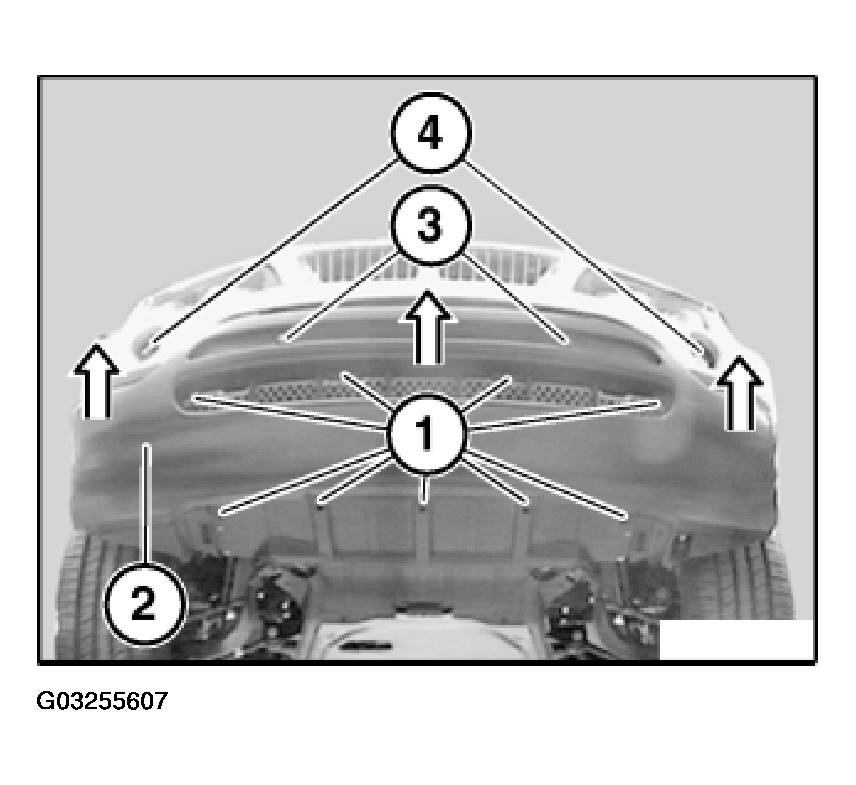

Fig 5: Locating Ultrasonic Sensors And Fog Lamps

G03255607

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off bumper trim (2) and set down on a clean surface.

Installation:

If necessary, replace faulty retainers (1) in carrier (2).

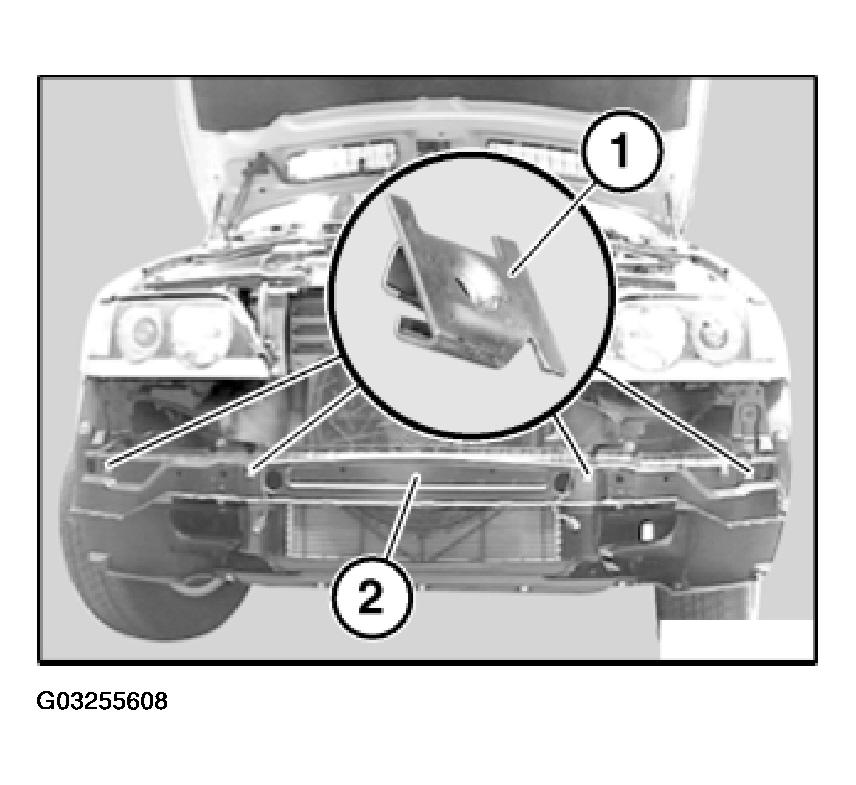

Fig 6: Identifying Retainers

G03255608

Courtesy of BMW OF NORTH AMERICA, INC.
