63 99 431 Replacing light bulb(s) for ceiling light

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Version With Inside Reading Lamps:

Remove complete ceiling light (with inside reading lamps). Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT .

Turn socket housing for bulb counterclockwise and remove.

Remove bulb.

NOTE:

Socket housing for left inside reading lamp.
Socket housing for ceiling light.
Socket housing for right inside reading lamp.

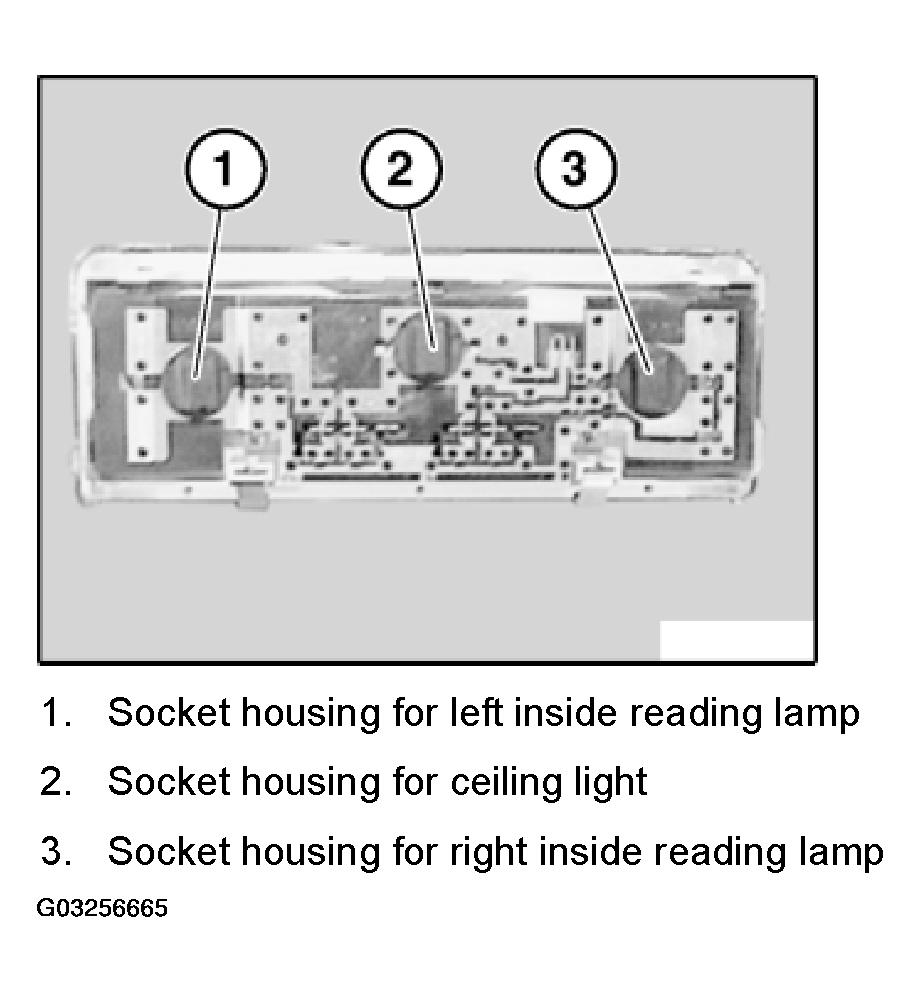

Fig 1: Identifying Socket Housing
Courtesy of BMW OF NORTH AMERICA, INC.

Version Without Inside Reading Lamps:

Remove complete ceiling light (without inside reading lamps).

Loosen screws (1).

Remove ceiling light (2) from lens underneath.

Remove bulb(s).

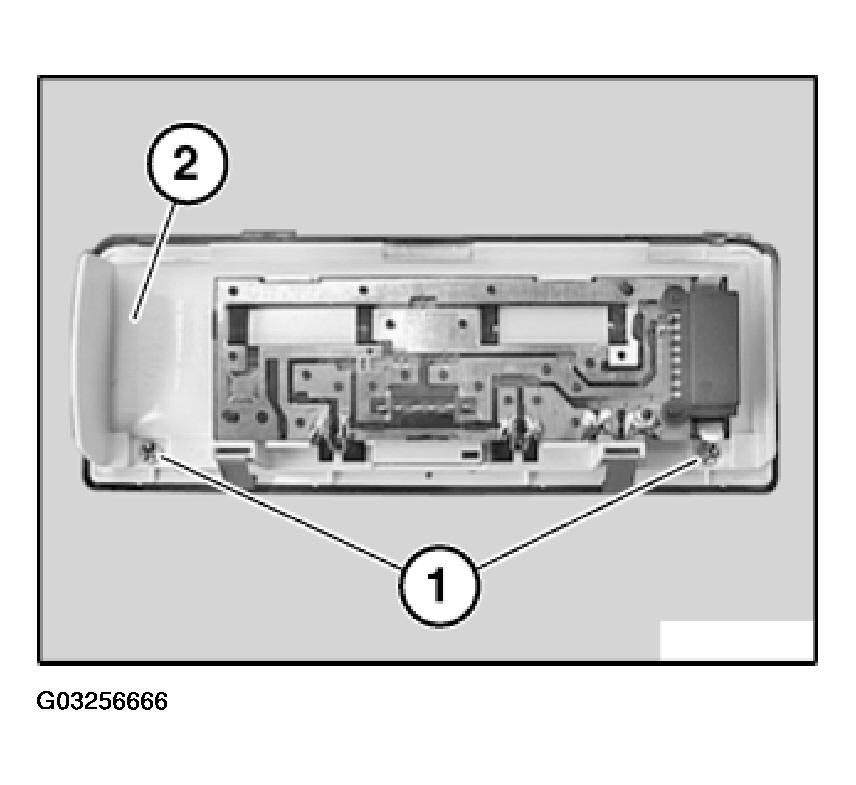

Fig 2: Removing Ceiling Light Lens Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Note type of bulb. Refer to 63 31 INTERIOR LIGHTS E53 .
