63 25 000 Removing and installing/replacing additional stop light

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear spoiler. Refer to 51 71 412 REMOVING AND INSTALLING REAR SPOILER .

Disconnect plug connection (1) and unclip plug.

Release screws (2) and remove auxiliary brake light (3).

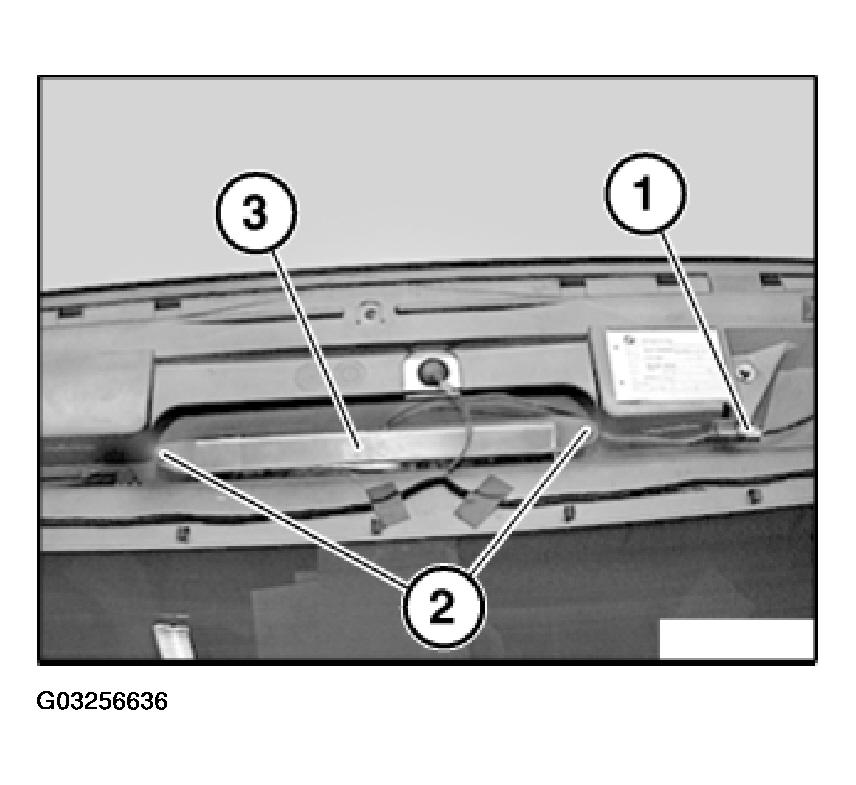

Fig 1: Removing Rear Spoiler
G03256636Courtesy of BMW OF NORTH AMERICA, INC.
