54 13 130 Removing and installing front cross-member

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove glass slide/tilt sunroof. Refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF .
Remove control unit for glass slide/tilt sunroof. Refer to 61 35 715 REMOVING AND INSTALLING/REPLACING ELECTRONIC CONTROL UNIT FOR SLIDE/TILT SUNROOF (PANORAMIC GLASS SUNROOF) .
Remove drive omitted. Refer to 67 61 515 REPLACING DRIVE WITH GEAR (FRONT) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMA GLASS SUNROOF) .

Release screws in marked area.

Feed cross-member (2) out of wiring harness (1) during removal.

If necessary, release fabric adhesive tape and replace.

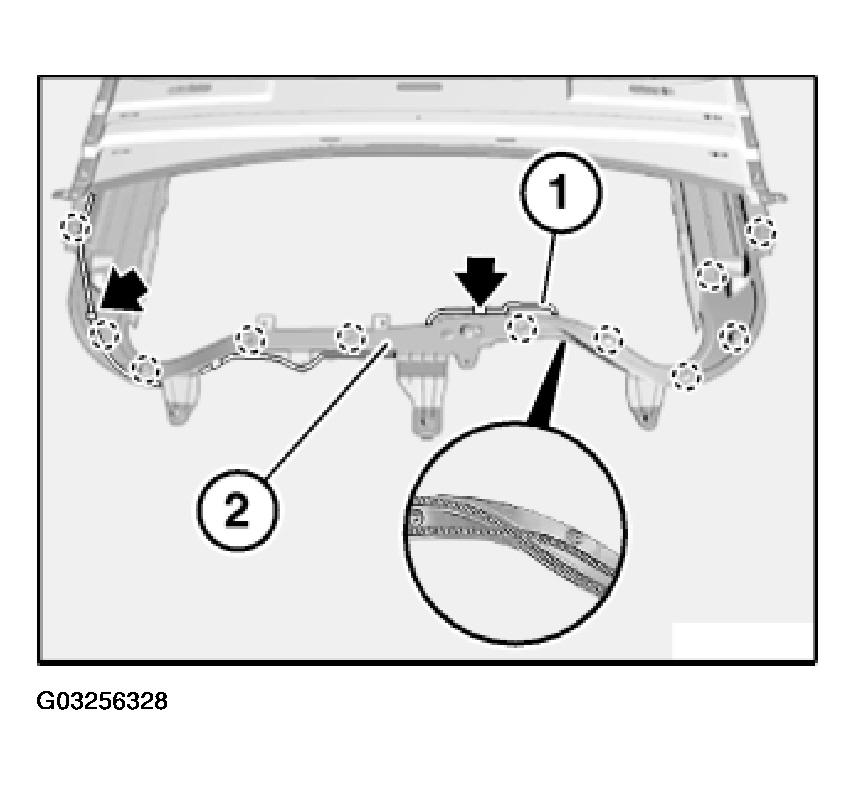

Fig 1: Feeding Cross-Member Out Of Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pitch cables must be correctly located in guide.
