54 12 220 Replacing control rail for left/right glass slide/tilt sunroof

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When replacing a control rail, always check the second control rail for signs of wear and always replace in pairs when required. If necessary, apply light coat of Renax GL 1 (Fuchs) grease to guide duct. Removing and installing complete slide/tilt sunroof (frame), refer to 54 12 210 REMOVING AND INSTALLING COMPLETE SLIDE/TILT SUNROOF (FRAME) Removing and installing headliner for glass slide/tilt sunroof cover, refer to 54 12 136 REMOVING AND INSTALLING / REPLACING HEADLINER FOR GLASS SLIDE/TILT SUNROOF COVER .

Slide control rail backwards.

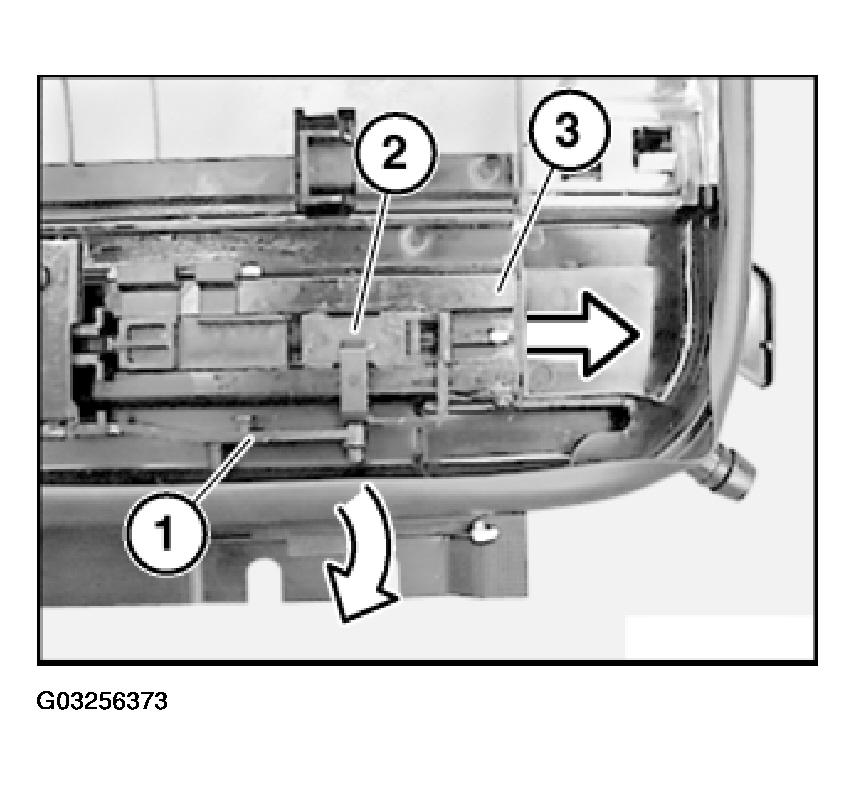

Lift linkage (1) off carriage (2) (support for gutter) and pull carriage (2) out of guide channel (3).

Fig 1: Pulling Carriage Out Of Guide Channel

G03256373

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

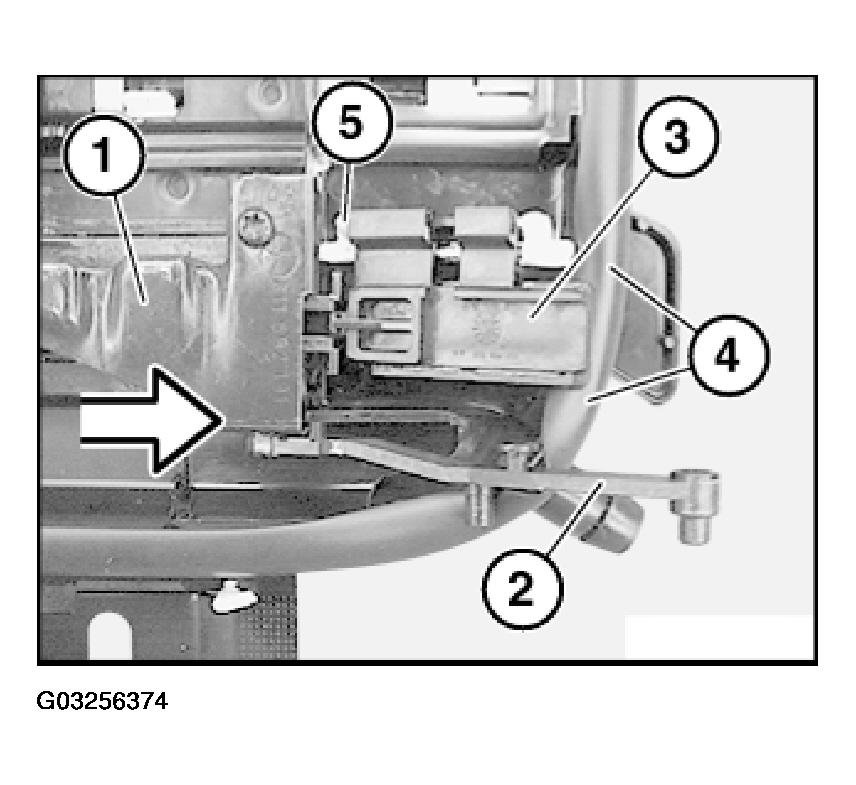

Slide control rail (1) backwards, lifting the linkage (2) and lifting lever (3) over the gasket (4).

NOTE: Only slide back until nipple (5) on drive cable emerges from guide channel.

Fig 2: Sliding Control Rail Backwards (Left)

G03256374

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

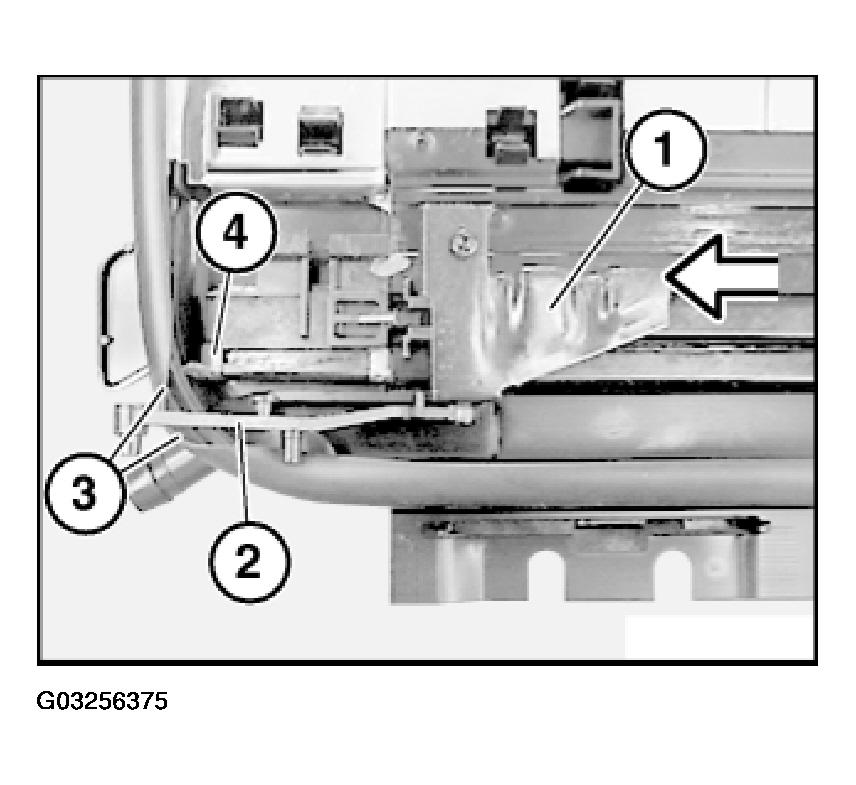

Slide control rail (1) backwards, lifting the linkage (2) over the gasket (3) at the same time.

NOTE: Only slide back until nipple (4) of the drive cable makes contact with the gutter.

Fig 3: Sliding Control Rail Backwards (Right)

G03256375

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

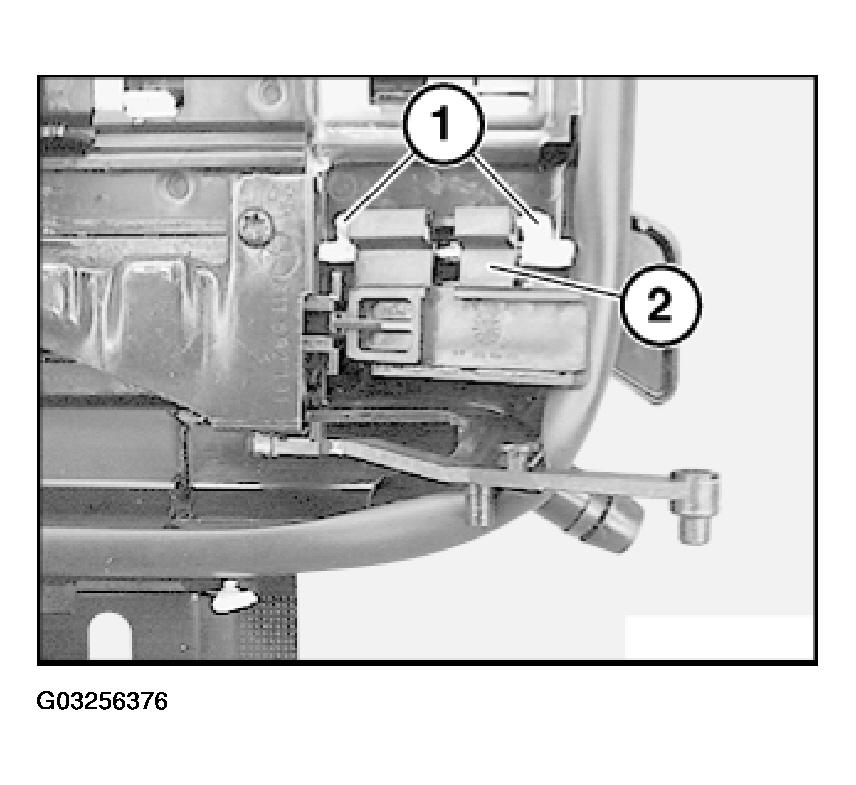

Unhook nipple (1) on drive cable from lifting lever (2) with plier tips.

Fig 4: Identifying Nipple And Lifting Lever

G03256376

Courtesy of BMW OF NORTH AMERICA, INC.

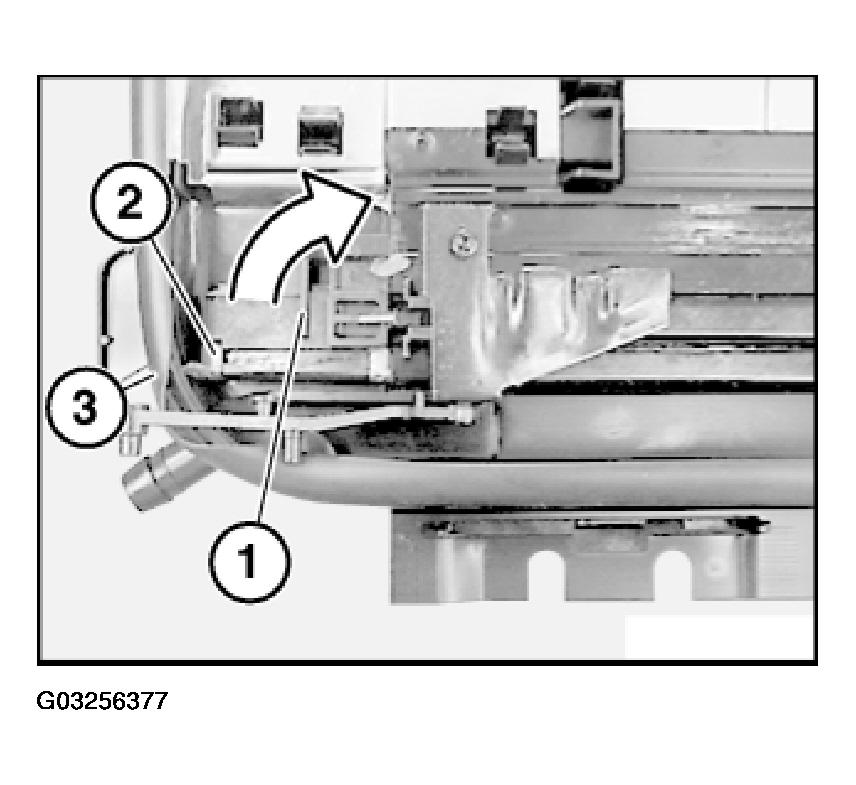

Right side:

Twist lifting lever (1) upwards.

Pull drive cable out slightly and lift over the gasket (3).

Fig 5: Twisting Lifting Lever Upwards

G03256377

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

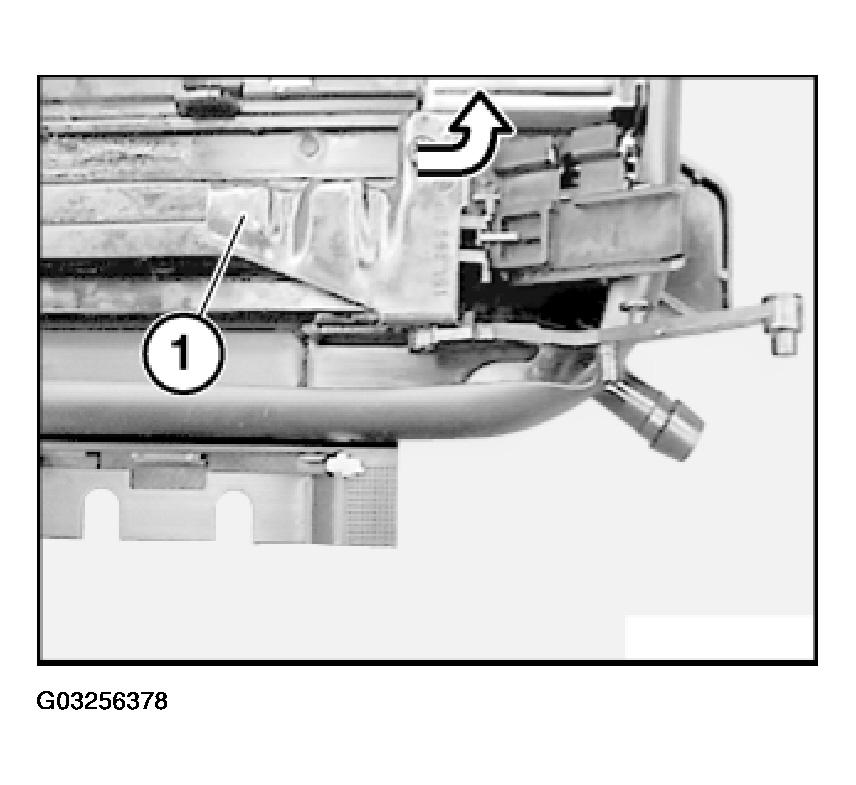

Slide control rail (1) backwards until guide on control rail (1) emerges from guide channel, then lift the control rail (1).

Fig 6: Aligning Control Rail (Left)

G03256378

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

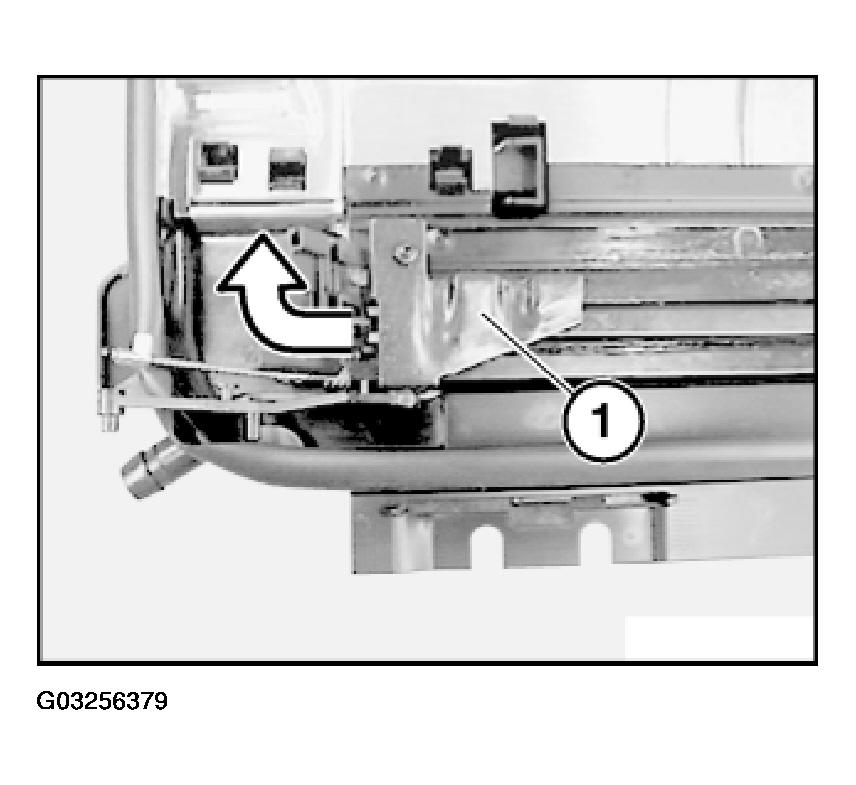

Slide control rail (1) backwards until the guide on the control rail (1) emerges from the guide channel, then lift the control rail (1).

Fig 7: Lifting Control Rail (Right)

G03256379

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

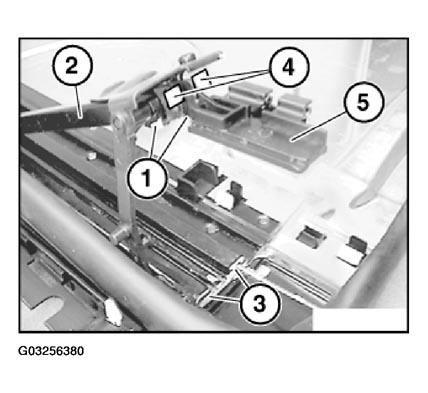

The guide (1) on the control rail (2) must run in the guide channel (3).

The guide (4) on the lifting lever (5) must run above the guide channel (3).

Fig 8: View Of Guide On Control Rail

G03256380

Courtesy of BMW OF NORTH AMERICA, INC.

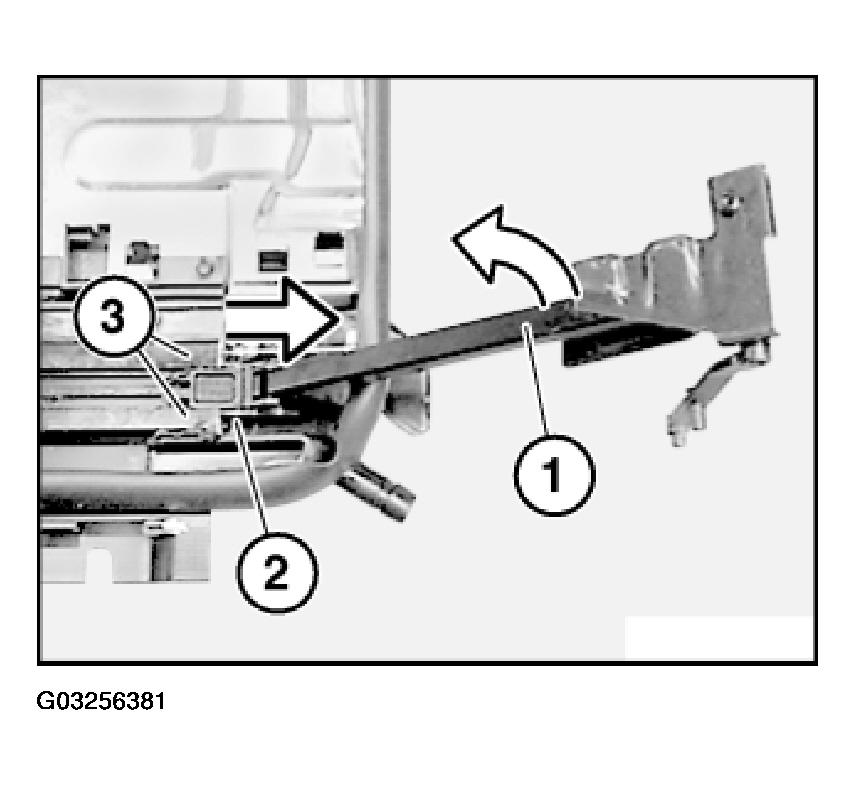

Lift control rail (1) and pull backwards out of guide channel (3) with sliding section (2).

Fig 9: Lifting Control Rail Out Of Guide Channel

G03256381

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjusting both drive cables for glass slide/tilt sunroof actuation, refer to 54 12 265 ADJUSTING BOTH DRIVE CABLES FOR ACTUATION OF GLASS SLIDE/TILT SUNROOF .

Check function.
