54 12 210 Removing and installing complete slide/tilt sunroof (frame)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove water drain hoses (1) at front/rear.

Unfasten Omega clips (2).

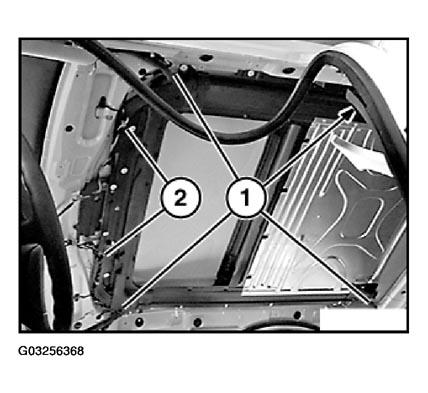

Fig 1: Locating Omega Clips And Water Drain Hoses

G03256368

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) at front and (2) at left/right.

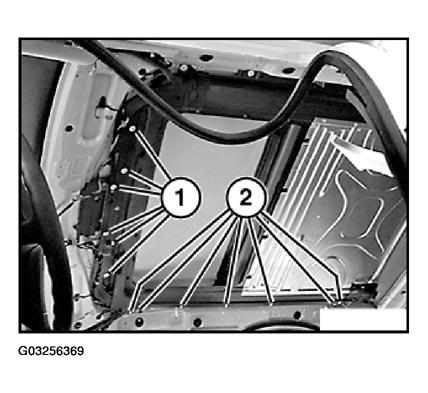

Fig 2: Identifying Screws At Front And Left/Right

G03256369

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook left/right clip and lower slide/tilt sunroof frame slightly.

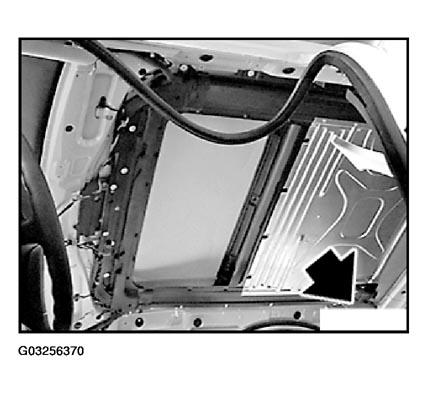

Fig 3: Lowering Slide/Tilt Sunroof Frame

G03256370

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fold up back of frame until rear clips can be unfastened.

Slide slide/tilt sunroof frame backwards and lift out through right rear door.

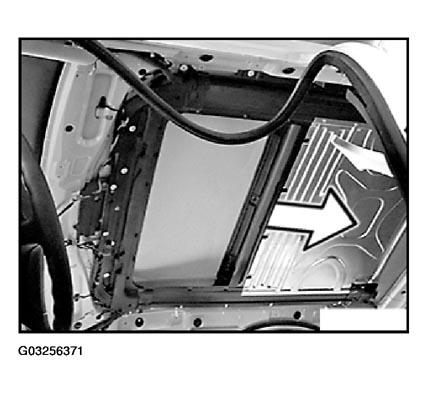

Fig 4: Sliding Slide/Tilt Sunroof Frame Backwards

G03256371

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert slide/tilt sunroof frame in sheet metal slot at front.

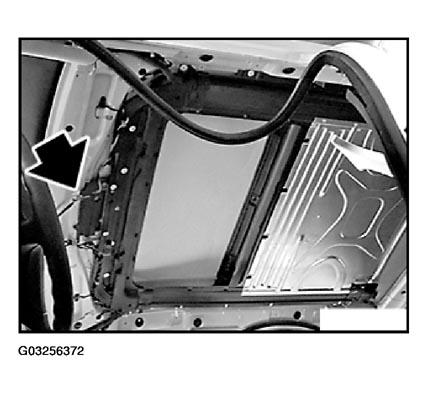

Fig 5: Inserting Slide/Tilt Sunroof Frame In Sheet Metal Slot

G03256372

Courtesy of BMW OF NORTH AMERICA, INC.
