52 26 ... Removing and installing/replacing ski bag with cassette on rear seat (through-loading system) (Touring)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove center armrest. Refer to 52 26 030 REMOVING AND INSTALLING/REPLACING ARMREST FOR REAR-SEAT BACKREST (THROUGH-LOADING SYSTEM) .

Open cover at rear.

Unscrew bolt (1).

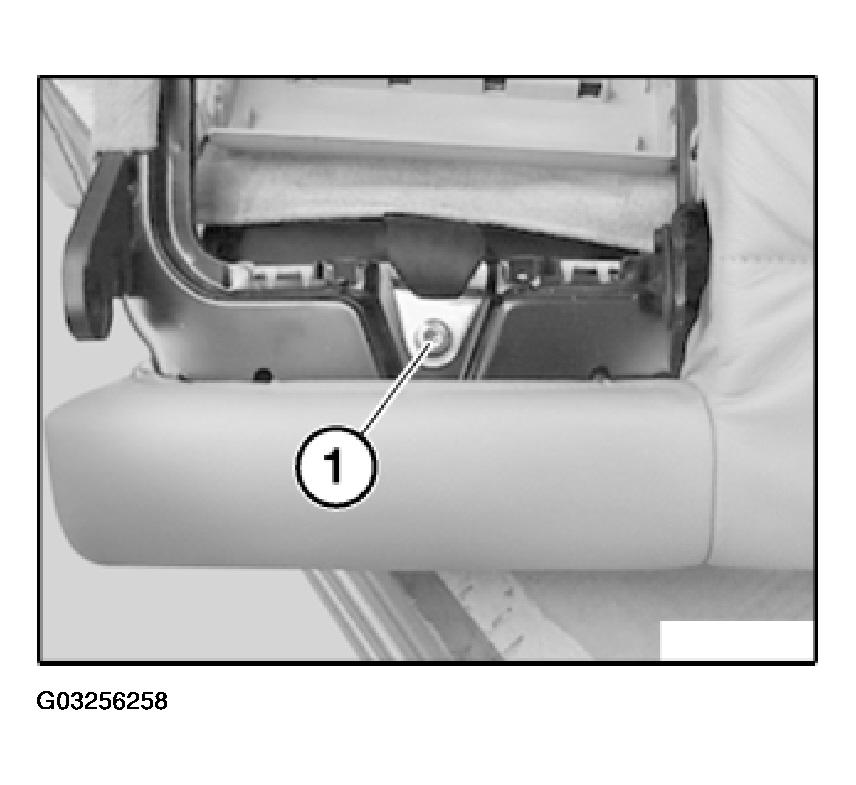

Fig 1: Unscrewing Bolt Under Rear Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Bend central metal element (1) at foot of ski bag towards front at bottom.
Unlock seat back and gently tilt forwards.
Carefully press together clip feet (2) of cassette and remove cassette towards rear at bottom, paying attention to clips at side and top.

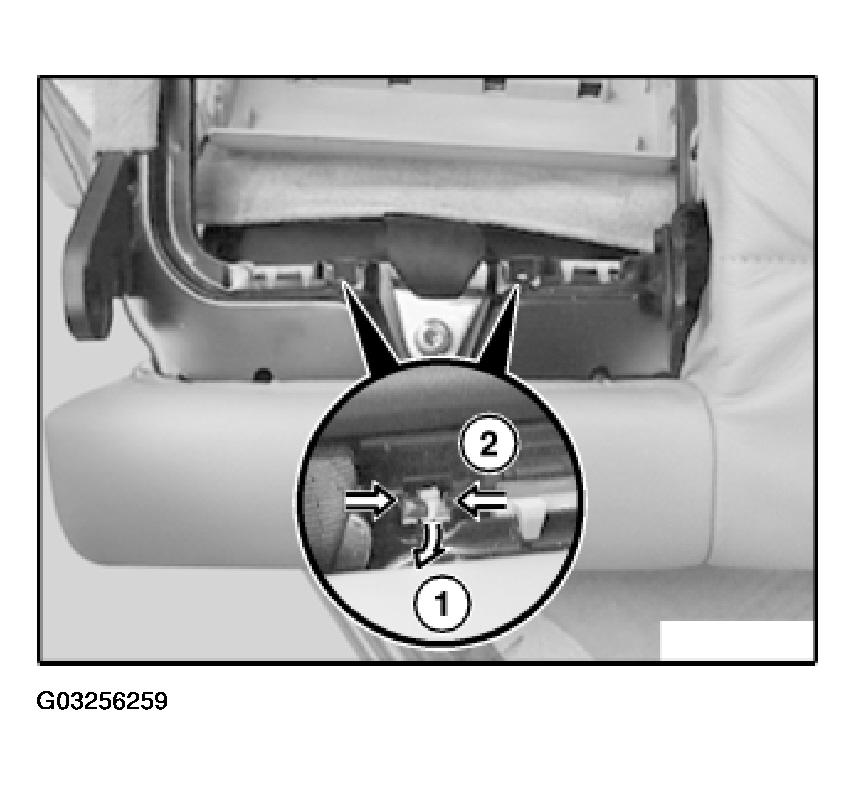

Fig 2: Locating Central Metal Element And Clip Feet Of Cassette

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip feet must not be damaged.

Unclip cover at rear towards top.

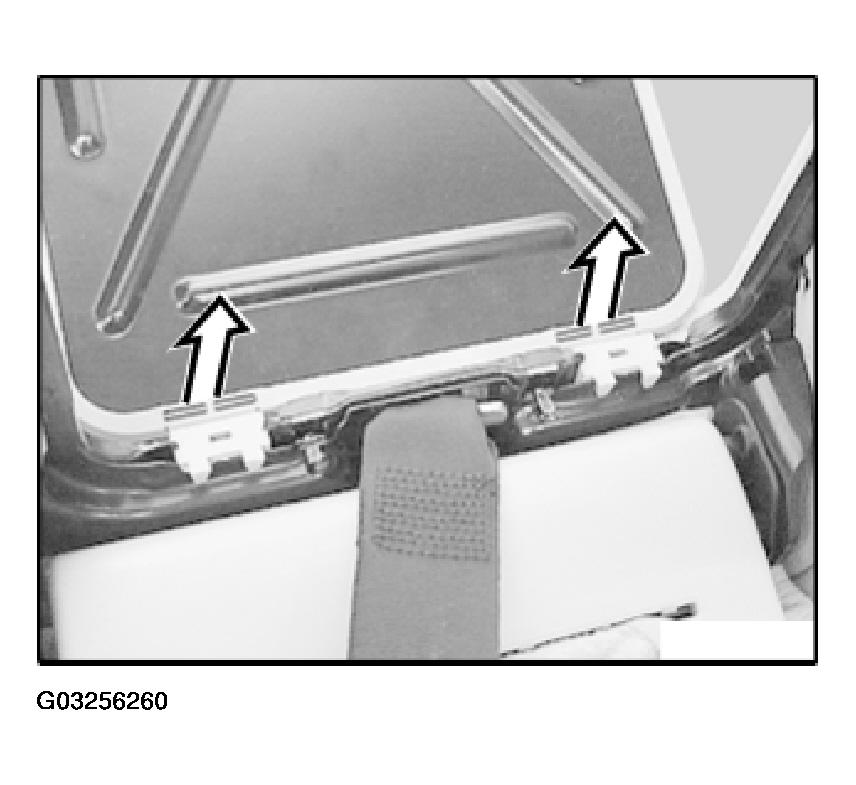

Fig 3: Unclipping Cover At Rear Top

Courtesy of BMW OF NORTH AMERICA, INC.
