52 13 050 Replacing lumbar cushion on front left or right seat

Carry Out Following Tasks Beforehand:

Removing rear panel on front seat backrest:

• Basic seat. Refer to 52 13 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL)  .

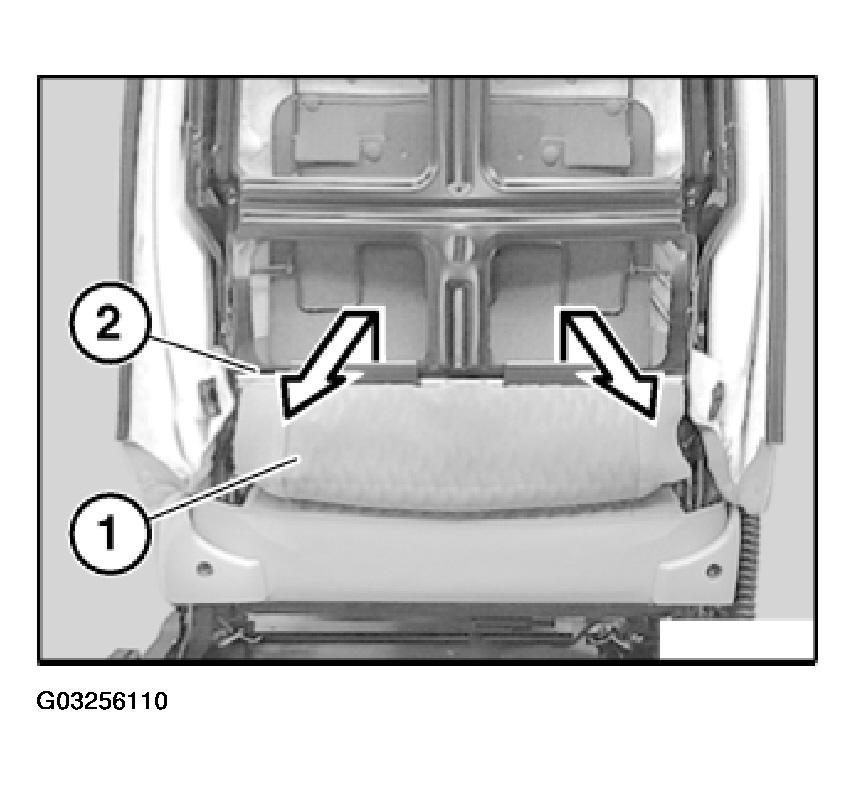

Detach backrest cover (1) from backrest frame (2).

Fig 1: Detaching Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

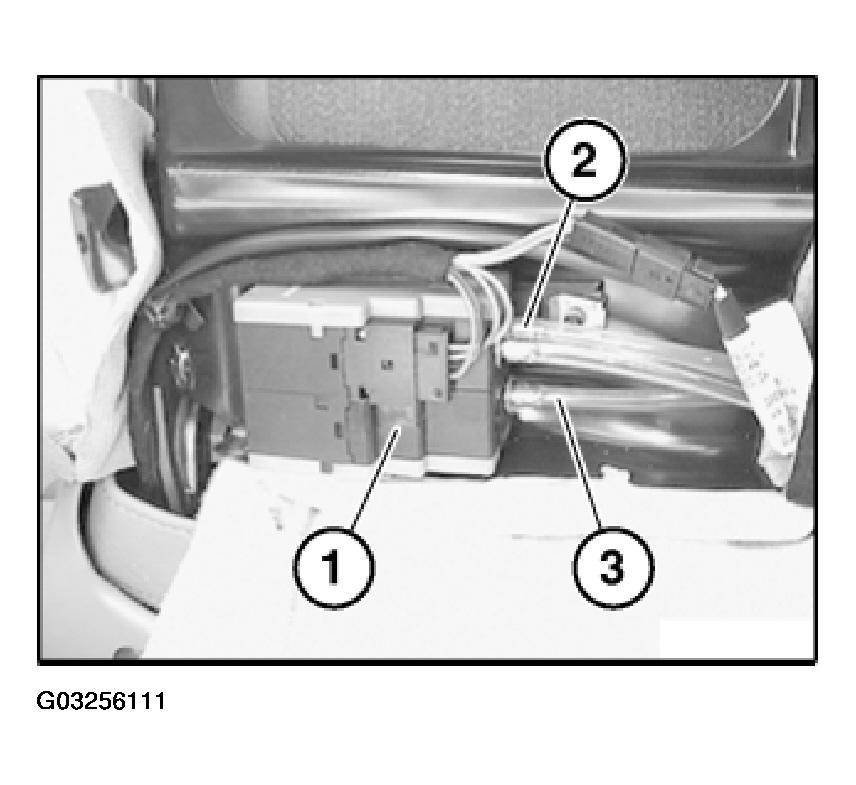

Disconnect hoses (2) and (3) from valve housing (1).

(2) Hose (blue) top cushion

(3) Hose (red) bottom cushion

Fig 2: Disconnecting Hoses From Valve Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Air hoses (2) and (3) must be laid without kinks.

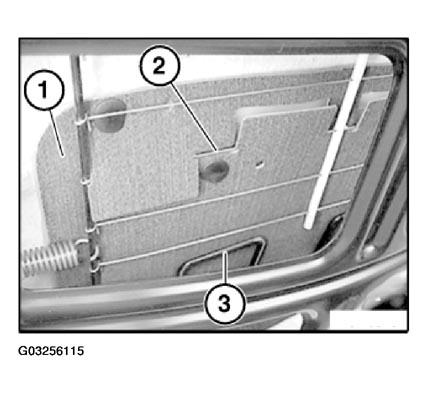

Unhook lumbar cushion (1) from spring wire (2).

Version with seat heating:

Slide cable (3) for backrest heating to one side a little.

Fig 3: Unhooking Lumbar Cushion From Spring Wire

Courtesy of BMW OF NORTH AMERICA, INC.

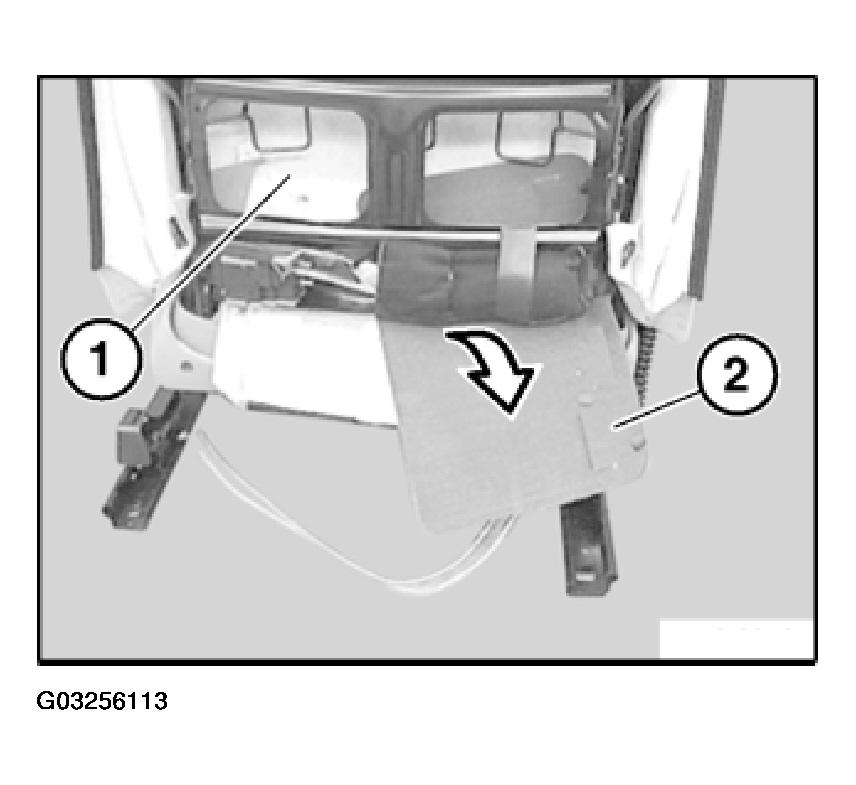

Press back support (1) a little.

Turn lumbar cushion (2) and pull out downwards.

Fig 4: Aligning Lumbar Cushion Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

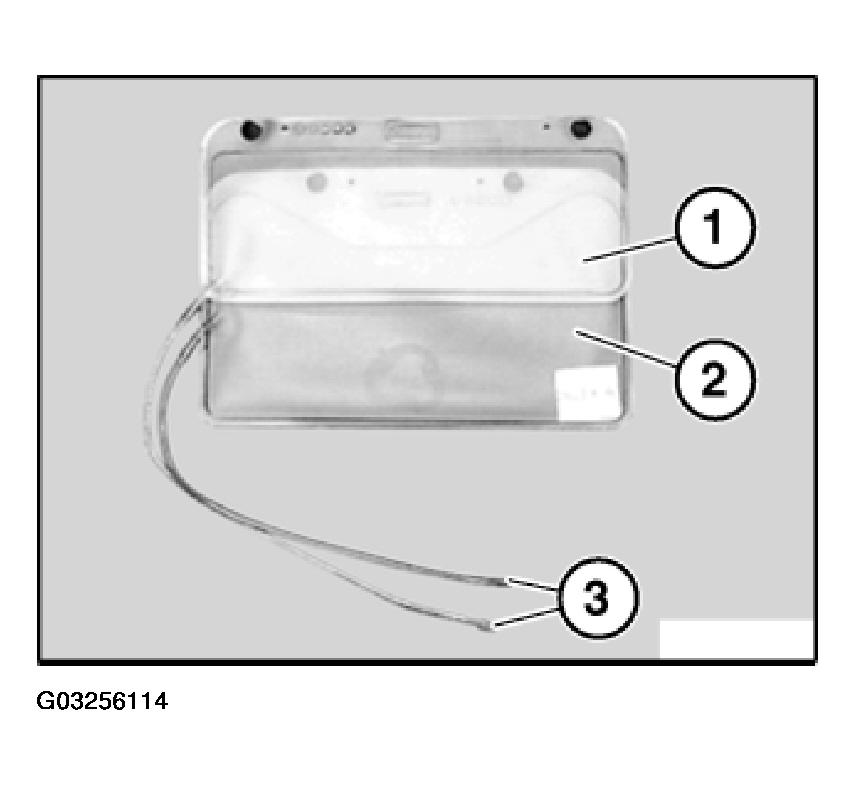

Check lumbar cushion (1) at top and (2) bottom for damage.

Air hoses (3) must not be kinked.

Fig 5: Identifying Inspection Areas On Lumbar Cushion

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

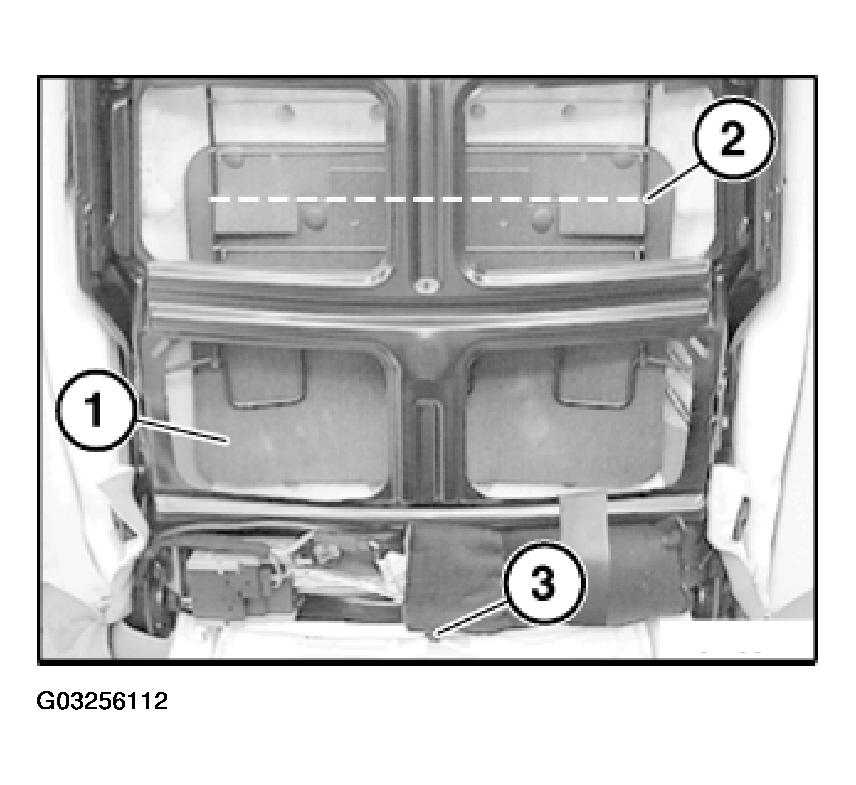

Attach lumbar cushion (1) to third wire (2) above spring (3).

Fig 6: Attaching Lumbar Cushion To Third Wire

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe cable guide (1) for backrest heating.

Lay air hoses (2) without kinks through hole (3).

Fig 7: Installing Air Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check function.
