51 24 120 Removing and installing/replacing left or right lock for rear lid lower section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for rear lid lower section. Refer to 51 49 090 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LID LOWER SECTION .

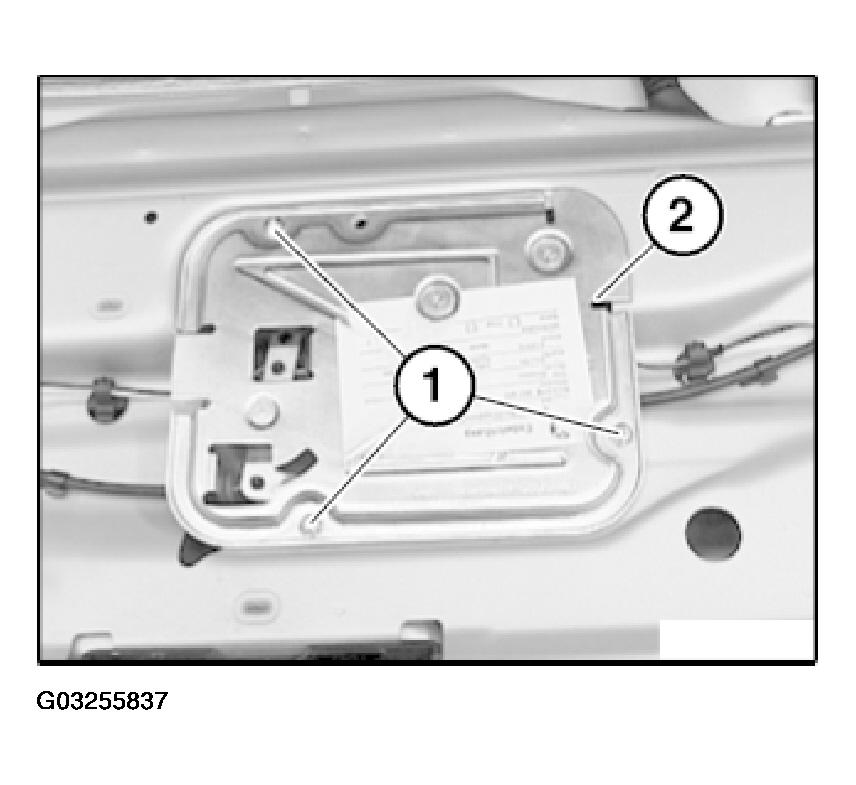

Release screws (1) on drive (2).

Fig 1: Removing Screw On Drive

Courtesy of BMW OF NORTH AMERICA, INC.

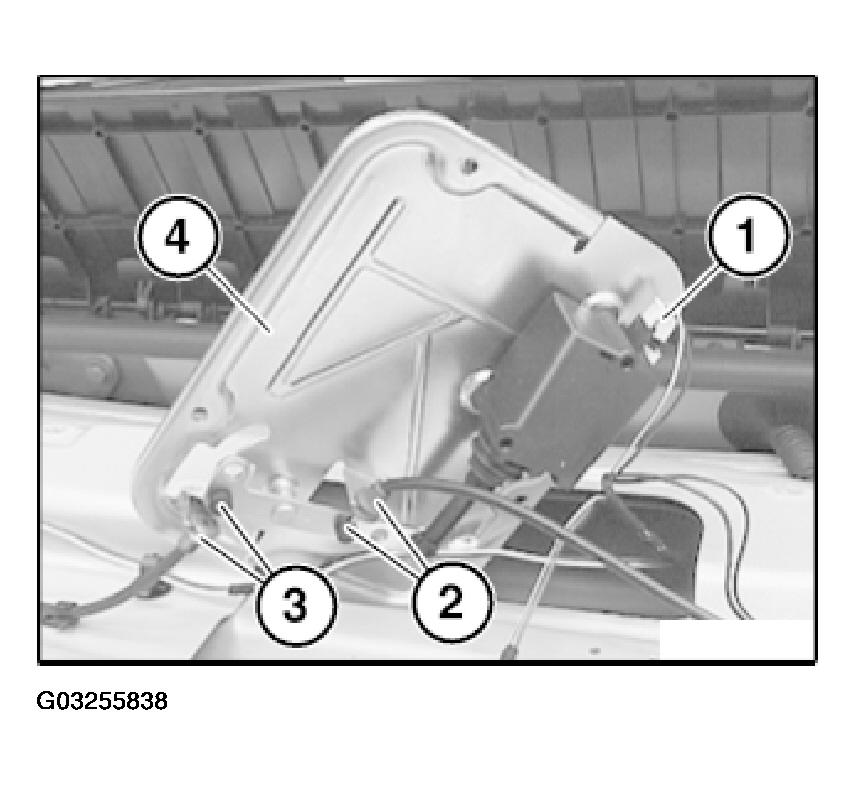

Unfasten plug connection (1).

Fig 2: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out Bowden cable (2) from right lock and (3) from left lock and remove drive (4).

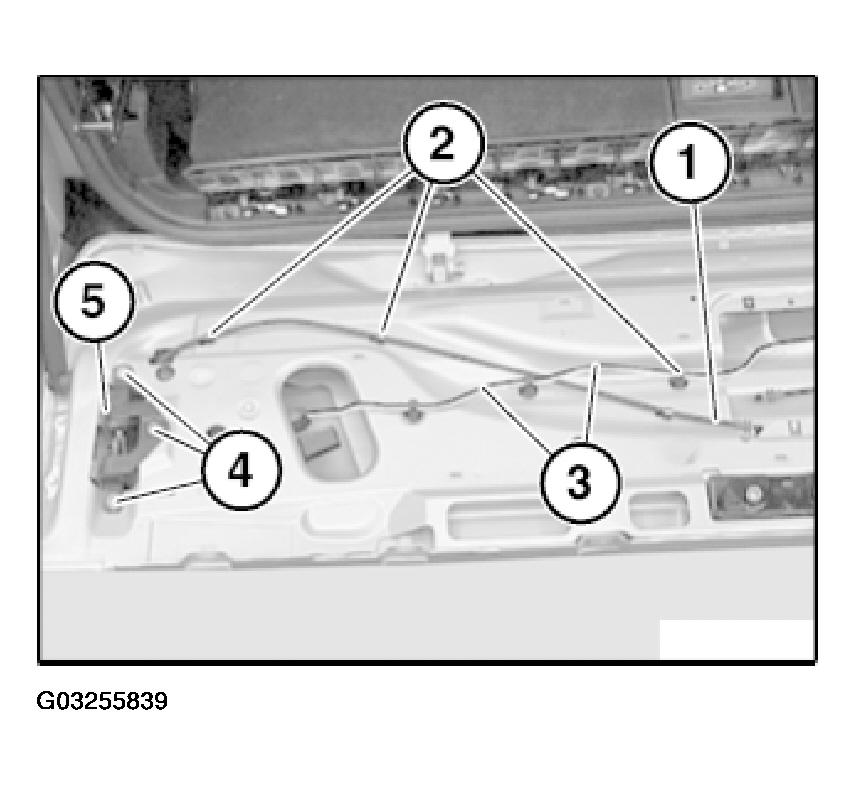

Unclip Bowden cable (1) from holders (2).

Fig 3: Unclipping Bowden Cable From Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (4) and remove left or right lock (5).

Installation:

Lay Bowden cable (1) under cable (3).

Installation:

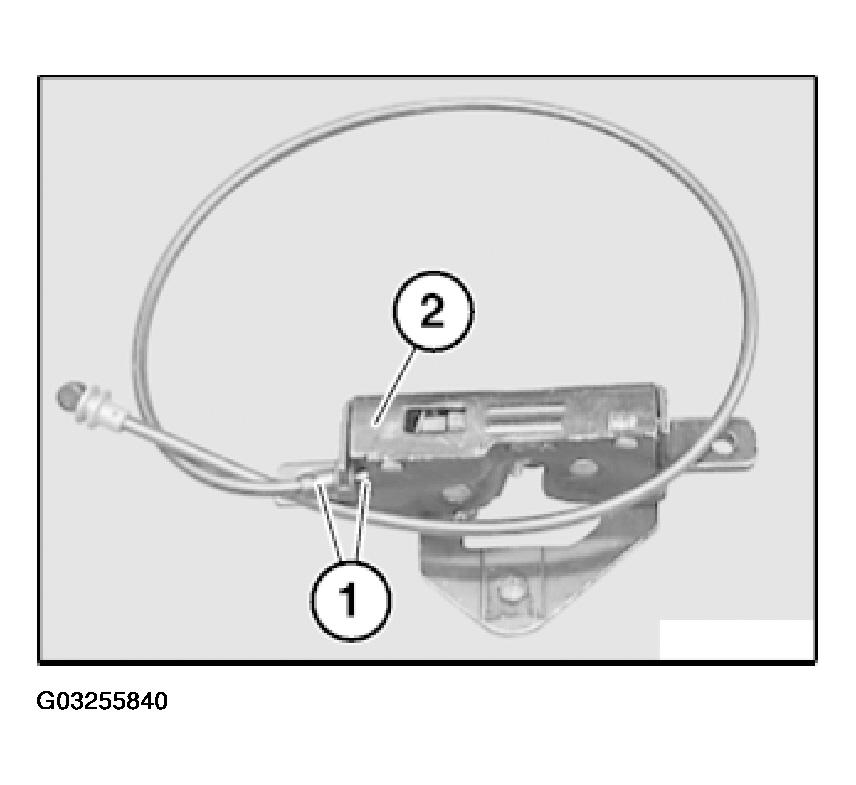

Bowden cable (1) must engage correctly in lock (2).

Fig 4: Identifying Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
